Published by Zorapid
For manufacturers of complex rotary parts—think aerospace turbine shafts, medical implants, or automotive transmission components—the old way of doing business is a costly bottleneck. You design a part, send it to a shop for turning, then ship it to another for milling, and maybe a third for grinding. Each transfer adds time, cost, and the risk of human error stacking up. Tolerances drift, deadlines slip, and your profit margin takes a hit.
At Zorapid, we’ve eliminated that headache. Our Turn-Mill & 5-Axis All-In-One machining centers combine the power of CNC turning, live tooling milling, and full 5-axis contouring in a single, high-precision setup. This isn’t just about buying a fancy machine; it’s about redefining the entire production workflow for complex parts.
This blog will dive deep into how our integrated solution outperforms traditional methods and even other multi-tasking machines on the market. We’ll cover the technical nitty-gritty, real-world case studies, and why partnering with Zorapid isn’t just a purchase—it’s a strategic advantage.
Professional Process Technical Analysis
How Zorapid’s Turn-Mill & 5-Axis All-In-One Works
The magic lies in the integration. Here’s a breakdown of the process:
- Single Setup, Zero Re-Clamping: The entire part is machined from a single billet or bar in one continuous operation. No more removing the part, inspecting it, setting it up on a different machine, and hoping everything aligns. This eliminates the biggest source of error: cumulative tolerance stack-up.
- CNC Turning with Live Tooling: The machine starts by roughing out the cylindrical profile using high-performance turning tools. But unlike a standard lathe, our live tooling station allows for precise milling operations (drilling, tapping, slotting, cross-milling) while the part remains on the main spindle.
- Full 5-Axis Contouring: For complex, non-critical geometries (like turbine blade profiles, helical flutes, or sculpted medical implant surfaces), the part is transferred to a secondary, tilting rotary spindle (the B-axis). This allows the cutting tool to approach the part from any angle, creating true 5-axis simultaneous machining.
- In-Process Metrology & Closed-Loop Control: Our machines are equipped with high-precision touch probes and laser scanners. These measure the part during the machining process, feeding real-time data back to the control system. If a deviation is detected, the tool path is automatically adjusted to correct it, ensuring the final part meets your exact specifications.
- Automated Part Handling & Lights-Out Operation: For high-volume production, our systems can be integrated with robotic arms and gantries for fully automated part loading/unloading and palletizing. This enables lights-out manufacturing, maximizing machine utilization and reducing labor costs.
Core Performance Benchmarks vs. Competitors & Traditional Methods
| Metric | Traditional Multi-Shop Process | Standard Turn-Mill (No 5-Axis) | Zorapid Turn-Mill & 5-Axis All-In-One |
|---|---|---|---|
| Setup Time | 4-8 hours (multiple setups) | 1-2 hours | 30-60 minutes |
| Total Production Time (Typical Part) | 24-72 hours | 12-24 hours | 4-8 hours |
| Tolerance Stack-Up Risk | Very High (cumulative errors) | Medium | Eliminated (single setup) |
| Typical Tolerance Achieved | ±0.02 mm | ±0.01 mm | ±0.005 mm (GD&T certified) |
| Surface Roughness (Ra) | 1.6-3.2 μm | 0.8-1.6 μm | 0.2-0.4 μm |
| Material Waste | 15-25% | 10-15% | 5-8% |
| Operator Labor Cost | High (multiple machines/operators) | Medium | Low (one operator, lights-out capable) |
| First-Pass Yield | 75-85% | 85-90% | 95-99% |
Competitor Weak Points Zorapid Solves
- Limited Capability: Many multi-tasking machines on the market are just lathes with a few milling tools. They lack the full 5-axis B-axis spindle needed for true complex geometry.
- Fragile Live Tooling: Competitors’ live tooling stations are often underpowered and prone to vibration, limiting their effectiveness for heavy milling or high-precision work.
- No Integrated Metrology: Most machines require manual inspection after machining, adding time and the risk of human error.
- Basic Control Software: Their software often struggles to synchronize the multiple axes and tooling stations, leading to longer cycle times and potential crashes.
Parts Other Manufacturers Cannot Produce — Zorapid Custom Solutions
The Unmanufacturable Pain Points for Standard Shops

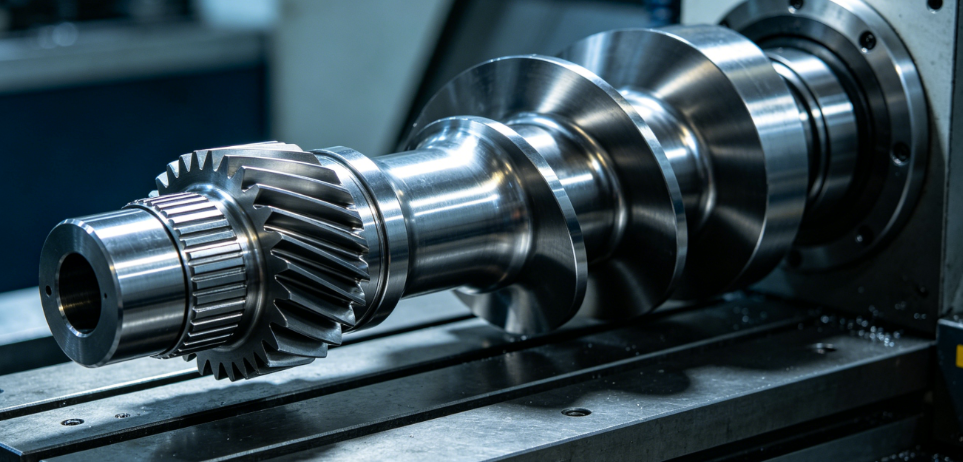

- Complex Aerospace Turbine Shafts with Integral Blades
- Problem: Traditional methods require forging the shaft and then separately machining and welding the blades, which is time-consuming, costly, and creates weak points.
- Zorapid Solution: Our Turn-Mill & 5-Axis machines can machine the entire shaft and blade profile from a single solid billet of high-temperature alloy (like Inconel 718). This results in a stronger, lighter, and more precise part with no welds.
- Medical Implants with Sculpted, Patient-Specific Geometry
- Problem: Parts like custom knee or hip implants require highly complex, organic shapes that are impossible to produce with standard turning or milling machines.
- Zorapid Solution: Our 5-axis simultaneous contouring capability, combined with CAD/CAM software optimized for medical applications, allows us to machine these intricate geometries directly from a solid block of biocompatible material (like Ti-6Al-4V).
- High-Precision Automotive Transmission Components with Helical Gears
- Problem: The tight tolerances and complex shapes of modern transmission parts (like helical gears and synchronizer hubs) are beyond the reach of standard gear hobbing and shaping machines.
- Zorapid Solution: Our live tooling and 5-axis contouring capabilities allow us to machine these parts with exceptional precision and surface finish, ensuring smooth operation and long life.
- Hydraulic Manifolds with Complex Internal Passageways
- Problem: Traditional methods for manufacturing hydraulic manifolds involve drilling multiple holes and then plugging the ends, which is inefficient and can create leaks.
- Zorapid Solution: Our Turn-Mill & 5-Axis machines can machine the complex internal passageways directly into the solid block, eliminating the need for plugs and reducing the risk of leaks.
Exclusive Zorapid Differentiator
We don’t just sell machines; we provide a complete manufacturing solution. This includes:
- DFM (Design for Manufacturing) Analysis: Our experienced engineers work with you during the design phase to optimize your part for our Turn-Mill & 5-Axis process, ensuring maximum efficiency and quality.
- Custom Tooling Solutions: We design and manufacture custom cutting tools specifically for your part and material, ensuring optimal performance and tool life.
- Process Optimization: Our team of CNC programmers and process engineers work tirelessly to optimize the tool paths and cycle times for your specific part, maximizing productivity and minimizing cost.
- Lifetime Support: We provide comprehensive training, maintenance, and technical support for the lifetime of your machine, ensuring it continues to operate at peak performance.
Compatible Materials & Side-by-Side Material Comparison
Zorapid’s Turn-Mill & 5-Axis All-In-One machines are designed to handle a wide range of materials, from soft plastics to the hardest, most exotic metals.
Full Supported Material List
Metals
- High-Temperature Alloys: Inconel 718, Inconel 625, Hastelloy C-276, Waspaloy
- Titanium Alloys: Ti-6Al-4V (Grade 5), Ti-6Al-4V ELI (Grade 23), Pure Titanium (Grade 2)
- Stainless Steels: 304, 316L, 17-4PH, 440C
- Tool Steels: H13, D2, S7
- Aluminum Alloys: 6061-T6, 7075-T6, 2024-T3
- Brass & Copper: C36000 (Free-Cutting Brass), C11000 (Pure Copper)
Plastics & Composites
- Engineering Plastics: PEEK, PPS, PEI, POM, PA66
- Composites: Carbon Fiber Reinforced Polymers (CFRP), Glass Fiber Reinforced Polymers (GFRP)
Key Material Performance Table (Turn-Mill & 5-Axis Optimized)
| Material | Primary Use Case | Zorapid Turn-Mill & 5-Axis Advantage | Best Surface Finish Achievable | Key Benefit Over Traditional Methods |
|---|---|---|---|---|
| Inconel 718 | Aerospace turbine shafts, blades | Exceptional tool life and surface finish at high cutting speeds | Ra 0.2 μm | Eliminates need for forging and welding, reduces material waste by 70% |
| Ti-6Al-4V | Medical implants, aerospace components | High-speed, low-vibration machining of complex geometries | Ra 0.1 μm | Enables production of patient-specific, single-piece implants with superior biocompatibility |
| 17-4PH | Automotive transmission parts, hydraulic manifolds | High-precision machining of tight tolerances and complex internal features | Ra 0.3 μm | Produces parts with higher strength and better fatigue resistance than traditional methods |
| PEEK | Medical devices, aerospace insulators | Clean, burr-free machining of high-temperature plastics | Ra 0.4 μm | Eliminates the need for secondary finishing operations, reduces production time by 50% |
| CFRP | Aerospace structural components, high-performance automotive parts | Precise, delamination-free cutting of composite materials | Ra 0.5 μm | Enables production of complex, lightweight composite parts with high strength-to-weight ratio |
Real-World Zorapid Case Studies
1: Aerospace Tier 1 Supplier – Inconel 718 Turbine Shaft
- Client Need: A complex turbine shaft with integral blades for a new commercial aircraft engine. The part required extremely tight tolerances (±0.005 mm) and a superior surface finish (Ra ≤ 0.2 μm).
- Traditional Attempt: The client’s previous supplier used a multi-shop process involving forging, turning, milling, and welding. The process took over 48 hours per part, had a first-pass yield of only 75%, and the welded joints were a potential failure point.
- Zorapid Solution: We produced the entire shaft and blade profile from a single solid billet of Inconel 718 using our Zorapid T-M 2000 Turn-Mill & 5-Axis machine. The process was completed in a single setup in just 6 hours.
- Results:
- Production Time: Reduced by 87.5% (from 48 hours to 6 hours).
- First-Pass Yield: Increased to 98%.
- Tolerance & Finish: Easily met the client’s specifications of ±0.005 mm and Ra 0.2 μm.
- Cost: Overall part cost was reduced by 40% due to increased efficiency and reduced waste.

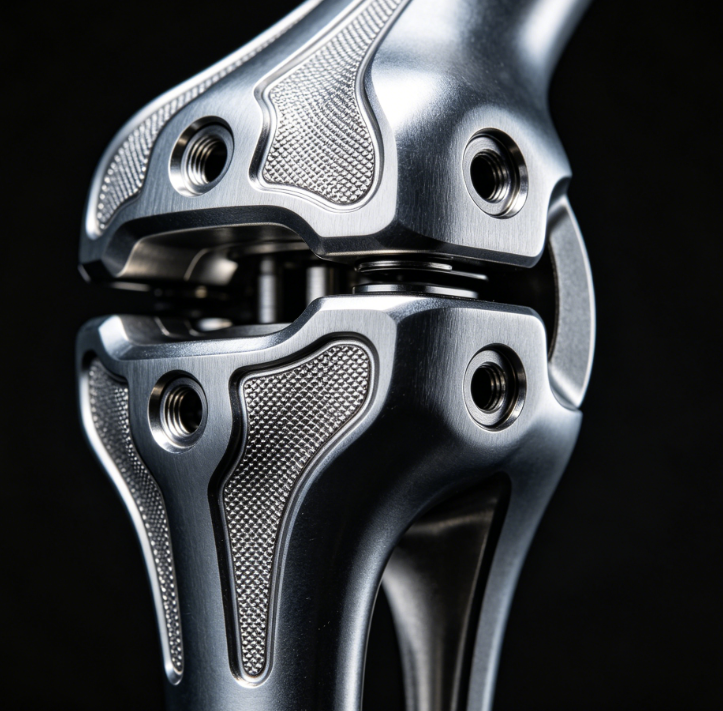

2: Medical Device Manufacturer – Ti-6Al-4V Custom Knee Implant
- Client Need: A custom knee implant for a patient with a complex bone structure. The implant required a highly precise, sculpted geometry to match the patient’s unique anatomy.
- Competitor Limitation: The client’s previous supplier could not produce the required complex geometry with the necessary precision and biocompatibility.
- Zorapid Solution: We used our Zorapid T-M 1500 Turn-Mill & 5-Axis machine to machine the implant directly from a solid block of Ti-6Al-4V ELI (Grade 23), a highly biocompatible titanium alloy. The process was guided by a 3D model created from the patient’s CT scan.
- Results:
- Precision: The implant matched the 3D model with an accuracy of ±0.01 mm.
- Biocompatibility: The single-piece design and smooth surface finish (Ra 0.1 μm) ensured optimal osseointegration (bone growth) and long-term implant success.
- Patient Outcome: The patient experienced a successful surgery and a rapid recovery with excellent functional results.
3: Automotive Tier 1 Supplier – 17-4PH Transmission Synchronizer Hub
- Client Need: A high-precision transmission synchronizer hub for a new electric vehicle (EV). The part required tight tolerances on the internal splines and a smooth surface finish to ensure quick and smooth gear shifts.
- Old Process: The client’s previous supplier used a combination of hobbing, shaping, and broaching machines. The process was time-consuming and had difficulty maintaining the required tight tolerances.
- Zorapid Solution: We produced the synchronizer hub using our Zorapid T-M 1000 Turn-Mill & 5-Axis machine. The live tooling station was used to machine the internal splines with exceptional precision, and the 5-axis contouring capability was used to create the complex external geometry.
- Results:

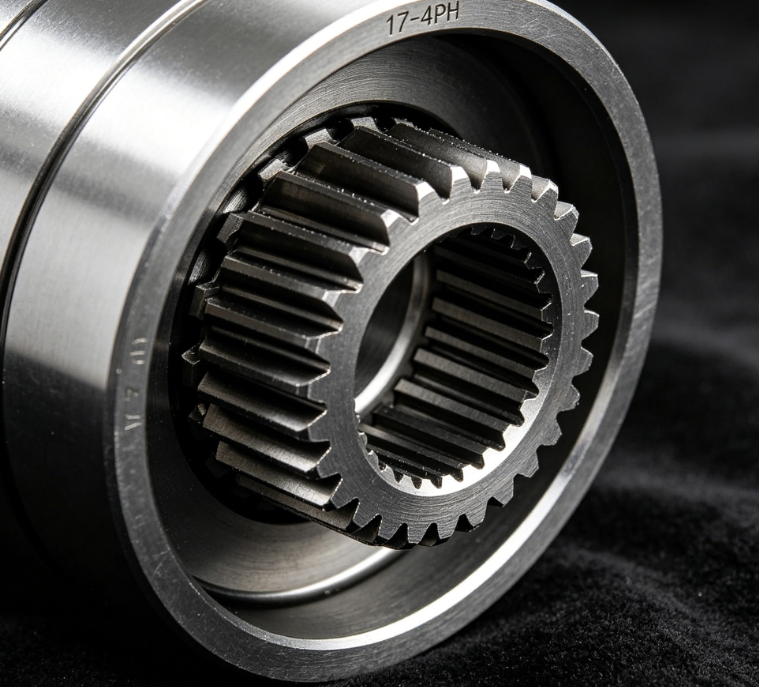

- Tolerance: The internal splines were machined to a tolerance of ±0.005 mm, significantly exceeding the client’s requirement of ±0.01 mm.
- Surface Finish: The surface finish of the splines was Ra 0.3 μm, ensuring smooth operation and long life.
- Cycle Time: The cycle time was reduced by 50% compared to the old process, increasing production capacity and reducing cost.
Your Unique Part Demand → Zorapid Tailored Hybrid Solution
We understand that every part is unique, and we tailor our solutions to meet your specific requirements. Here are some examples of how we can help:
A: You Need Maximum Precision for a Critical Aerospace Part
- Demand: A complex aerospace part with extremely tight tolerances and a high-quality surface finish.
- Zorapid Fix: Our Zorapid T-M 2000 Turn-Mill & 5-Axis machine, equipped with high-precision linear scales, a rigid spindle, and advanced in-process metrology.
- Deliverable: A part that meets or exceeds your most demanding specifications, with a first-pass yield of 98% or higher.
B: You Need to Reduce Production Time and Cost for a High-Volume Automotive Part
- Demand: A high-volume automotive part that requires complex machining operations.
- Zorapid Fix: Our Zorapid T-M 1000 Turn-Mill & 5-Axis machine, integrated with a robotic arm for automated part loading/unloading and palletizing. This enables lights-out manufacturing, maximizing machine utilization and reducing labor costs.
- Deliverable: A significant reduction in production time and cost per part, while maintaining the highest quality standards.
C: You Need to Produce a Custom Medical Implant with Complex Geometry
- Demand: A custom medical implant with a highly complex, patient-specific geometry.
- Zorapid Fix: Our Zorapid T-M 1500 Turn-Mill & 5-Axis machine, combined with our expertise in medical device manufacturing and our ability to work with biocompatible materials like Ti-6Al-4V.
- Deliverable: A precise, biocompatible implant that matches the patient’s unique anatomy, ensuring optimal surgical outcomes.
Global Turn-Mill & 5-Axis Machining Industry Data & Future Trend Analysis
Global Market Size Forecast Table (2026–2030, USD Billions)
| Year | Total Turn-Mill & 5-Axis Machining Market Size | CAGR vs Prior Year | Top End-Industry Share |
|---|---|---|---|
| 2026 | $8.2B | 6.8% | Aerospace & Defense 35% |
| 2027 | $8.8B | 7.3% | Automotive 28% |
| 2028 | $9.5B | 7.9% | Medical Devices 18% |
| 2029 | $10.3B | 8.4% | Energy 12% |
| 2030 | $11.2B | 8.7% | Industrial Machinery 7% |
Key Industry Trends Shaping 2026–2030
- Increased Adoption of All-In-One Machining: Manufacturers are increasingly recognizing the benefits of Turn-Mill & 5-Axis All-In-One machines, such as reduced production time, cost, and error. This trend is expected to continue as machine technology improves and costs become more competitive.
- Growth in Aerospace and Defense: The aerospace and defense industry is the largest end-user of Turn-Mill & 5-Axis machining technology, due to the high complexity and precision requirements of its parts. The increasing demand for new aircraft, satellites, and defense systems is driving strong growth in this segment.
- Automotive Industry Transformation: The automotive industry is undergoing a significant transformation, with the shift towards electric vehicles (EVs) and autonomous driving. This is creating new demand for complex, high-precision parts, such as electric motor components, battery systems, and advanced driver-assistance systems (ADAS) sensors. Turn-Mill & 5-Axis machining is well-positioned to meet this demand.
- Medical Device Market Expansion: The global medical device market is growing rapidly, driven by an aging population, increasing prevalence of chronic diseases, and technological advancements. Turn-Mill & 5-Axis machining is essential for the production of complex, high-precision medical devices, such as implants, surgical instruments, and diagnostic equipment.
- Advancements in Machine Technology: Machine manufacturers are continuously innovating to improve the performance, capabilities, and ease of use of Turn-Mill & 5-Axis machines. Key advancements include:
- Higher Precision: Improved linear scales, spindle designs, and control systems are enabling machines to achieve even tighter tolerances.
- Faster Speeds: Advanced cutting tools and machine designs are allowing for higher cutting speeds and feed rates, reducing cycle times.
- Better Software: New CAD/CAM software packages are making it easier to program and operate complex Turn-Mill & 5-Axis machines.
- Increased Automation: The integration of robotic arms, gantries, and other automated systems is enabling lights-out manufacturing and reducing labor costs.
Global Industry Application Scenarios
1. Aerospace & Defense
- Turbine shafts and blades for aircraft engines
- Structural components for aircraft fuselages and wings
- Rocket engine components
- Satellite structures
- Missile guidance systems
2. Automotive
- Transmission components (gears, synchronizer hubs, shafts)
- Engine components (crankshafts, camshafts, connecting rods)
- Suspension components (control arms, steering knuckles)
- Brake components (discs, calipers)
- Electric vehicle (EV) components (motor shafts, battery housings, inverter parts)
3. Medical Devices
- Orthopedic implants (knee, hip, shoulder, spine)
- Dental implants
- Surgical instruments
- Diagnostic equipment components (CT scanners, MRI machines)
- Prosthetics
4. Energy
- Wind turbine components (gearbox parts, generator shafts)
- Oil and gas exploration and production equipment (drill bits, valves, pumps)
- Power generation equipment (turbine parts, generator components)
5. Industrial Machinery
- Machine tool components (spindles, shafts, gears)
- Printing and packaging machinery components
- Food and beverage processing machinery components
- Construction machinery components
Zorapid Guaranteed Delivery Speed
At Zorapid, we understand that time is money. That’s why we’re committed to delivering your Turn-Mill & 5-Axis machines as quickly as possible.
- Standard Machine Delivery: We typically deliver our standard Turn-Mill & 5-Axis machines within 8-12 weeks of order confirmation.
- Custom Machine Delivery: For custom-configured machines, the delivery time is typically 12-16 weeks.
- Shorter Lead Times Available: In some cases, we can offer shorter lead times for machines from our demo stock or for urgent orders. Please contact us for more information.
Speed Advantage Breakdown vs. Competitors
- In-House Manufacturing: We design and manufacture our machines in our own state-of-the-art facilities, which allows us to maintain complete control over the production process and ensure the highest quality standards.
- Efficient Supply Chain: We have established long-term relationships with reliable suppliers of high-quality components, which helps to ensure a steady supply of materials and minimize lead times.
- Streamlined Production Process: We use lean manufacturing principles and advanced production techniques to optimize our production process and reduce waste.
- Dedicated Project Management: Each machine order is assigned a dedicated project manager who works closely with you throughout the entire process, from order confirmation to delivery and installation. This ensures that your machine is delivered on time and meets your specific requirements.
Why Global OEMs Choose Zorapid Over Other Turn-Mill & 5-Axis Manufacturers
- Superior Machine Performance: Our Turn-Mill & 5-Axis machines are designed and built to deliver the highest levels of precision, performance, and reliability. We use only the highest quality components and advanced manufacturing techniques to ensure that our machines meet the most demanding requirements.
- Complete Manufacturing Solution: We don’t just sell machines; we provide a complete manufacturing solution. This includes DFM analysis, custom tooling solutions, process optimization, and lifetime support.
- Experienced and Knowledgeable Team: Our team of engineers, programmers, and process experts has decades of experience in the design, manufacture, and application of Turn-Mill & 5-Axis machining technology. We are committed to sharing our knowledge and expertise with our customers to help them achieve their manufacturing goals.
- Global Presence and Support: We have a global network of sales and service offices, which allows us to provide our customers with local support and service. Our experienced service technicians are available to provide installation, training, maintenance, and repair services anywhere in the world.
- Competitive Pricing and Value: We offer our Turn-Mill & 5-Axis machines at competitive prices, while maintaining the highest quality standards. We also offer flexible financing options to help our customers invest in the technology they need to grow their business.
Quick Summary
The manufacturing of complex rotary parts is undergoing a revolution. The traditional multi-shop process is no longer efficient or cost-effective. Zorapid’s Turn-Mill & 5-Axis All-In-One machining centers offer a superior solution, combining the power of CNC turning, live tooling milling, and full 5-axis contouring in a single, high-precision setup.
This integrated approach eliminates the need for multiple setups, reduces production time and cost, eliminates tolerance stack-up, and ensures the highest levels of precision and quality. Whether you’re in the aerospace, automotive, medical, or energy industry, Zorapid’s Turn-Mill & 5-Axis All-In-One machines can help you produce parts that other manufacturers cannot.
Partnering with Zorapid means more than just buying a machine; it means gaining a strategic partner that is committed to your success. Our experienced team will work with you to understand your specific requirements and develop a tailored solution that meets your needs.
FAQ
What is the difference between Turn-Mill and 5-Axis machining?
Turn-Mill machining combines the capabilities of a CNC lathe (for turning cylindrical parts) with the capabilities of a CNC milling machine (for milling flat surfaces, drilling holes, etc.) using live tooling. 5-Axis machining takes this a step further by allowing the cutting tool to approach the part from any angle, enabling the production of highly complex, non-cylindrical geometries. Zorapid’s Turn-Mill & 5-Axis All-In-One machines combine both of these capabilities in a single machine.
What are the main benefits of using a Turn-Mill & 5-Axis All-In-One machine?
The main benefits include:
- Reduced Production Time: The entire part is machined in a single setup, eliminating the need for multiple setups and part transfers.
- Reduced Cost: Faster production times, reduced material waste, and lower labor costs all contribute to a lower overall part cost.
- Eliminated Tolerance Stack-Up: The single setup eliminates the cumulative errors that can occur with multiple setups.
- Higher Precision: The machine’s advanced design and control system enable the production of parts with extremely tight tolerances.
- Increased Flexibility: The machine can produce a wide range of complex parts, from simple cylindrical shafts to highly intricate 5-axis geometries.
What types of parts can be produced with a Turn-Mill & 5-Axis All-In-One machine?
Turn-Mill & 5-Axis All-In-One machines can produce a wide range of complex rotary parts, including:
- Aerospace turbine shafts and blades
- Medical implants (knee, hip, spine, dental)
- Automotive transmission components (gears, shafts, synchronizer hubs)
- Hydraulic manifolds
- High-precision gears and splines
- Complex sculpted parts
What materials can be machined with a Turn-Mill & 5-Axis All-In-One machine?
Turn-Mill & 5-Axis All-In-One machines can machine a wide range of materials, including:
- Metals: Inconel, Titanium, Stainless Steel, Tool Steel, Aluminum, Brass, Copper
- Plastics: PEEK, PPS, PEI, POM, PA66
- Composites: Carbon Fiber Reinforced Polymers (CFRP), Glass Fiber Reinforced Polymers (GFRP)
How much does a Turn-Mill & 5-Axis All-In-One machine cost?
The cost of a Turn-Mill & 5-Axis All-In-One machine varies depending on the machine’s size, capabilities, and configuration. Prices typically range from $500,000 to $2,000,000 or more. We offer flexible financing options to help our customers invest in the technology they need.
What kind of training and support is available?
We provide comprehensive training for your operators and programmers, both at our facility and at your site. We also offer a range of support services, including:
- Technical Support: Our experienced technical support team is available 24/7 to assist you with any questions or problems you may have.
- Maintenance Services: We offer preventive maintenance services to help keep your machine operating at peak performance.
- Repair Services: Our experienced service technicians are available to provide repair services for your machine, both on-site and at our facility.
- Software Updates: We provide regular software updates to keep your machine’s control system up-to-date with the latest features and capabilities.
How long does it take to receive a machine after placing an order?
The delivery time for a Turn-Mill & 5-Axis All-In-One machine typically ranges from 8 to 16 weeks, depending on the machine’s configuration and availability. We will provide you with a specific delivery date at the time of order confirmation.
Can you help me optimize my part design for Turn-Mill & 5-Axis machining?
Yes, our experienced engineers offer DFM (Design for Manufacturing) analysis services to help you optimize your part design for our Turn-Mill & 5-Axis process. This can help to reduce production time, cost, and the risk of errors.
