Core Machine & Process Fundamentals

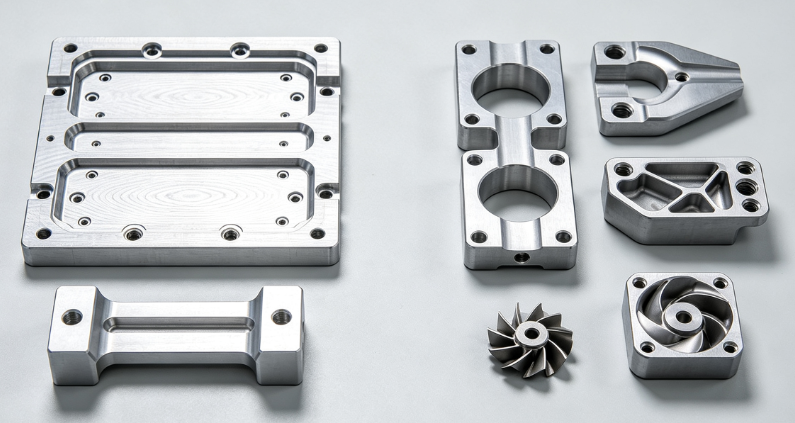

3-Axis CNC Milling
- Axes: X (left/right), Y (front/back), Z (up/down) — only linear movement; tool axis is fixed straight vertical
- Machining method: multiple separate setups, re-fixturing, manual indexing, jigs/fixtures to reach angled features
- Best for: prismatic block geometry, flat faces, orthogonal pockets, straight holes, simple molds, general structural brackets
- Key Limitation: cannot keep tool normal to curved surfaces; deep cavities require long slender tools (chatter, deflection, poor finish); compound angles/undercuts impossible without multiple re-fixtures
5-Axis CNC Milling
- Axes: X/Y/Z + 2 rotary axes (B/C/A) — 2 variants:
- 3+2 (Positional / Indexed 5-Axis): Rotary axes lock to fixed angles, then run 3-axis cutting (beginner-friendly, lower cost, fixed tilt)
- Full Simultaneous 5-Axis: All 5 axes move continuously, tool tilts dynamically along complex freeform geometry (blades, impellers, lattices, mold contours)
- Machining method: single unified setup, minimal re-fixturing, RTCP tool center point control, short rigid tooling, normal surface alignment
- Best for: freeform curved geometry, deep compound-angle cavities, impellers, turbine parts, medical implants, conformal molds, complex aerospace parts
- Key Feature: RTCP (Rotational Tool Center Point) compensation maintains precise tool tip position during rotary movement, eliminating pivot offset error
Upfront & Ongoing Cost Breakdown
Capital Machine Cost
| Machine Type | Typical Entry Price (USD) | Typical Production Price | Notes |
|---|---|---|---|
| Standard 3-Axis Vertical Mill | $50k–$100k | $100k–$250k | Basic boxway, 8k–12k RPM, simple controller |
| High Precision 3-Axis (Die/Mold) | $150k–$300k | $300k+ | Thermal compensation, glass scales, high-speed spindles |
| 3+2 Indexed 5-Axis (Trunnion Entry) | $200k–$350k | $350k–$500k | Basic trunnion, 3+2 focused workflow |
| Full Simultaneous 5-Axis (Aero/Medical Trunnion/Gantry) | $400k–$800k | $800k–$1.5M+ | Full simulation, RTCP, glass scales, thermal control, cleanroom options |
- Software Cost:
- 3-Axis: Basic CAM (Fusion 360, Mastercam 3-axis) — low annual cost, simple programming
- 5-Axis: Advanced 5-axis CAM (NX, HyperMILL, PowerMill), full simulation (Vericut), validated machine-specific post-processors → $15k–$50k annual software/licensing costs + specialist programming labor
- Facility & Utilities:
- 5-Axis: Larger footprint, temperature-controlled enclosures (±1°C), higher power consumption, dedicated dust/coolant systems, higher floor space rent
- 3-Axis: Standard shop floor environment, basic cooling, lower power draw, flexible placement
Labor & Overhead Costs
- 3-Axis:
- Programming: basic G-code, standard CAM, general machinists (lower hourly rate)
- Setup: Multiple fixturing, repeated alignment/probing, manual re-indexing, long setup time per complex job
- Rework: High hidden cost from tolerance stack-up errors, rework, scrap, re-inspection, delayed validation
- Training: Minimal specialized training, large operator talent pool
- 5-Axis:
- Programming: Specialist 5-axis programmers, digital twin simulation validation, post-processor validation, long initial CAM development cycles
- Setup: Fewer setups, unified datum workholding, zero-point pallets, advanced probing; lower recurring setup time after baseline validation
- Training: Advanced 5-axis simulation, RTCP, kinematics validation, crash prevention training (smaller talent pool, higher hourly wages)
- Tooling Cost: Premium PCD/CBN/anti-vibration tooling, validated 5-axis tool libraries; higher per-tool cost but longer life with stable finishing cycles
Fixture & Tooling Costs
- 3-Axis: Many custom jigs, multiple soft jigs, dedicated angle fixtures, repeat fixture validation for multi-angle features (high recurring fixture cost for complex geometry)
- 5-Axis: Zero-point pallets, single primary datum fixture, sacrificial backing boards, fewer dedicated jigs (higher upfront fixture cost, lower recurring fixture cost)
Total Cost Per Part (Simplified)
- Simple prismatic aluminum bracket (high volume):
- 3-Axis: Lower direct cost per part (low machine amortization, simple programming)
- 5-Axis: Higher per-unit cost unless geometry requires many 3-axis setups
- Complex curved/aero/medical parts:
- 3-Axis: Very high total cost (multiple setups, rework, scrap, long lead times, inspection cost)
- 5-Axis: Lower total landed cost after amortizing fixed 5-axis validation costs
Accuracy & Dimensional Performance Comparison
A. Core Error Sources
3-Axis Limitations
- Re-Fixture Tolerance Stack-Up: Each new setup introduces alignment error, datum shift, fixture repeatability error, cumulative positional error
- Typical multi-setup 3-axis repeatability: ±0.025mm ~ ±0.05mm (varies with fixturing quality)
- Long Tool Deflection & Chatter: Deep cavities require long slender tools → elastic deflection, vibration, inconsistent surface finish, taper error
- Fixed Tool Axis Error: Cannot align tool normal to curved surfaces → scallop marks, inconsistent residual stress, variable surface roughness
- Thermal Drift: Multiple setups, ambient temperature variation, repeated probing drift
- Achievable Ra: ~Ra 0.8μm or higher (hard to reach mirror finishes without secondary grinding/polishing)
5-Axis Advantages
- Single Unified Datum Setup: Eliminate multi-fixture stack-up error; RTCP + glass scale + thermal compensation creates consistent base accuracy
- High precision 5-axis repeatability: ±0.002mm ~ ±0.005mm (temperature-controlled models)
- True positional accuracy for compound angles, concentricity, 3D freeform GD&T, cylindricity
- Tool can stay short, rigid, normal to surface → reduced deflection, chatter, residual stress
- Mirror finish capability: Ra 0.2μm or better with validated PCD/CBN finishing cycles
- 5-Axis Error Risks:
- Incorrect post-processors, mismatched kinematics/pivot offsets, unvalidated RTCP settings → large systematic errors
- Rotary axis backlash, thermal drift of trunnion axes, simulation gaps (can be controlled via validation)
- 3+2 5-Axis: good positional accuracy for fixed angles, but not continuous freeform accuracy
- Baseline 3-Axis high-precision die/mill machines can match or beat 5-axis for simple prismatic geometry
B. Typical Tolerance Benchmarks
- General 3-Axis: ±0.025mm (standard), ±0.01mm (ultra-precision 3-axis die/mold)
- 3+2 5-Axis: ±0.005~±0.01mm (fixed angle features, single datum setup)
- Simultaneous 5-Axis (precision aero/medical): ±0.003mm or tighter (temperature controlled, validated kinematics)
- Critical caveat: Accuracy = process accuracy, not just machine specs. A poorly validated 5-axis process can be less accurate than a validated 3-axis process.
C. Residual Stress & Surface Integrity
- 3-Axis: Multiple passes, long tool deflection, variable cutting force → uneven residual stress, post-machining warpage (especially 7075, Ti, hardened steel)
- 5-Axis: Light uniform finish passes, normal tool alignment, controlled chip load → predictable residual stress, better dimensional stability over time (critical for regulated long-life components)
Cycle Time & Lead Time Tradeoffs
3-Axis
- Simple prismatic parts: Fast raw spindle time, low overhead
- Complex multi-angle parts:
- High non-cutting time: repeated fixturing, probing, alignment, job changeover, manual angle setup
- Long overall total lead time (days of setup + validation + rework)
- Batch variability, slow NPI prototype validation cycles
- Batch scalability: Good for high-volume simple prismatic work; poor scalability for complex geometry variants
5-Axis
- Simple prismatic parts: Higher non-cutting CAM/simulation overhead, longer programming validation cycles → slower initial NPI cycles
- Complex freeform/multi-angle parts:
- Reduced total elapsed lead time: single setup, minimal re-fixturing, faster finishing, fewer inspection cycles
- Reduced manual secondary operations (grinding, EDM, manual finishing)
- Once validated: repeatable cycle times, consistent SPC Cpk performance
- Full simultaneous 5-axis may have longer spindle cycle times than optimized 3+2 indexed cycles (excessive continuous B/C axis movement)
- 3+2 hybrid 5-axis: best middle ground for mixed prismatic + angled features (fastest validated cycle time)
Design & DFM Constraints
3-Axis DFM Rules
- Geometry: orthogonal, straight walls, shallow pockets, no deep undercuts, limited compound-angle features
- Wall Thickness: must be thicker to accommodate deflection error; cannot do ultra-thin lattice/rib structures
- Mold/Cavity: limited deep cavity geometry, draft angle restrictions, manual EDM follow-up required
- Traceability/Compliance: harder to maintain regulated traceability across multiple setups (AS9100/IATF/ISO13485)
- Weight Optimization: cannot implement high-efficiency variable-thickness lattices/topology optimized geometry (mass, performance penalty for UAV/aero parts)
5-Axis DFM Rules
- Geometry: Full freeform, deep undercuts, conformal cooling, TPMS lattices, compound-angle holes, variable thin ribs, topology-optimized aerospace/medical structures
- Unified Datum DFM: single primary datum design, zone GD&T tolerancing, validated finish stock
- Hybrid (SLM + 5-Axis) workflows: only possible with 5-axis finishing
- Limitations: higher upfront DFM validation cost, requires simulation validation, complex residual stress validation
Quality Risk & Hidden Costs
3-Axis Hidden Risk Costs
- Cumulative scrap/rework cost from tolerance stack-up (biggest hidden cost for regulated aerospace/auto batches)
- Secondary finishing costs (grinding, EDM, manual polishing, rework inspection)
- Regulatory non-compliance risk (AS9100/IATF16949 FAI failure, delayed PPAP validation, field warranty risk)
- Dimensional drift in high-volume batches, inconsistent SPC Cpk, PPM quality drift
- Long prototype validation cycles, missed product launch schedules
5-Axis Hidden Risk Costs
- Crash risk (major potential loss: spindle, fixture, high-value Ti/Inconel blanks)
- Post-processor/kinematics validation cost, ongoing CAM/simulation validation overhead
- Regulated process validation (FAIR, NADCAP, ISO13485 process qualification)
- Specialist programming/operator turnover risk, downtime for machine calibration/kinematic revalidation
- Over-engineering risk: using full simultaneous 5-axis for simple prismatic parts (wasting expensive machine time)
Ideal Application Match Matrix
| Application | Preferred Process | Reason |
|---|---|---|
| Simple aluminum brackets, fixtures, jigs, standard mold bases, high-volume orthogonal prismatic parts | 3-Axis | Low per-unit cost, fast programming, sufficient tolerances, no compound angles |
| Medium complexity multi-angle molds, engine brackets, multi-hole hydraulic manifolds, general aerospace secondary structures | 3+2 Indexed 5-Axis | Balanced cost/accuracy, single datum setup, avoids full simultaneous 5-axis overhead |
| Medical implants, spinal cages, turbine bladders, impellers, conformal cooling molds, UAV monolithic chassis, regulated aerospace primary components | Full Simultaneous 5-Axis (Validated Process) | 3D freeform accuracy, surface integrity, long-term dimensional stability, regulatory traceability |
| General consumer plastic molds, low-tolerance trim panels | 3-Axis / 3+2 5-Axis | Balance cost & finish requirements |
| Mass production simple automotive prismatic valve bodies | 3-Axis / turn-mill (not full 5-axis milling) | Optimized dedicated multi-tasking workflow |
Hybrid 3+2 (Positional 5-Axis) Middle Ground
- How it works: Lock rotary axes to fixed tilt angles, then run high-speed 3-axis adaptive trochoidal milling; use full simultaneous 5-axis only for small critical finish zones
- Cost: ~50–70% of full simultaneous 5-axis operating cost, retains single datum setup accuracy
- Accuracy: Eliminates 3-axis multi-setup stack-up error; meets most aero/auto CTQ GD&T specs without continuous 5-axis overhead
- Primary Benefits:
- Reduces crash risk, simpler CAM programming, faster validation
- Enables high-speed trochoidal roughing to reduce residual stress & cycle time
- Easier operator training, faster serial production ramp-up
- Best default choice for most mid-volume complex aerospace/mold jobs
ROI Calculation Framework
Simple ROI Formula
- Calculate baseline 3-axis cost per validated good part (including rework, scrap, secondary ops, inspection, expediting)
- Calculate validated 5-axis/3+2 cost per good part (fixed validation cost amortized over production volume)
- Estimate annual volume, quality savings, lead-time savings, warranty reduction, DFM weight/performance savings
- Calculate break-even volume:
- Low-volume NPI (<500 pcs): Full simultaneous 5-axis rarely ROI-positive unless high-value regulated components
- Mid-volume (500–5,000 pcs): 3+2 5-axis typically achieves 12–24 month ROI
- High-volume regulated aero/medical: validated 5-axis often <18 month ROI
- Pure commodity prismatic high-volume: 3-axis almost always superior
Example Break-Even Analysis
- High-value Ti6Al4V aerospace bracket: 3-axis = $350 / part (3 setups, 15% scrap, 7 day lead time)
- 3+2 5-axis validated: $220 / part (single setup, 1% scrap, 2 day lead time)
- Annual volume: 1,000 pcs → annual savings ~$130,000
- Break-even: ~18 months after initial validation costs
Quick Decision Checklist
Is the geometry primarily prismatic, orthogonal, no critical 3D freeform GD&T? → Use validated 3-Axis
Does the part have multiple compound-angle features, tight positional GD&T, regulated traceability? → Evaluate 3+2 5-Axis
Freeform curved surfaces, lattices, conformal cooling, medical implants, primary aero flight parts? → Validated simultaneous 5-Axis + simulation
Can the tolerance be met by a single-setup 3+2 process? Avoid overusing full simultaneous 5-axis
Create formal SPC baseline validation, Cpk studies, FAI/AS9102 validation before serial production
Track total landed cost (not just raw machine hourly rate) for 6+ months to validate ROI
FAQ
Is 5-Axis always more accurate than 3-Axis?
No. A validated single-setup 3-axis ultra-precision die/mill can achieve better accuracy than an unvalidated 5-axis machine with bad post-processors, poor kinematics, or trunnion drift. The process validation matters more than machine type.
When should I avoid full simultaneous 5-Axis and use 3+2 indexed 5-Axis instead?
When most geometry is prismatic with only fixed-angle features (angled holes, pockets), not continuous freeform surfaces. 3+2 drastically reduces cycle time, crash risk, and programming cost while eliminating multi-setup 3-axis stack-up error.
What is the biggest hidden cost difference between 3-Axis and 5-Axis?
3-Axis: cumulative rework/scrap/secondary finishing cost from multi-fixture tolerance stack-up; 5-Axis: upfront CAM/simulation/post-processor validation + specialist programming overhead and crash risk.
Can I retrofit a 3-axis machine to 5-axis?
Limited 3+2 retrofits exist, but rarely match dedicated 5-axis trunnion rigidity, RTCP control, and thermal stability. Not recommended for regulated aero/medical high-precision work.
How to quote 5-axis jobs accurately?
Break into validated CAM simulation cycles, fixed validation amortization, material, tooling, inspection, traceability, and regulatory costs. Do not price purely by raw spindle runtime.
Does 5-axis always produce better surface finish?
Only with validated toolpaths, RTCP, short rigid tooling, and mirror finishing parameters. Poorly programmed 5-axis simultaneous paths can create axis-jerk chatter and worse finish than optimized 3-axis finishing.
Closing Summary
- 3-Axis: Best for commodity prismatic geometry, high-volume simple parts, tight budget general production; risk = tolerance stack-up, rework cost, slow complex geometry lead times
- 3+2 Indexed 5-Axis: The sweet spot for most mid-volume complex aerospace/mold jobs — balanced cost, single-datum accuracy, reduced rework risk
- Full Simultaneous 5-Axis: Mandatory for regulated freeform aero/medical/lattice components, but only after full simulation/kinematic validation; avoid for simple prismatic geometry
- The true comparison metric is total landed cost & process Cpk stability, not hourly machine rate or raw spindle time
