In the fields of medical implants, precision instruments and high-end industrial equipment, stainless steel serves as a core material thanks to its excellent biocompatibility, superior corrosion resistance and outstanding structural strength.
However, its inherent properties including tool adhesion, work hardening and poor thermal conductivity make high-precision and complex-structure machining a major industry challenge.
With over 20 years of expertise in precision manufacturing, Zorapid specializes in medical and industrial-grade stainless steel CNC machining. We adopt core processes such as five-axis linkage machining, low-temperature cutting and high-pressure cooling to solve industry bottlenecks.
We deliver premium components with tolerance up to ±0.005mm. Orders are accepted starting from 1 piece with fast delivery within 3 to 5 days. Your reliable partner for precision manufacturing solutions.
Process Technology: Core of Medical & Industrial Grade Precision Machining

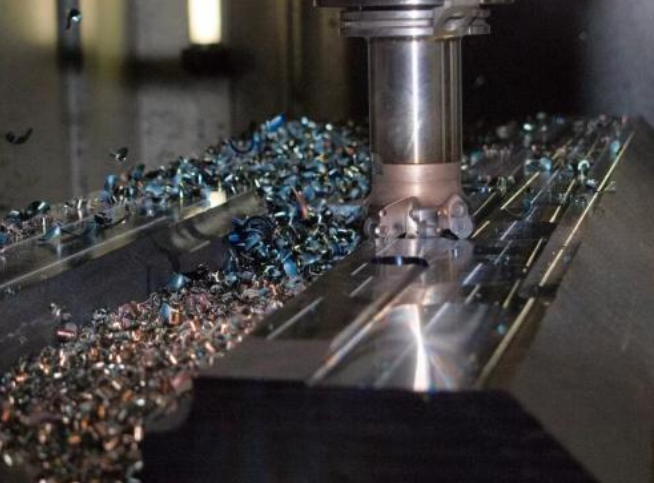

The core of stainless steel CNC machining lies in precise control of cutting force, temperature and stress, to avoid work hardening, tool sticking and deformation, while meeting medical-grade cleanliness and industrial-grade stability standards. Zorapid applies a full-process refined technical system covering every procedure from raw materials to finished products.

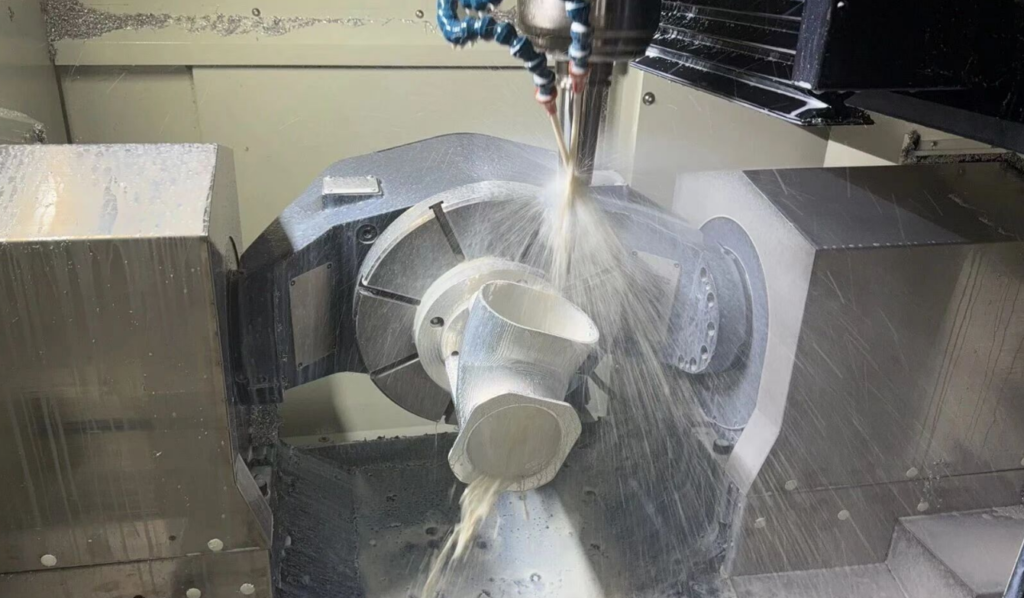

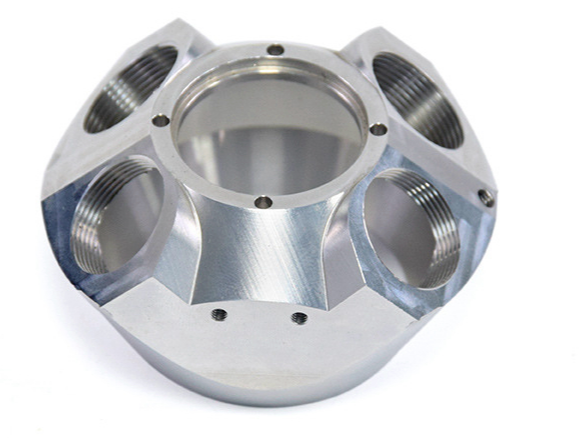

Five-Axis Linkage Precision Milling
For parts with complex cavities, curved surfaces and polyhedral structures, we adopt high-end five-axis machining centers to complete multi-sided processing in a single clamping. It achieves positioning accuracy of ±0.002mm and repeat positioning accuracy of ±0.001mm, eliminating cumulative errors from repeated clamping. It is perfectly suitable for medical implants such as interbody fusion cages and orthopedic steel plates, as well as industrial precision valve bodies and cavity components.
Swiss-type Sliding Head Turning
For miniature shaft and sleeve components such as medical puncture needles, guide wires and micro bolts, we adopt Swiss-type lathes. The concentricity can reach 0.005mm, and micro threads as fine as M1.6 are available.
We process medical-grade stainless steel including 304, 316L and 17-4PH, enabling distortion-free machining of slender shafts and thin-walled sleeves.
Low-temperature Cutting & High-pressure Cooling Technology
Stainless steel features poor thermal conductivity, only one-third of carbon steel. Accumulated cutting heat easily causes tool wear and workpiece work hardening.
Zorapid innovatively applies -196°C liquid nitrogen cryogenic cutting, combined with 70-100bar high-pressure internal cooling system. Cutting fluid directly reaches the tool tip to dissipate heat rapidly and break chips effectively. It restrains work hardening with hardened layer thickness reduced by 30%, and stably achieves surface roughness up to Ra 0.2μm, fully complying with medical-grade mirror finish standards.
Phased Stress Relief & Precision Post-treatment
After rough machining: Vibration aging is adopted to release internal material stress and prevent deformation after finish machining.
After finish machining: Conduct medical-grade electropolishing to enhance corrosion resistance and reduce bacterial adhesion, as well as passivation treatment in accordance with ASTM A967 standard. Followed by ultrasonic cleaning and vacuum packaging. All operations are completed in clean workshops to avoid secondary contamination.
Technical Analysis: Solve Three Major Pain Points in Stainless Steel Machining
Pain Point 1: Work Hardening (Core Difficulty)
Cause:
During cutting, the surface metal of stainless steel (especially austenitic 304/316L) undergoes plastic deformation and grain refinement. Its hardness rises from 200HV to over 400HV, which doubles subsequent cutting force, accelerates tool wear and causes surface tearing.
Zorapid Solutions
- Cutting Tools: Adopt fine-grained cemented carbide with AlTiN coating, equipped with sharp cutting edges of large rake angle (15°-20°) to reduce cutting force.
- Machining Parameters: Apply climb milling with feed rate of 0.15-0.35mm/r to avoid low-speed friction; adopt trochoidal tool path to shorten tool contact time.
- Cooling Method: Combine high-pressure internal cooling and low-temperature cutting for rapid heat dissipation, so as to restrain grain refinement effectively.
Pain Point 2: Tool Built-up Edge & Chip Adhesion
Cause:
Stainless steel features high viscosity and ductility. Metal material easily sticks to tool cutting edges during machining and forms built-up edges, resulting in dimensional deviation, surface scratches and damaged threads.
Zorapid Solutions
- Tools: Perform edge honing with radius from R0.02mm to R0.05mm to reduce material adhesion.
- Cutting Fluid: Use dedicated stainless steel emulsifier with extreme-pressure additives for dual functions of lubrication and cooling.
- Processing Technology: Dynamically adjust cutting speed. 80-120m/min for 304 & 316L, 50-80m/min for 17-4PH, to prevent built-up edge formation.
Pain Point 3: Deformation of Thin-wall & Complex Structures
Cause:
Stainless steel has a low elastic modulus of 190GPa. Cutting force and residual stress easily lead to deformation and dimensional out-of-tolerance on thin-wall parts (≤1mm) and deep cavity components with depth-to-width ratio up to 10:1.
Zorapid Solutions
- Tooling: Custom flexible fixtures and vacuum chucks are applied to ensure even stress distribution and minimize clamping deformation.
- Processing: Adopt layered cutting with cutting depth of 0.1-0.2mm per layer and multiple passes to release stress gradually.
- Equipment: Equipped with real-time on-line inspection and automatic compensation system to dynamically adjust dimensions during machining and guarantee stable precision.
What others decline, Zorapid can achieve: Breakthrough in Extreme Machining Technology
Ultra-precision Micro-hole Machining
Industry Difficulties:
Machining micro holes of φ0.1~φ0.5mm with depth-diameter ratio ≥5:1 tends to cause drill breakage, rough hole walls and out-of-tolerance positional accuracy.
Zorapid Capabilities:
We adopt EDM drilling and special micro-hole gun drills, achieving hole diameter tolerance ±0.002mm and positional tolerance ±0.003mm. We are capable of machining hardened 17-4PH stainless steel (45HRC+), ideal for medical drug delivery systems and precision filter components.
Ultra-thin Wall Component Machining
Industry Challenges:
Wall thickness ≤0.8mm, length-to-width ratio ≥20:1. Such parts are prone to edge collapse, deformation and springback during processing.
Zorapid Advantages:
Equipped with five-axis linkage machining, low-temperature cutting and vacuum suction fixtures, we can achieve a minimum wall thickness of 0.3mm with tolerance up to ±0.01mm. Finished parts feature flawless surfaces free from edge collapse and deformation. We have successfully delivered medical thin-walled sleeves and aerospace thin-walled structural parts.
Complex Cavity Machining of High-Hardness Stainless Steel
Industry Challenges:
High-hardness materials such as 440C (58-60HRC) and 17-4PH (40-45HRC) with complex cavities, deep holes and precision threads lead to rapid tool wear and low machining efficiency.
Zorapid Capabilities:
Adopting CBN cutting tools, high-pressure cooling system and optimized tool paths, we can directly machine stainless steel up to 58HRC. The cavity surface finish reaches Ra 0.4μm with thread accuracy of 6H. Ideal for medical surgical instruments and industrial precision mold components.
One-stop Delivery of Medical-grade Sterile Precision Components
Industry Challenges:
Medical implants must meet strict standards for biocompatibility, sterility, burr-free finish and zero residual contaminants. It is highly difficult to ensure full compliance throughout machining, post-treatment and packaging procedures.
Zorapid Advantages:
We operate ISO 13485 certified clean workshops. Full-process quality control is implemented covering medical-grade certified raw materials, burr-free machining, electropolishing & passivation post-treatment, and sterile vacuum packaging. We are able to provide biocompatibility reports, material certificates and full process traceability records, making products ready for direct end-use in medical applications.

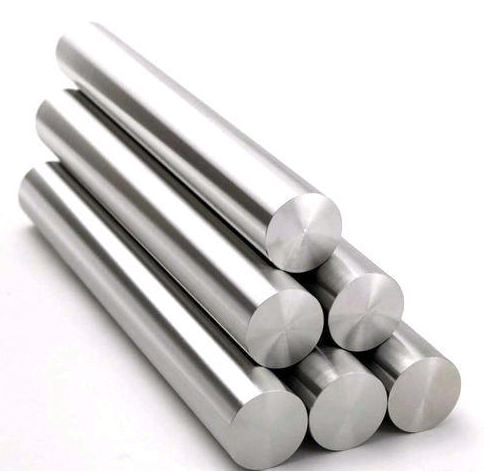

Applicable Materials: Full Range of Medical & Industrial Grade Stainless Steel
Zorapid strictly selects medical and industrial-grade stainless steel raw materials. All materials are supplied with material certificates, mechanical property reports and corrosion resistance test reports to guarantee batch consistency and compliance.
Medical Grade Stainless Steel (Biocompatibility Priority)
| Material Grade | Core Composition | Properties | Typical Applications |
|---|---|---|---|
| 316L | 16-18% Cr, 10-14% Ni, 2-3% Mo | Highest corrosion resistance, excellent biocompatibility, non-magnetic | Orthopedic implants, vascular stents, surgical instruments, medical cavities |
| 17-4PH | 15-17.5% Cr, 3-5% Ni, 3-5% Cu | Precipitation hardening, high strength (40-45 HRC), corrosion-resistant | Orthopedic plates, screws, spinal rods, precision medical shafts |
| 440C | 16-18% Cr, 0.95-1.2% C, 0.5-1% Mo | Ultra-high hardness (58-60 HRC), wear-resistant | Surgical scissors, blades, precision cutting instruments |
| 304 | 18-20% Cr, 8-10.5% Ni | General medical grade, corrosion-resistant, easy to machine | Medical housings, supports, non-implantable devices |

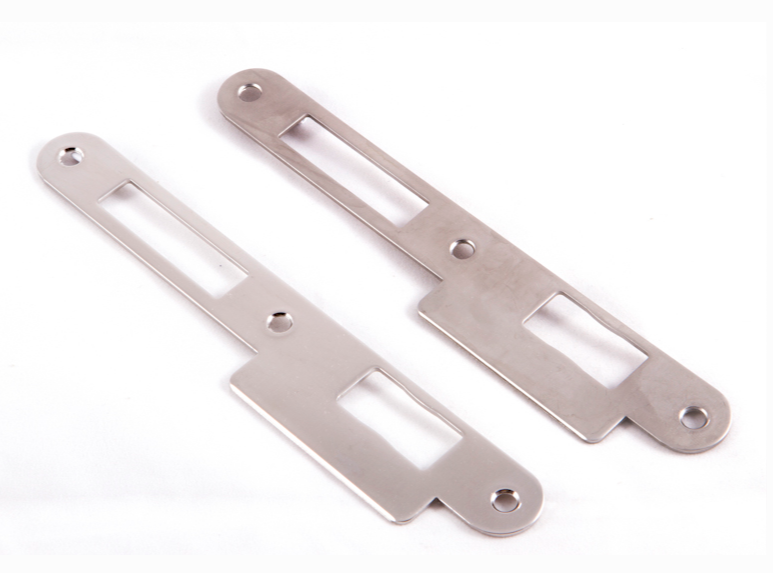

Industrial Grade Stainless Steel (Balanced Strength & Corrosion Resistance)
- 304 / 304L: General industrial grade, good atmospheric corrosion resistance and excellent weldability. Widely used for industrial valve bodies, pipelines and brackets.
- 316 / 316Ti: Resistant to acid, alkali and high-temperature corrosion. Ideal for chemical equipment, marine engineering and food processing machinery.
- 2205 Duplex Stainless Steel: High strength and superior chloride corrosion resistance. Applied to high-pressure vessels, offshore platforms and precision pump housings.
Case Study: Benchmark Projects for Medical & Industrial Fields
Medical Case: 316L Orthopedic Interbody Fusion Cage
Client Requirements
Made of medical-grade 316L stainless steel with complex porous structure, wall thickness 0.8mm, dimensional tolerance ±0.01mm, electropolished surface with Ra≤0.2μm and qualified biocompatibility.
Industry Difficulties
Porous structure is prone to deformation, thin walls easy to collapse, and dimensional deviation often occurs after polishing.
Zorapid Solution
Adopt five-axis linkage roughing, low-temperature finish machining, vibration stress relief and electropolishing. Equipped with custom flexible fixtures and real-time on-line inspection.
Delivery Outcome
Products passed dimensional inspection, pressure resistance test and biocompatibility test at one time. Lead time is 5 days. Mass production of 1000 pieces achieved zero defective rate.
Industrial Case: 17-4PH High-Pressure Precision Valve Body
Client Requirements
Fabricated from 17-4PH stainless steel hardened to 42HRC. Featured crossed multi-channel deep holes of φ2mm × 20mm, sealing cone surface roughness Ra≤0.4μm and pressure resistance up to 100MPa, applied for hydraulic control systems.
Industry Challenges
Difficult machining of high-hardness material, poor straightness of deep holes, tough deburring on intersecting holes and fluid leakage on sealing surfaces.
Zorapid Solutions
Adopt CBN cutting tools together with high-pressure internal cooling, EDM deburring and cone surface precision grinding. Conduct phased stress relief and full-process dimensional monitoring.
Final Outcomes
Hole diameter tolerance reaches ±0.005mm with cone surface roundness within 0.003mm. All products passed high-pressure airtight test in one go. Lead time is 7 days, and we have obtained long-term bulk orders from the client.

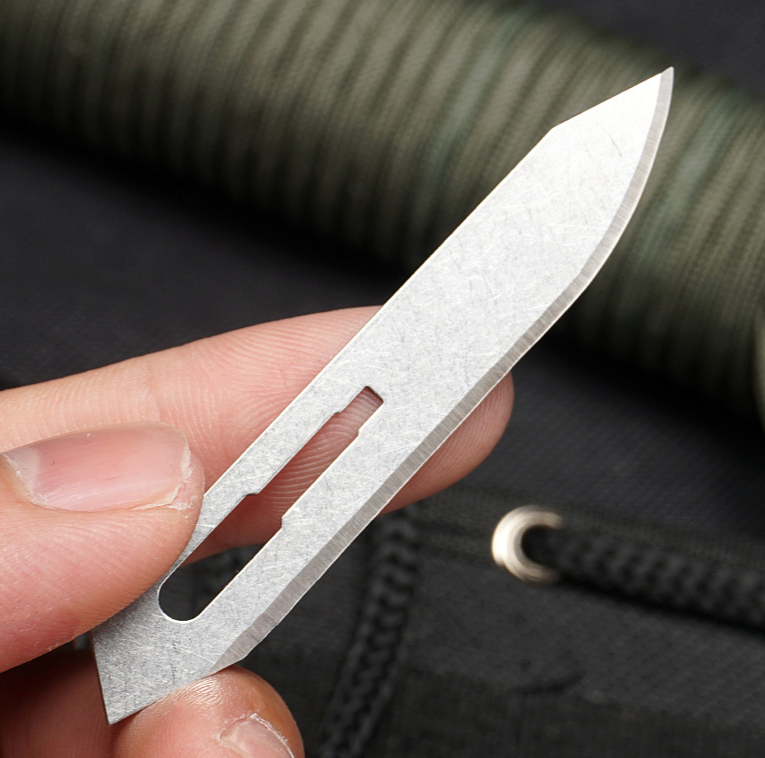

Extreme Case: 440C Medical Miniature Surgical Blade
Client Requirements
Made of 440C stainless steel with hardness up to 58HRC. Edge thickness: 0.05mm, edge straightness: ±0.002mm. Burr-free, chip-free surface with qualified sharpness.
Industry Difficulties
Ultra-high hardness easily causes tool chipping; ultra-thin edges tend to deform; consistent sharpness is hard to maintain.
Zorapid Solutions
Apply five-axis linkage machining, low-temperature cutting and professional edge grinding technology. Adopt ultra-fine grain carbide cutters and micro-feed precision grinding.
Delivery Result
All finished blades feature intact edges without chipping or burrs and meet sharpness standards. 5000 pieces mass-delivered with 100% consistency, breaking the technical bottleneck of ultra-hard miniature component machining in the industry.
Quality Assurance: Full-process Control, Zero-defect Delivery
Zorapid has established four internationally certified quality management systems including ISO 9001, IATF 16949, ISO 13485 and AS9100D. We implement full-chain traceability from raw materials to finished goods, and conduct strict inspection on every component to ensure medical-grade safety and industrial-grade stability.
Raw Material Control
We only adopt first-tier brand medical and industrial-grade stainless steel. Material certificates, RoHS reports and medical-grade biocompatibility reports are provided for each batch.
Sampling tests on hardness, chemical composition and corrosion resistance are carried out before warehousing. Unqualified materials are directly rejected to eliminate risks at the source.
In-process Quality Control
- First Article Inspection: Full dimensional inspection is performed on the first sample of each product with official reports issued. Mass production starts only after full confirmation.
- In-process Spot Check: Proportional sampling is conducted in every working procedure to verify dimensions, surface finish and geometric tolerances, enabling timely process adjustment.
- Full Dimensional Inspection: 100% full inspection is implemented for medical-grade and high-tolerance precision parts. High-precision testing equipment such as CMM, height gauges, micrometers and roughness meters are applied with inspection accuracy up to ±0.001mm.
Finished Product Traceability & Compliance
Each component is marked with a unique traceability code, linked to raw material batches, processing equipment, operators and inspection records for full lifecycle traceability.
For medical-grade parts: We provide sterility test reports, electropolishing reports, passivation reports and biocompatibility reports to meet FDA and CE certification standards.
For industrial-grade parts: We supply dimensional inspection reports, material certificates and hardness test reports in line with industrial compliance requirements.
Quality Commitment
We offer free rework or full refund unconditionally for products with unqualified dimensions or unsatisfactory surface finish.
Lifelong technical after-sales support is available for medical-grade components to assist clients in obtaining end-product certifications.
Strict batch consistency is guaranteed for mass production to eliminate quality fluctuations between batches.
Delivery Speed: Rapid Response, 3-5 Days Lead Time
Centered on high-efficiency production capacity, flexible manufacturing and fast supply chain, Zorapid shortens traditional long machining cycles. We support orders starting from 1 piece, standard delivery within 3-5 days and 24-hour rush service, fully meeting your demands for R&D prototyping, small-batch trial production and mass delivery.
Rapid Response
24-hour online customer service, quotation within 1 hour and process solution within 2 hours.
For R&D prototype orders: Programming and material cutting finished on the same day, samples delivered in 3 days. 24-hour urgent service is available for 1-day delivery.
Flexible Production Capacity

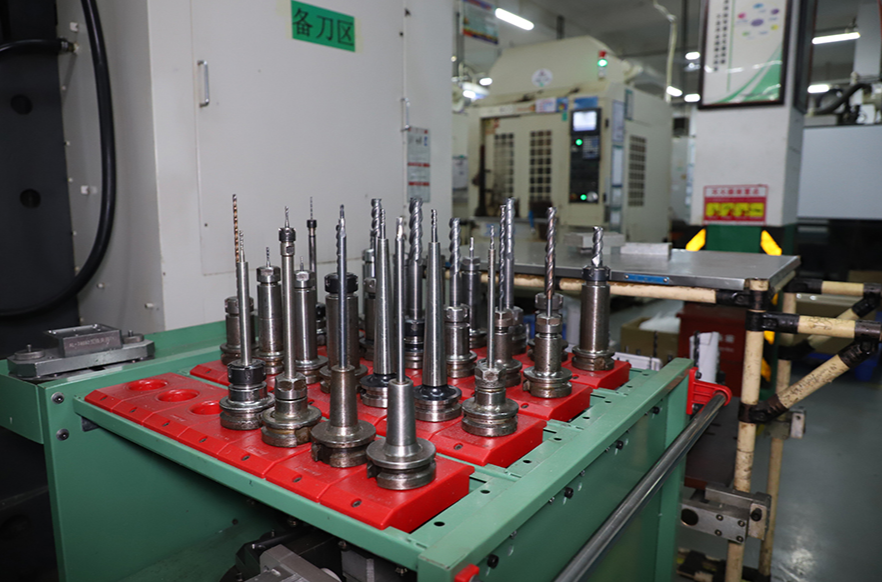

Equipped with over 20 high-end five-axis machining centers, Swiss-type lathes and EDM machines, parallel production ensures sufficient output.
Our flexible production mode suits 1-piece prototyping, 10-100-piece small batches and over 1000-piece mass production. No extra mold cost and no MOQ requirement.
Efficient Supply Chain
Cutting tools, coolant, fixtures and other consumables are locally sourced and available within 24 hours to ensure smooth production schedule.
Delivery Commitment
- Prototype orders: 3-5 days delivery; 1-day delivery via 24-hour rush service
- Small-batch orders (10-100 pcs): 5-7 days delivery
- Mass orders (over 1000 pcs): 7-10 days delivery
Benefits of Choosing Zorapid: Beyond Precision, Total Peace of Mind
Technical Advantages: Top-tier Craftsmanship to Tackle Tough Machining Challenges
With over 20 years of experience in stainless steel precision machining, we focus deeply on medical and industrial sectors and solve core industry processing difficulties.
We own core technological strengths including five-axis linkage machining, low-temperature cutting, high-pressure cooling and EDM micro-hole drilling. We are capable of manufacturing hard-to-make parts that others cannot achieve.
Our technical team boasts more than 10 years of professional experience. We provide free process optimization and free DFM analysis to help clients cut costs and boost efficiency.
Quality Advantages: Medical-grade Standards, Zero-defect Delivery
Full-process quality control ensures strict inspection for every single component.
All medical-grade parts comply with FDA and CE standards, with complete sets of compliance documents available.
Quality commitment: Unqualified products are eligible for free rework or full refund, plus lifelong professional technical after-sales support.
Cost Advantages: Direct Factory Source with High Cost Performance
We own independent production bases with no middleman markup. Orders are accepted starting from 1 piece with no MOQ limits.
Cost reduction via process upgrading: Optimized tool paths, machining parameters and tooling structure cut processing costs by 15%-20%.
Tiered pricing is available for small and bulk orders, with exclusive discounts for long-term cooperative clients.
Service Advantages: One-stop Service for Worry-free Cooperation
We deliver full-range integrated services covering material procurement, machining, post-treatment, packaging and logistics, saving you the trouble of coordinating multiple suppliers.
24-hour technical support is available for prototype evaluation and after-sales technical guidance.
Customized solutions are offered including exclusive machining processes, tailored tooling and personalized packaging to fit diverse application scenarios.
Summary: Zorapid — Your Top Choice for Medical & Industrial Grade Stainless Steel Precision Machining
Stainless steel CNC machining is recognized as a tough challenge in precision manufacturing, especially for medical and industrial components that demand extremely high standards in precision, quality and compliance.
With over 20 years of in-depth industry experience, cutting-edge processing technology, stringent quality control, efficient delivery capacity and cost-effective services, Zorapid has effectively solved three major machining difficulties of stainless steel: work hardening, tool adhesion and part deformation. We have also achieved technological breakthroughs in ultra-precision micro holes, ultra-thin wall structures and complex cavities of high-hardness materials.
We provide one-stop stainless steel precision machining solutions for clients engaged in medical implants, precision instruments and high-end industrial equipment.
Adhering to the philosophy of Precision builds quality, speed creates value, we manufacture all components in strict accordance with medical-grade standards, respond swiftly to customer demands with fast delivery, and help clients reduce costs and improve efficiency via favorable pricing.
Whether you need R&D prototyping, small-batch trial production or mass production delivery, Zorapid is your reliable partner for precision manufacturing.
FAQ
What is the difference between medical-grade and industrial-grade stainless steel machining?
Medical-grade products must satisfy requirements of biocompatibility, sterility, burr-free surface and zero residual substance. Raw materials shall be medical-certified such as medical-grade 316L. Post-processes include electropolishing, passivation and sterile vacuum packaging, with biocompatibility reports, material certificates and full-process traceability records provided.
Industrial-grade products focus on mechanical strength, corrosion resistance and dimensional stability. Common post-treatments like general polishing and black oxide finish are acceptable without sterilization process, leading to relatively lower cost.
What machining precision can be achieved for stainless steel?
Zorapid achieves precision up to ±0.005mm and surface roughness Ra≤0.2μm for medical-grade stainless steel.
For industrial-grade parts, the tolerance reaches ±0.01mm with surface roughness Ra≤0.8μm. Higher precision is customizable per client requirements.
What is the minimum hole diameter and wall thickness we can process?
The smallest micro hole can reach φ0.1mm via EDM drilling. The minimum wall thickness is 0.3mm supported by five-axis linkage and low-temperature cutting technology. We can fabricate deep holes with depth-to-width ratio over 10:1, suitable for miniature precision medical and industrial components.
What is the minimum order quantity and delivery lead time?
MOQ starts from 1 piece with no order limit.
- Prototype orders: 3-5 days delivery, 1-day delivery for 24-hour urgent service
- Small batch orders (10-100 pcs): 5-7 days
- Mass orders (over 1000 pcs): 7-10 daysSchedules are adjustable according to project progress.
Is customized machining available?
Yes. Zorapid offers full customization service. We customize raw materials, machining processes, tooling fixtures, post-treatment solutions and packaging plans based on clients’ drawings, samples and actual demands. Our products fit various applications including medical implants, precision instruments and industrial equipment. Free DFM analysis and process optimization suggestions are also provided.
