5-Axis Aluminum Machining for UAV Frame Components

Table of Contents

Published：Zorapid.Ltd

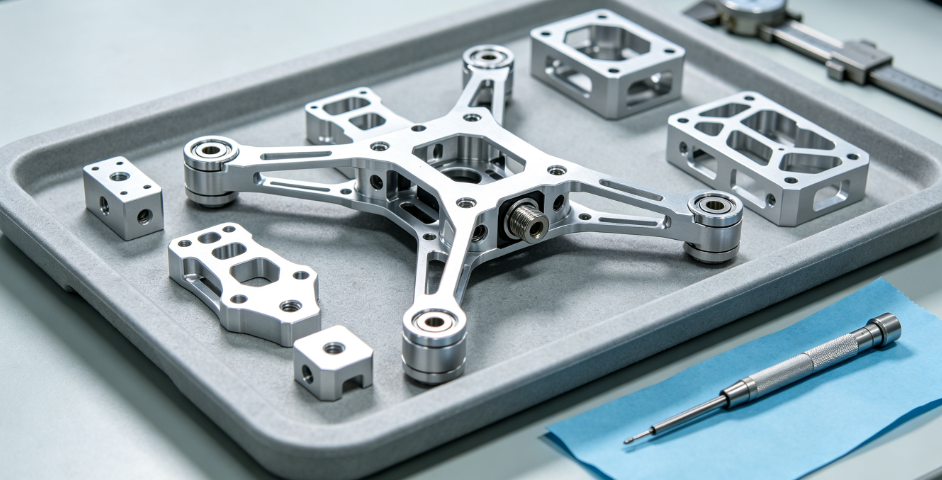

Modern UAV (Unmanned Aerial Vehicle / Drone) airframes require ultra-light, high-stiffness monolithic aluminum chassis: complex curved geometry, integrated hardpoints, sensor cutouts, battery cavities, thin webs, and precision mount interfaces for cameras, gimbals, motors, and avionics.

5-axis CNC machining is the primary manufacturing method for high-performance industrial, long-endurance, and military UAV frames, enabling single-setup production of complex contoured geometry, precise mating interfaces, and optimized weight-saving lattices/webs that 3-axis machining cannot produce.

Key goals: maximize stiffness-to-weight ratio, minimize residual stress distortion, control thin-wall chatter, maintain GD&T precision for vibration-sensitive avionics mounts, manage corrosion risk, and meet aerospace/UAS compliance standards (AS9100, RTCA DO-160, FAA).

Common UAV Frame Aluminum Alloys & Material Specs

Primary Alloys

  1. 7075-T6 / T651 (Al-Zn-Cu) – Dominant High-Performance UAV Alloy
    • High specific strength, ideal for primary load-bearing frames, main chassis, fuselage ribs, arms
    • Risk: high residual stress, prone to warpage, corrosion susceptible, strict stress-relief requirements
    • T651 = pre-stress-relieved plate (preferred over raw T6 for dimensional stability)
  2. 6061-T6 / T651 – General & Smaller UAV Frames
    • Lower strength, easier machining, better corrosion resistance, lower residual stress, good for secondary frames, payload brackets, consumer UAVs
    • Lower cost, excellent anodizing quality
  3. 6063, 2024-T3 – Secondary structures, stringers, longeron components
    • 2024-T3: fatigue-resistant for cyclic vibration arms; 6063: simple extruded frame parts
  4. Material Pre-Requisite: Use pre-stress-relieved plate/blanks, verify MTR mill test reports, full heat lot traceability for military/commercial certified UAV programs, XRF alloy validation for critical flight hardware.

Key UAV Frame Design Metrics

  • Core Drivers: Weight reduction (thin webs 0.8–1.5mm typical), torsional stiffness, vibration damping, mount positional accuracy, crash durability, corrosion resistance
  • Critical GD&T: Motor mount bolt pattern concentricity, gimbal interface flatness, avionics connector hole positions, payload datum alignment
Materials

Unique 5-Axis UAV Frame Machining Challenges

  1. Ultra-Thin Web Geometry: Large thin panel structures, deep pockets, variable wall thickness → severe chatter, deflection, vibration resonance, dimensional drift
  2. Complex Freeform Contours: blended aerodynamic surfaces, compound angles, sculpted arm transitions → 5-axis collision risk, long cycle times, tool reorientation errors
  3. Residual Stress Distortion: 7075 aluminum has high locked-in residual stress; heavy asymmetric material removal causes slow post-machining warpage
  4. Vibration Sensitivity: UAV frames operate under high cyclic vibration; micro-notches, poor surface finish, residual tensile stress lead to fatigue cracking and vibration resonance
  5. Large Asymmetric Blank Geometry: oversized frame blanks, deep pocketing, long cantilever arms → fixturing instability, poor repeatability
  6. Corrosion Risk & Anodizing Dimensional Shift: thin aluminum walls can distort during anodizing; mask precision datums/mounting surfaces
  7. Regulatory & Traceability Requirements: Commercial UAS/FAA, military DoD, AS9100 traceability, DO-160 environmental validation for certified platforms
5 Axis CNC Machining

Machine, Fixturing & Workholding Setup

Machine Requirements

  • Full 5-axis CNC (trunnion / gantry / vertical 5-axis): rigid boxway construction, vibration damping, high-torque spindles, linear glass scales, thermal compensation, full 3D collision simulation software
    • Trunnion 5-axis: ideal for mid-size UAV arms, payload frames, smaller fuselage ribs
    • Gantry 5-axis: large fixed-wing UAV fuselage panels, wing ribs
    • Enclosed temperature-controlled machine enclosures (±1–2°C) for precision avionics mount zones
    • Spindle: high-speed HSK-A63 / HSK-F63, balanced high-RPM spindles (15k–24k RPM typical for aluminum)
    • Full 3D machine simulation (Vericut, NX, Mastercam) to validate B/C axis travel limits and avoid catastrophic crashes

Fixturing & Workholding

  1. Custom Vacuum Fixtures (Primary for Large Thin Panels):
    • Full-area vacuum pod / spoilboard fixturing to evenly support thin webs, reduce chatter/deflection
    • Vacuum gaskets, sealant validation, pressure monitoring; avoid hard direct clamping on thin webs (indentation, distortion risk)
    • Add sacrificial support ribs, honeycomb backing, or fixturing bridge structures for ultra-thin regions (removed in final light finishing passes)
  2. Datum Locator Jigs: 3-point repeatable fixture datums (pre-machined aluminum fixture plates), standardized fixture pin patterns
    • Define primary datum on a thick central chassis spine (not thin arms/webs)
    • Avoid clamping on final critical mount/gimbal datum zones
  3. Multi-Sided Fixturing Strategy:
    • First setup: rough 5-axis pocketing + rough contouring on main side
    • Second controlled setup: reverse side finishing, validated via probing to maintain datum alignment
    • Minimize re-fixture count to reduce tolerance stack-up
  4. Balancing: validate spindle/workpiece balance for high-RPM aluminum machining to reduce vibration

5-Axis Tooling & Cutting Parameters for Aluminum UAV Frames

Tool Selection

  1. Tool Type: High-helix (35°–45°) 2/3 flute solid carbide end mills, polished / DLC coated (diamond-like carbon) for low friction, reduced BUE (built-up edge)
    • Long reach areas: use vibration-damped extended tool holders, short tool overhang as much as possible
    • Micro thin-wall finishing: small diameter fine-grain carbide, high helix, variable pitch flutes (chatter suppression)
    • Drilling/tapping: high-speed aluminum drills, form taps, thread milling for motor mount holes
  2. Coolant & Lubrication:
    • Water-soluble synthetic coolant, through-spindle high-pressure coolant (70 bar+) for chip evacuation, reduce heat buildup
    • Mist lubrication for ultra-thin finish passes to minimize coolant-induced dimensional shift
    • Full chip evacuation to prevent re-cutting chips, surface scratching, and chatter
    • Filter coolant to remove fine aluminum swarf (prevents surface marring)
  3. Baseline 7075/6061 Aluminum 5-Axis Parameters (General):
    • Rough Milling (Trochoidal High-Speed Machining – HSM):
      • Spindle RPM: 12,000–20,000 RPM
      • Feed Rate: 5–10 m/min
      • Radial engagement: 10–15% of tool diameter, light axial depth of cut, constant chip load adaptive cycles
      • Trochoidal milling = critical to reduce radial load and residual stress
    • Finish Milling (Thin Wall / Aerodynamic Surfaces):
      • Light depth of cut (0.05–0.15mm), higher feed, controlled constant chip load
      • Simultaneous 5-axis finish passes with smooth axis blending, reduce B/C axis jerk
      • Spindle speed variation (SSV) for thin-wall chatter suppression
    • Final Mirror Finish Pass: single light skim pass, minimal heat input
    • Surface Finish Targets:
      • Aerodynamic outer surfaces: Ra 0.8–1.6 μm
      • Motor/gimbal/avionics mount datums: Ra 0.4 μm or better
      • Internal non-critical webs: Ra 3.2 μm (reduce cycle time)
  4. Tool Monitoring: spindle load monitoring, periodic roughness validation, scheduled tool change cycles to avoid gradual thin-wall deflection/chatter
Tolerances

DFM Design Rules for 5-Axis UAV Frames

1. Thin Wall & Aspect Ratio Rules

  • Minimum validated wall thickness: ≥1.0mm (6061), ≥1.2mm (7075) (avoid <0.8mm general production thin walls without sacrificial support geometry)
  • Add gradual blended fillet transitions (R≥1mm) between arms, webs, and main chassis; eliminate sharp internal corners (fatigue risk + chatter hotspots)
  • Avoid long cantilever arms with extreme L/D ratios (>15) without intermediate support ribs or DFM stiffener geometry
  • Use gradient lattice/rib geometry validated via FEA simulation for weight reduction (not random micro-thin webs)

2. GD&T & Datum DFM

  • Define unified primary datum on the thick central chassis spine (fixed for all 5-axis setups)
  • Zone-based GD&T: tight tolerances only on motor mount, gimbal, avionics, payload datums; relax general aerodynamic/non-mating geometry to ±0.05mm baseline CNC tolerance
  • Group common-angle 5-axis features to reduce continuous simultaneous 5-axis travel time and axis jerk
  • Avoid deep blind pockets, full through-cuts in critical load paths, and unvalidated complex 5-axis undercuts

3. Material & Stock DFM

  • Use standard plate sizes, pre-stress-relieved blanks (7075-T651), minimize asymmetric heavy pocketing
  • Add sacrificial fixture lugs (non-flight geometry) to main chassis; remove lugs in final finishing passes
  • Avoid full monolithic ultra-large single parts where modular assembly is validated (reduce rework risk, improve field repairability)

4. Anodizing Masking DFM

  • Design defined masking zones on critical datum/mount surfaces (flat, easy-to-mask geometry)
  • Add masking grooves/features for repeatable silicone masking fixtures
  • Avoid thin critical mount webs where anodizing thickness variation will alter GD&T fit

5. Vibration DFM

  • Validate FEA modal analysis to avoid resonant frequencies matching UAV flight vibration frequencies
  • Add controlled stiffener patterns, avoid repetitive identical thin-web patterns that amplify vibration

Residual Stress & Dimensional Stability Control

  1. Staged Machining + Intermediate Stress Relief (Critical for 7075 UAV Frames)
    • Step 1: Trochoidal rough 5-axis pocketing (light radial loading), remove bulk material in multiple passes to reduce asymmetric residual stress
    • Step 2: Intermediate low-temperature stress relief annealing (7075: ~120°C–150°C, slow cool, validated cycle)
      • Do not over-anneal (risk hardness reduction)
    • Step 3: Light finish 5-axis machining after stress relief cycles
    • Step 4: Post-finish soak validation (24–48hr ambient soak + CMM check) to detect delayed warpage
    • Use adaptive trochoidal milling to minimize cutting-induced residual tensile surface stress
  2. Thermal Machine Control: enable machine thermal compensation, run spindle warm-up cycles, consistent ambient temperature
  3. SPC Monitoring: track key datum flatness, hole pattern positional tolerance over batches; flag drift early
  4. Avoid aggressive deep single-pass roughing that creates heavy residual stress in thin webs

Surface Finishing, Corrosion Protection & Anodizing

1. Deburring & Edge Breaking

  • Controlled micro-brush deburring, vibratory tumbling (non-critical zones)
  • Break sharp edges (R0.2–0.3mm) to eliminate fatigue crack initiation micro-notches
  • No aggressive hand grinding (introduces residual stress, surface damage)

2. Anodizing (Primary UAV Corrosion Treatment)

  • Type II Clear Anodize (general UAV), Type III Hard Anodize (high-wear motor mount zones only)
  • Mask critical GD&T datum/mount surfaces with validated silicone masking jigs before anodizing
  • Validate anodize thickness (10–25μm typical) to avoid dimensional shift on precision interfaces
  • Post-anodize sealing (hot water / dichromate per specs), RoHS compliant
  • Conduct salt spray testing (ASTM B117) for long-endurance / coastal UAV programs

3. Additional Coatings

  • UV-resistant polyurethane topcoat for outdoor UAV airframes
  • Conductive coating / IMI plating for EMC/EMI shielding on avionics bays (compliant with DO-160)
  • Avoid full hard anodizing across entire thin frame (risk of warpage, brittleness)

4. Final Cleaning

  • Ultrasonic solvent/DI water wash to remove coolant residue, prevent hidden corrosion
  • Dry fully, apply corrosion inhibitor for long-term storage
Surface Finishing

Inspection, Traceability & Compliance

Dimensional Metrology

  • CMM 3D GD&T inspection of critical datums, motor mount hole patterns, gimbal interfaces
  • Optical 3D scanning (blue light scan) for full aerodynamic surface validation
  • Profilometer surface roughness measurement on fatigue/vibration critical zones
  • SPC statistical process control for key positional tolerances (avionics/motor mounts)

NDT & Material Validation

  • XRF alloy verification, MTR heat lot traceability for certified UAS programs
  • Dye penetrant inspection (DPI) for primary structural UAV frames (military/commercial certified platforms)
  • Modal vibration testing for dynamic validation, fatigue cycle validation

Documentation & Traceability

  • AS9100 / ISO9001 batch travelers, heat lot logs, FAIR (AS9102) first article inspection for regulated UAV programs
  • UID / laser data matrix marking (non-fatigue zones) for traceability
  • RTCA DO-160 environmental test validation (vibration, temperature, humidity) records
  • Full revision control (PLM/ECO) for regulated UAS production, formal PPAP if required

Regulatory Compliance

  • Commercial UAS: FAA 14 CFR, ASTM F3322 UAS standards
  • Military UAS: DoD DFARS, AS9100, NADCAP special process compliance (if applicable)
  • RoHS / REACH compliance for civil UAV electronics integration

Common Defects & Troubleshooting

  1. Thin Wall Chatter / Wavy Surface Finish
    • Cause: excessive radial load, long tool overhang, resonant RPM, insufficient vacuum support, unbalanced spindles
    • Fix: trochoidal HSM, SSV spindle speed variation, add sacrificial supports, shorten tool overhang, validate vacuum fixturing
  2. Post-Machining Delayed Warpage (7075 Common Issue)
    • Cause: raw billet residual stress, aggressive roughing cycles, missing intermediate stress relief, asymmetric pocketing
    • Fix: pre-stress-relieved blanks, staged roughing + validated low-temp stress relief, 24hr soak validation, SPC tracking
  3. Motor Mount Hole Pattern Tolerance Drift
    • Cause: 5-axis axis drift, thermal variation, re-fixture error, residual stress
    • Fix: thermal compensation, single-setup 5-axis where possible, datum probing cycles, SPC monitoring
  4. Fatigue Micro-Notches / Poor Surface Finish
    • Cause: dull tools, BUE aluminum build-up, unvalidated finishing cycles, hand grinding
    • Fix: DLC polished 2/3 flute carbide, scheduled tool changes, consistent finish passes, formal deburr SOP
  5. Anodizing Dimensional Shift / Masking Failure
    • Cause: poor masking, full thin frame hard anodizing, unvalidated anodize cycles
    • Fix: repeatable silicone masking jigs, zone selective anodizing, validate anodize thickness with gauges
  6. Chip Re-Cutting & Surface Scratches
    • Cause: poor chip evacuation, insufficient coolant, re-entrant 5-axis geometry
    • Fix: through-spindle coolant, high-speed trochoidal cycles, full chip evacuation simulation

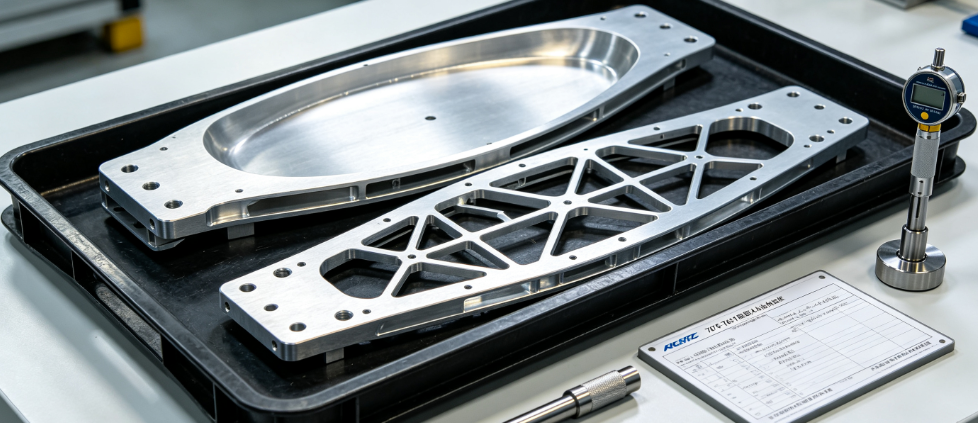

Real-World Case Study: Long-Endurance Fixed-Wing UAV Fuselage Rib

Original Process

5-axis rough + finish single-pass deep pocketing, raw T6 plate, full hard anodize, 100% CMM full scan inspection

  • Issues: severe chatter, 0.2mm post-machining warpage, 20+ hour cycle time, repeated rework, vibration fatigue failures

Revised 5-Axis DFM & Machining Workflow

  1. Pre-stress-relieved 7075-T651 plate, FEA validated gradient rib DFM with 1.5mm minimum wall thickness, blended R1.5mm fillets
  2. Trochoidal high-speed roughing + intermediate low-temperature stress relief
  3. 5-axis single-setup finish with vacuum spoilboard fixturing, variable pitch DLC carbide tools, SSV chatter suppression
  4. Silicone masking of central datum zones, selective Type II clear anodizing only
  5. CMM SPC sampling validation, 24hr soak dimensional check, DPI NDT structural validation

Results

  • Total cycle time reduced 35%, residual warpage reduced to <0.03mm
  • No vibration fatigue failures in 1,000+ flight hours, consistent gimbal mount positional tolerance
  • Passed DO-160 vibration/environmental testing, FAA UAS compliance validation

FAQ

Which aluminum alloy is best for high-performance long-endurance UAV main frames?

Pre-stress-relieved 7075-T651 for primary load-bearing frames, validated via FEA and vibration fatigue testing. 6061-T6 is suitable for smaller consumer/secondary UAV frames for cost and corrosion balance. Avoid non-stress-relieved raw 7075-T6 for large monolithic frames due to severe residual stress warpage risk.

How to reduce 5-axis UAV frame thin-wall chatter?

Use vacuum spoilboard fixturing + sacrificial support ribs, trochoidal high-speed milling, variable pitch fluted carbide tools, spindle speed variation (SSV), light finish passes, and minimize tool overhang. Validate FEA modal analysis to avoid resonant frequencies.

Can full monolithic 5-axis UAV frames replace bolted multi-part frames?

Yes for small/medium UAVs to reduce vibration and assembly error, but add formal residual stress validation and consider modular DFM for large fixed-wing UAVs for field repair and manufacturing lead time balance.

What anodizing type for UAV airframes?

Type II clear anodize for general UAV outer frames; limited Type III hard anodize only for high-wear motor mount zones (not thin webs). Always mask critical GD&T datums to avoid dimensional shift and validate thickness.

How much post-machining soak validation time is needed for 7075 UAV frames?

24–48 hours ambient soak followed by CMM critical GD&T check to identify delayed residual stress warpage before anodizing and assembly.

What 5-axis simulation software is essential for complex UAV frame geometry?

Full machine simulation software (Vericut, NX CAM Simulation) including trunnion/B-axis travel limits, fixturing, and spoilboard geometry to eliminate 5-axis collision risk and validate finish passes.

How to balance weight reduction and manufacturability for UAV frames?

FEA gradient rib DFM (not arbitrary ultra-thin webs), set validated minimum wall thickness, add blended fillets, reduce non-critical 5-axis continuous zones, and use zone GD&T tolerancing. Validate fatigue/vibration performance with physical testing, not just simulation.

Do I need NADCAP for civilian commercial UAV frames?

Typically not mandatory unless specified by the prime / FAA certified program, but formal AS9100 traceability, FAIR, and SPC validation are strongly recommended for BVLOS (beyond visual line of sight) UAS operations. Military UAV programs follow formal NADCAP/DoD specs.

What is the typical surface roughness target for UAV gimbal/motor mount datums?

Ra ≤0.4μm for precision gimbal/motor mount datums to reduce micro-vibration and maintain gimbal stability; Ra 0.8–1.6μm for general aerodynamic surfaces for drag and corrosion balance.

How to manage 5-axis UAV frame production lead time?

DFM zone GD&T rationalization, pre-stress-relieved blanks, validated repeat 5-axis CAM programs, vacuum spoilboard repeat fixturing, reduce full-batch 100% CMM inspection to SPC sampling validation, schedule anodizing in parallel where possible (masked zones).

Quick 5-Axis UAV Frame Machining Checklist

Material & DFM Pre-Check

Pre-stress-relieved aluminum blank (7075-T651 / 6061-T651), MTR heat lot traceability validated

FEA validated minimum wall thickness (≥1.2mm for 7075), blended fillets R≥1mm

Unified primary datum defined on thick central chassis spine, color-coded zone GD&T

DFM sacrificial fixture lugs / vacuum spoilboard geometry designed upfront

Modal FEA vibration check completed to avoid UAV flight resonant frequencies

5-Axis Machine & Fixturing Setup

Full 5-axis machine simulation validated (Vericut/NX), B-axis travel limits verified

Vacuum spoilboard / pod fixturing validated, pressure monitoring enabled

Spindle warm-up cycles + thermal compensation enabled, spindle balance checked

Short rigid DLC 2/3 flute carbide tooling, minimal tool overhang configured

Trochoidal high-speed roughing cycles programmed, adaptive chip load enabled

Machining & Residual Stress Control

Intermediate validated low-temperature stress relief after roughing (7075 frames)

SSV spindle speed variation enabled for thin-wall finish passes, controlled light depth of cut

High-pressure through-spindle coolant enabled, chip evacuation validated

24–48hr post-finish soak validation + CMM critical GD&T check

SPC monitoring of motor/gimbal mount positional tolerances

Finishing & Corrosion Protection

Controlled micro-deburr / edge breaking (R0.2–0.3mm), no aggressive grinding

Repeatable silicone masking jigs for critical datum zones before anodizing

Selective anodizing (Type II clear general), validate coating thickness

Full ultrasonic cleaning, post-anodize sealing, corrosion validation (ASTM B117 if required)

Conductive/EMI coating applied for avionics bays per DO-160 specs

Inspection & Compliance

CMM GD&T validation of critical motor/gimbal mount features, SPC sampling setup

DPI NDT / fatigue validation for primary structural UAV frames (regulated programs)

AS9102 FAIR, batch travelers, MTR logs, traceability UDI marking complete

Environmental/DO-160 vibration validation documentation (certified UAV programs)

RoHS/REACH compliance validation, formal ECO revision control

Closing Wrap-Up

5-axis aluminum UAV frame manufacturing balances aerodynamic geometry, ultra-lightweight DFM design, thin-wall chatter suppression, residual stress control, vibration fatigue performance, and UAS regulatory compliance. The biggest risks are 7075 residual stress warpage, thin-wall chatter, vibration resonance, and anodizing datum distortion—not raw 5-axis speed.

Adopt vacuum spoilboard 5-axis fixturing, trochoidal high-speed roughing, validated staged stress relief, zone GD&T DFM rules, and formal soak validation for consistent dimensional stability and flight reliability. Always validate DFM weight reduction changes via physical vibration/fatigue testing, not purely FEA simulation.

If you share a UAV frame STEP file and alloy/batch specs, I can create a validated 5-axis rough/finish CAM template and DFM review.

About Us

Related Posts
