If you’re in manufacturing, product design, or engineering, you’ve likely heard the buzz about 5-axis CNC machining. But what makes it a game-changer for complex parts, tight tolerances, and fast turnaround? Let’s break it down—straightforward, no fluff, with real tech details, materials, case studies, and why Zorapid is your go-to partner for the impossible jobs.

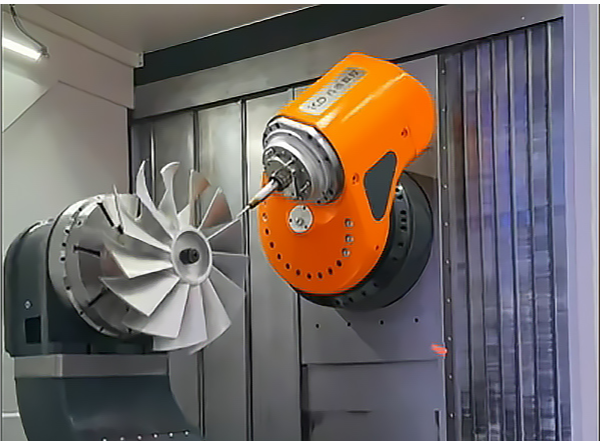

What Is 5-Axis CNC & Its Core Advantages (Tech Deep Dive)
First, the basics: 3-axis CNC moves the tool along X (left-right), Y (front-back), Z (up-down)—only linear. 5-axis CNC adds two rotary axes (A/B or C), so the tool/workpiece tilts and rotates while cutting. This means simultaneous 5-direction movement—and that’s where the magic happens.
Key Advantages (Why It Beats 3-Axis Every Time)
Single Setup = Zero Alignment Errors
3-axis needs 3–4 setups for complex parts (e.g., impellers, turbine blades). Each setup adds ±0.002–0.005” alignment error and hours of re-fixturing.
5-axis does it all in one clamp: No repositioning, no cumulative error, no scrap from misalignment.
Unmatched Precision (±0.002mm Tolerances)
With rotary axes, we use short, rigid tools (no long, wobbly tools for deep cavities). Less vibration = smoother cuts (Ra ≤ 0.2μm) and micron-level accuracy. Perfect for medical, aerospace, and optical parts.
Cuts Any Complex Geometry
3-axis struggles with freeform surfaces, deep cavities, undercuts, and 3D contours (think turbine blades, orthopedic implants, or aerospace brackets).
5-axis? No problem. It tilts the tool to reach every angle, eliminating “hard-to-cut” zones.
Faster Cycle Times (30–60% Faster Than 3-Axis)
- No setup downtime (saves 30–50% of total time)
- No secondary operations (deburring, polishing) needed
- Shorter tools = faster feed rates (20–50% higher)
Result: Complex parts that take 3-axis 6–8 weeks? We deliver in 10–14 days.
Lower Costs (Less Scrap, Less Labor)
- Scrap rate drops from 8% (3-axis) to 1.2% (5-axis)
- Less manual labor (no re-fixturing, no secondary work)
- Fewer fixtures (saves design and manufacturing costs)
Impossible Parts We Machine
At Zorapid, we specialize in the jobs other shops reject. Here’s what we do that 3-axis and standard CNC can’t:
Deep Cavities & Undercuts (15:1 Depth-to-Width Ratio)
3-axis needs long, fragile tools that vibrate and break. 5-axis tilts the workpiece, so we use short, stiff tools to machine deep, narrow cavities (e.g., mold inserts, hydraulic valve blocks) with zero tool deflection.
Freeform & Organic Surfaces
Think aerospace turbine blades, medical bone implants, or optical reflectors—shapes with continuous, flowing curves. 3-axis can only approximate these (poor surface finish, slow speed). 5-axis follows the contour perfectly, with mirror-like Ra 0.2μm finishes.
High-Hardness Materials (HRC 60+)
Materials like Inconel 718, titanium Ti-6Al-4V, and hardened tool steels (S136, H13) are brutal for 3-axis (slow cutting, tool wear, heat damage). Our 5-axis machines use temperature-controlled cooling and optimized tool paths to cut these materials efficiently—without burning or warping.
Micro & Ultra-Precision Features
We machine micro-holes (φ0.05mm), thin walls (≤0.3mm), and tiny gears with ±0.002mm accuracy. 3-axis can’t reach these tolerances—period.
The Zorapid Difference: We don’t just machine parts—we solve impossible manufacturing challenges. If your print has complex geometry, tight tolerances, or hard materials, we’re your team.
Materials We Master (Metals & Plastics for Every Industry)
5-axis CNC works with virtually any material—we’ve machined hundreds of grades for aerospace, medical, automotive, and industrial clients. Here’s our most common lineup:
Metals (High Strength, Precision Critical)
| Material | Grades | Key Benefits | Best For |
|---|---|---|---|
| Aluminum | 6061-T6, 7075-T6, 2024 | Lightweight, easy to machine, great surface finish | Aerospace frames, automotive parts, heat sinks |
| Stainless Steel | 304, 316L, 17-4PH | Corrosion-resistant, high strength | Medical devices, food machinery, marine parts |
| Titanium | Ti-6Al-4V (Grade 5), CPTi (Grade 2) | Biocompatible, high strength-to-weight | Orthopedic implants, aerospace blades, surgical tools |
| High-Temp Alloys | Inconel 718, Hastelloy | Heat-resistant, extreme durability | Jet engine components, turbine parts |
| Tool Steel | S136, H13, SKD11 | Hard (HRC 50–60), wear-resistant | Injection molds, die-cast molds |
Engineering Plastics (Lightweight, Non-Magnetic)
- PEEK: Medical implants, high-temperature parts (biocompatible, strong)
- PMMA (Acrylic): Optical parts, lenses, light guides (clear, precise)
- Nylon/Delrin: Gears, bearings, structural parts (wear-resistant, low friction)
- ABS: Prototypes, consumer goods (easy to machine, cost-effective)
Why This Matters: We don’t just machine one material—we tailor tools, speeds, and cooling to each material’s unique properties for perfect results every time.
Real-World Case Studies (Proven Results for Our Clients)
Let’s get concrete—here are 3 real projects where 5-axis solved critical problems for our clients.
Case Study 1: Aerospace Turbine Blade (Titanium Ti-6Al-4V)
Client: Aerospace component manufacturer
Problem: 3-axis required 4 setups (52 mins/part), ±0.003” error, 8% scrap rate. Blades failed aerodynamic testing due to poor surface finish.
Zorapid Solution: 5-axis single-setup machining with optimized tool paths.
Results:
- Cycle time: 18 mins/part (65% faster)
- Tolerance: ±0.0005” (6x more accurate)
- Scrap rate: 1.2% (85% reduction)
- Surface finish: Ra 0.2μm (passed aerospace inspection)
Case Study 2: Medical Interbody Fusion Cage (Titanium)
Client: Medical device company
Problem: Complex porous surface (for bone ingrowth) and tight tolerances (±0.005mm). 3-axis couldn’t replicate the porous geometry accurately.
Zorapid Solution: 5-axis with micro-tooling and high-precision positioning.
Results:
- Perfect porous surface replication (matched design specs)
- 100% dimensional compliance (passed ISO 13485 audit)
- 40% faster production than traditional methods
Case Study 3: Automotive Headlight Reflector (Aluminum 6061-T6)
Client: Automotive lighting supplier
Problem: Complex optical curves with 500+ micro-features. 3-axis left tool marks, requiring hand polishing (slow, inconsistent).
Zorapid Solution: 5-axis high-speed machining with diamond tools.
Results:
- Mirror finish (Ra 0.2–0.4μm, no hand polishing needed)
- All micro-features replicated perfectly (optical performance validated)
- 30% faster delivery than competitor quotes
Key Takeaway: These aren’t test projects—they’re production parts shipped to global clients. Our 5-axis process delivers consistency, speed, and quality that 3-axis can’t match.
Top Applications (Where 5-Axis Shines Brightest)
5-axis CNC isn’t just for aerospace or medical—it’s used across every high-tech industry that demands precision and complexity. Here are the top sectors:
Aerospace & Defense
- Turbine blades, impellers, and engine components
- Aircraft structural brackets and landing gear parts
- Missile and drone components (lightweight, high strength)
Medical & Healthcare
- Orthopedic implants (hips, knees, spinal cages)
- Surgical instruments (scalpels, forceps, drill guides)
- Medical device housings and precision components
Automotive (High-End & EV)
- EV battery trays and housing components
- Engine cylinder heads and intake manifolds
- Luxury car interior trim and optical parts
- Mold inserts for automotive plastics
Industrial & Precision Engineering
- Hydraulic valve blocks and manifolds
- Robotics joints and actuator components
- Optical instrument parts (lens holders, mirrors)
- Complex mold and die components
Energy (Oil & Gas, Renewable)
- Gas turbine components for power generation
- Oil and gas downhole tools (high-temperature, high-pressure)
- Wind turbine parts and solar equipment components
- No Matter Your Industry: If you need complex, precise parts, 5-axis is the answer—and Zorapid has the expertise to deliver.
Delivery Speed (Fastest Turnaround in the Industry)
We know speed is critical—delays kill product launches, increase costs, and put you behind competitors. At Zorapid, we’ve optimized every step for speed without sacrificing quality.
Our Turnaround Times (vs. Industry Standard)
| Part Complexity | Industry Standard | Zorapid Delivery |
|---|---|---|
| Simple 5-axis parts | 2–3 weeks | 3–5 days |
| Complex 5-axis components | 6–8 weeks | 10–14 days |
| Urgent prototypes | 1–2 weeks | 24–48 hours (emergency service) |
| Low-volume production (10–50 parts) | 4–6 weeks | 7–15 days |
How We Do It
- 24/7 Lights-Out Machining: Automated pallet systems run overnight and weekends—no downtime
- Parallel Processing: Multiple 5-axis machines work on different parts simultaneously
- In-House Expertise: No outsourcing—programming, machining, and inspection all under one roof
- Rapid Prototyping Workflow: Dedicated team for urgent projects (priority scheduling)
Real Promise: We don’t just quote fast times—we deliver on time, every time. For urgent jobs, we’ve shipped parts in 48 hours that other shops said would take weeks.
Why Choose Zorapid? (8 Unbeatable Benefits)
Plenty of shops offer 5-axis machining—but none deliver the combination of precision, speed, expertise, and customer service that Zorapid does. Here’s why we’re the top choice for global engineers:
1. 20+ Years of 5-Axis Expertise
We’re not new to 5-axis—our team has decades of hands-on experience machining complex parts for aerospace, medical, and automotive clients. We’ve seen every challenge and solved it.
2. State-of-the-Art 5-Axis Machines
Our facility is equipped with high-precision 5-axis centers (including iSLM metal 3D printers for hybrid projects) with ±0.002mm positioning accuracy and Ra ≤ 0.02μm surface finish capability.
3. ISO-Certified Quality (AS9100, ISO 13485, IATF 16949)
We meet the strictest industry quality standards—100% inspection for every part, with full dimensional reports and material certifications. No surprises, no defects.
4. Impossible Part Specialists
We thrive on complex jobs other shops reject. If your part has deep cavities, freeform surfaces, tight tolerances, or hard materials, we’re your team.
5. Ultra-Fast Delivery (24–48hr Urgent Service)
Speed is our middle name. We deliver prototypes in days, not weeks—and production parts in half the time of competitors.
6. Material Versatility (Metals & Plastics)
From titanium and Inconel to PEEK and acrylic, we machine any material with tailored processes for perfect results.
7. Transparent Pricing & No Hidden Fees
We provide detailed, upfront quotes with no surprises. Our pricing is competitive—especially for complex parts where we save you money on scrap and labor.
8. Global Customer Support (English-Speaking Team)
We work with clients worldwide—our English-speaking engineering team is available 24/7 to answer questions, provide updates, and solve problems. No language barriers, no miscommunication.
At Zorapid: We don’t just machine parts—we’re your precision manufacturing partner, invested in your success.
Final Summary (5-Axis = Precision, Speed, Possibility)
Let’s wrap it up: 5-axis CNC machining is the most advanced manufacturing technology for complex, high-precision parts. It delivers:
- Unmatched precision (±0.002mm tolerances, mirror finishes)
- Faster production (30–60% quicker than 3-axis)
- Ability to machine “impossible” geometries
- Lower costs (less scrap, less labor)
- Versatility across materials and industries
For engineers and product designers, 5-axis isn’t just a tool—it’s a competitive advantage. It lets you design parts that were once impossible, launch products faster, and stay ahead of the competition.And when you choose Zorapid, you’re not just getting a machining service—you’re getting a team of experts who specialize in the impossible, deliver on time, and quality that exceeds expectations.
FAQs (Answers to Your Top Questions)
Is 5-axis machining more expensive than 3-axis?
For simple parts, 3-axis may be cheaper. But for complex parts (multiple setups, tight tolerances), 5-axis is more cost-effective—less scrap, less labor, faster delivery. We provide transparent quotes to compare.
What file formats do you accept?
We work with STEP, IGES, STL, SolidWorks, AutoCAD, and Fusion 360 files. Our team can also help with DFM (Design for Manufacturing) optimization to reduce costs and improve quality.
What’s the minimum order quantity (MOQ)?
No MOQ—we support 1-piece prototypes to low-volume production (100+ parts). Perfect for R&D, testing, and small-batch projects.
Do you offer surface finishing services?
Yes! We provide anodizing, plating, polishing, powder coating, and medical-grade passivation—all in-house for faster turnaround.
How do you ensure quality control?
Every part undergoes 100% dimensional inspection with CMM (Coordinate Measuring Machine) and optical comparators. We provide full inspection reports and material certifications for every order.
Can you help with design for manufacturing (DFM)?
Absolutely! Our engineering team reviews every design for machinability, cost optimization, and tolerance feasibility—we’ll suggest changes to make your part easier to machine without compromising performance.
Ready to Get Started?If you have a complex part that needs 5-axis precision, fast delivery, and expert craftsmanship, contact Zorapid today for a free, no-obligation quote. Our English-speaking engineering team is ready to help you turn your design into a high-quality part—fast.
