PPAP & FMEA Document Standards for Auto CNC Buyers

Published：Zorapid.Ltd

For automotive CNC precision machined components (chassis, EV motor housings, brake valve bodies, sensor housings, transmission shafts), buyers enforce IATF 16949 + AIAG PPAP 4th Edition + AIAG-VDA FMEA (2019 unified edition) as mandatory baseline documentation rules. All suppliers must align documents to CNC machining process characteristics; buyers conduct pre-award document audits, PPAP level-3 full submission before mass production, and periodic FMEA revalidation audits.

Core binding standards:

1. IATF 16949:2016 Automotive QMS (mandatory for Tier1/Tier2 CNC suppliers)
2. AIAG PPAP Manual 4th Ed: 18 core submission elements, 5 submission levels
3. AIAG-VDA FMEA Handbook (7-step unified method, replaces separate AIAG/VDA old versions)
4. Customer Specific Requirements (CSR): OEM unique add-ons (GM, Ford, VW, Toyota, BYD, Tesla)
5. Supporting AIAG Core Tools: MSA, SPC, APQP, Control Plan

Mandatory PPAP Standards for Auto CNC Buyers

PPAP Trigger Conditions

Supplier must submit full PPAP Level3 for all below scenarios, no unilateral waiver allowed without buyer written approval:

1. New CNC part launch (first-time supply to this OEM buyer)
2. Engineering drawing/3D model ECN change (GD&T, material, tolerance, surface finish)
3. CNC process change: machine model, fixture, tooling, cutting parameters, coolant, deburr method
4. Raw material grade/smelter batch supplier switch (6061-T6, 7075, 4140, free-cut steel, brass/copper conductive parts)
5. Production site relocation, new production line, outsourced secondary process (anodizing, plating, heat treat)
6. Production downtime >12 months restart
7. Annual revalidation (required by most OEM CSRs)
8. Major corrective action (8D closure for critical safety defect)

PPAP Submission Levels (Buyer Default = Level3)

Level	Submission Scope	CNC Buyer Application Scenario
Level1	Only PSW Part Submission Warrant	Rare, only non-cosmetic non-safety spare parts per buyer written waiver
Level2	PSW + limited supporting data	Sample trial runs, prototype only (no mass production release)
Level3	PSW + complete 18-element full documentation + production trial samples	Mandatory baseline for all mass-production CNC machined auto parts
Level4	Level3 documents + buyer-specified extra test data	Safety-critical CNC parts (brake, steering, EV HV conductive components)
Level5	Full Level3 data stored at supplier plant, buyer on-site audit review	Tier1 core structural CNC components, high-volume chassis parts

Full 18 PPAP Mandatory Document List (Level3 CNC Machining Focus)

All documents must cross-reference CNC process operation numbers, special characteristics (SC/CC), PFMEA risk controls:

1. Design Record: Ballooned 2D drawing + STEP 3D model, full GD&T, zone tolerance, surface Ra, material spec, special characteristic symbols (★CC Critical Characteristic, ▲SC Significant Characteristic)
2. Authorized Engineering Change Notice (ECN/ECR): All design revisions signed by buyer engineering
3. Customer Engineering Approval: Deviation waiver, test exception approval records
4. DFMEA (if supplier undertakes part design): CNC structural strength, fatigue, thermal expansion risk analysis; pure machining-only suppliers may be exempt per CSR
5. Process Flow Diagram (PFD): End-to-end CNC workflow: raw material incoming → CNC roughing → CNC finishing → deburr → washing → heat treat/plating → inspection → packaging. Every operation number matches PFMEA & Control Plan one-to-one, include subcontracted finishing steps
6. PFMEA (AIAG-VDA 7-step unified format): Core mandatory document for CNC machining, detailed rules in Part2
7. Production Control Plan (3-stage set): Sample / Prototype / Mass Production; each CNC operation linked to PFMEA failure modes, define sampling frequency, inspection method, reaction plan for out-of-tolerance dimensions
8. Measurement System Analysis (MSA): All CNC inspection tools (CMM, micrometer, optical comparator, roughness tester) Gage R&R study. Rule: CC/SC features GR&R ≤10%; general features ≤30%
9. Full Dimensional Layout Report: 100% measurement of all ballooned drawing dimensions from significant production run (minimum 30 consecutive CNC parts, 1–8hr stable production run using mass-production fixtures, machines, operators)
10. Material Test Results: Mill Test Certificate (MTR 3.1/3.2 PMI), hardness, tensile, grain structure; conductive copper/brass CNC parts add conductivity & low-outgassing test reports
11. Qualified Lab Documentation: ISO 17025 accredited lab certificates for material, corrosion, fatigue testing

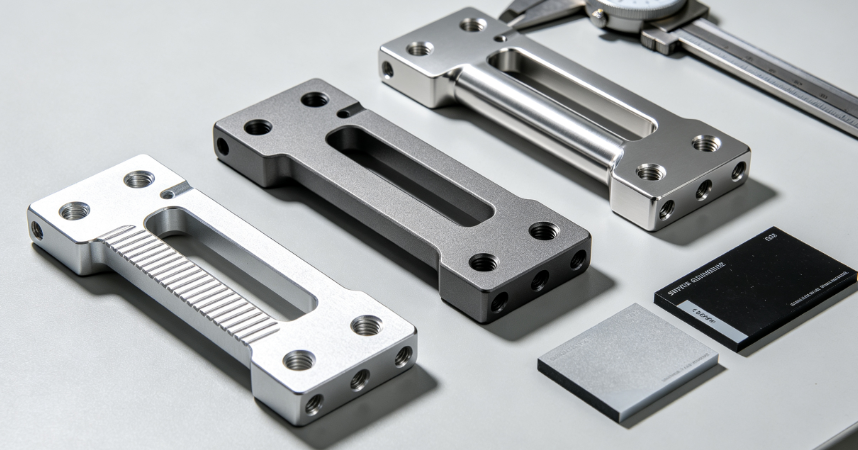

CNC Machining

CNC-Specific PPAP Additional Buyer Mandates

1. Significant Production Run requirement: All samples must use identical mass-production CNC lathe/machining center, fixture, cutting tools, coolant, SOP operators; prototype lab equipment samples are invalid for PPAP submission
2. Technical Cleanliness Report (VDA 19): Mandatory for hydraulic, fuel, EV cooling CNC machined valve manifolds; particulate weight & size distribution test included in PPAP
3. Heat Treat / Plating / Anodizing Subcontract NADCAP certificates (if applicable)
4. CNC machine parameter log from trial run: Spindle speed, feed rate, depth of cut, fixture clamping pressure, tool offset records attached to dimensional report
5. Traceability matrix: Raw material heat lot → CNC batch serial number → finished part serial tracking

AIAG-VDA FMEA Mandatory Standards for Auto CNC Machining Buyers

Core Governing Rule

All CNC process PFMEA must follow AIAG-VDA Unified FMEA 7-Step methodology (2019), abandon old AIAG RPN-only risk sorting; risk prioritization uses AP (Action Priority) matrix instead of S×O×D multiplication. Buyers reject all PFMEA documents skipping the first three planning/structure/function steps.

DFMEA vs PFMEA Split Rule for CNC Suppliers

1. DFMEA: Only required if supplier owns part design (CNC structural geometry, material selection, wall thickness, tolerance stack-up). Analysis covers design risks: insufficient fatigue strength, thermal warpage, unmanufacturable tight tolerances, assembly interference.
2. PFMEA (Universal Mandate for All CNC Shops): Analyzes every machining operation on process flowchart, buyer audit focus point.

AIAG-VDA PFMEA 7 Mandatory Steps (CNC Machining Template Logic)

1. Planning & Preparation: Define CNC part scope, safety classification (CC critical characteristic), cross-functional team (process engineer, quality, CNC operator, maintenance, buyer SQE), CSR OEM requirements
2. Structure Analysis: Process structure tree split per PFD CNC operation: Raw stock loading → Rough turning/Milling → Finish 5-axis contour → Drilling/Tapping → Deburr → Washing. Map machine, fixture, tooling as process elements
3. Function Analysis: Document intended function of each CNC step: e.g., “5-axis finish contour: achieve Ra ≤0.4μm aerodynamic sealing surface, concentricity ≤0.02mm”
4. Failure Analysis (CNC High-Frequency Failure Modes Buyer Auditors Flag):
   • Rough/Finish CNC: Dimensional tolerance overshoot, concentricity out, surface waviness, chatter marks, burr formation, tool wear dimensional drift
   • Drilling/Tapping: Thread pitch error, hole position deviation, cross-thread, residual swarf trapped blind holes
   • Deburr: Micro-burr left on sealing edges, scratch on precision surfaces
   • Washing: Residual coolant residue causing plating adhesion failure
   • Fixture: Clamp deformation thin-wall CNC parts, misalignment batch drift
   • Material: Mixed alloy stock, surface oxidation incoming bar stock
5. Risk Analysis (S/O/D 1–10 scoring + AP Priority Matrix):
   • Severity (S): Highest score 10 = vehicle safety failure (brake CNC valve leakage, HV conductive copper arcing causing fire)
   • Occurrence (O): Frequency of CNC process failure (tool life cycle, fixture drift frequency)
   • Detection (D): Preventative CNC tool offset monitoring, in-process CMM sampling, automated vision burr inspection
   • AP Action Priority: High/Medium/Low to define mandatory corrective actions (High AP risks require 8D closed-loop improvement before PPAP approval)
6. Optimization (Buyer Non-Negotiable): For all High AP CNC risks, document concrete prevention/detection improvements:
   • Prevent: Tool wear compensation CNC program logic, fixture anti-deflection design, raw material PMI incoming check
   • Detect: In-process real-time cavity pressure monitoring, 100% optical scanning for sealing surface burrs, hourly CMM sampling of CC dimensions
7. Result Documentation: Updated PFMEA revision log, action closure evidence, linkage to production control plan & SPC monitoring plan

Buyer Mandatory PFMEA Cross-Reference Rules (Zero Tolerance Gaps)

1. One-to-one matching operation numbers: PFD ↔ PFMEA ↔ Control Plan (auditors cross-check all three documents simultaneously)
2. Every CC/SC special characteristic marked on drawing must have dedicated failure mode, risk score, and control method in PFMEA
3. Subcontracted secondary processes (heat treat, plating, passivation for copper CNC conductive parts) included as separate PFMEA process steps
4. PFMEA is living document: Must revise within 10 working days after any CNC process/tooling/material change, re-submit updated version to buyer SQE

Common CNC PFMEA Rejection Reasons by Auto Buyers

1. Skipped 7-step structure/function analysis, directly filled failure mode table
2. Mixed prevention & detection control items in one column (AIAG-VDA requires separate columns)
3. High AP safety risks without documented corrective action verification data
4. No linkage to SPC sampling / in-process CNC offset monitoring
5. Generic vague failure causes (“operator error”) instead of 4M specific root cause (Machine: spindle runout drift; Material: bar stock residual stress; Method: unoptimized feed rate)
6. Outdated PFMEA, no revision after CNC fixture/process modification

Linked Supporting Core Tool Documents Required with PPAP/FMEA

Buyers require these attached as PPAP appendices, aligned with PFMEA risk controls:

1. 3-Stage Control Plan: Sample / Pre-Production / Mass Production; every CNC CC feature defines sampling frequency, inspection equipment, out-of-spec reaction plan (stop production, 100% sorting, tool offset re-calibration)
2. MSA Gage R&R: CMM, optical roughness tester, thread gauges, air micrometers for thin-wall CNC parts
3. SPC Initial Process Capability: Ppk/Cpk trend charts from 30-piece significant production run, CNC real-time offset monitoring records
4. Work Instructions (SOP): CNC program parameter sheets, tool change frequency schedule, deburr standardized procedure, cleaning bath cycle log
5. Preventive Maintenance Plan: CNC spindle calibration, fixture flatness inspection, cutting tool replacement interval (mitigate tool wear dimensional drift PFMEA risk)
6. Special Characteristic Matrix: Cross map drawing SC/CC features → PFMEA failure modes → Control Plan inspection points

Buyer Audit Compliance & Retention Rules

1. Document Retention Period: Minimum 15 years after end-of-production of the vehicle program (IATF 16949 mandatory)
2. Audit Access: All PPAP/FMEA raw records (CNC trial parameter logs, CMM measurement raw data, PFMEA cross-functional meeting minutes) must be available for buyer unannounced second-party audits
3. Revision Control: All PPAP/FMEA changes require formal ECN record, version number, signature approval, resubmission to buyer SQE before production release
4. Safety-Critical CNC Component Extra Rule: PFMEA annual full revalidation + annual Level4 PPAP re-submission

Quick Compliance Checklist for Auto CNC Buyer Document Review

PPAP Level3 Checklist

Full ballooned drawing with SC/CC special characteristic marking

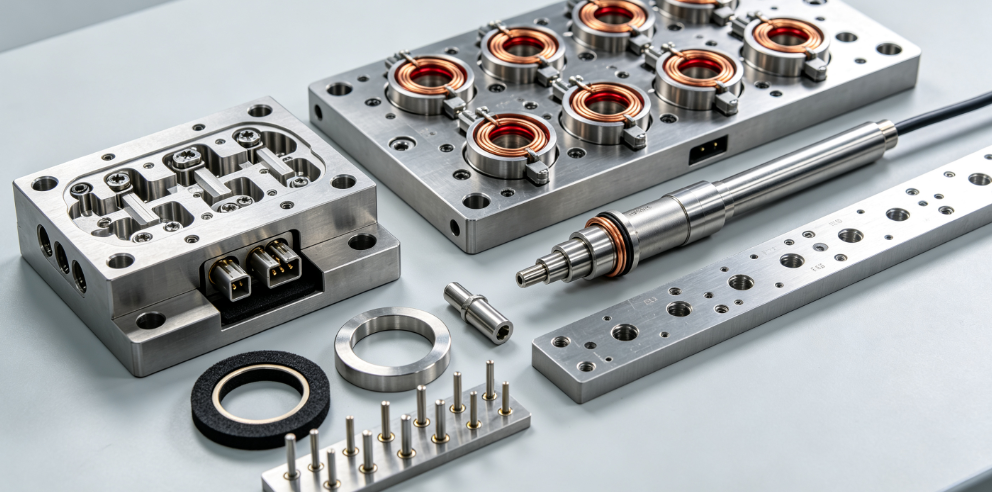

Automotive Prototyping And Manufacturing

Complete AIAG-VDA 7-step PFMEA, cross-referenced to PFD & Control Plan

Significant production run 30 consecutive CNC parts full dimensional layout report

MSA Gage R&R ≤10% for all critical CNC dimensions

Initial SPC Ppk ≥1.67, mass production Cpk ≥1.33 capability data

Raw material MTR PMI certification, subcontract process NADCAP certificates

3-stage control plan with clear out-of-tolerance reaction plan

Technical cleanliness report (hydraulic/fluid CNC parts per VDA19)

Signed PSW Part Submission Warrant, RoHS/conflict mineral declaration

CNC machine trial parameter logs, fixture calibration records attached

PFMEA AIAG-VDA Compliance Checklist

Full 7-step workflow completed (Planning → Structure → Function → Failure → Risk → Optimization → Documentation)

Separate prevention / detection control columns, no mixed entries

All CC safety characteristics assigned dedicated failure mode & AP risk ranking

High AP risks have closed-loop corrective action evidence

Operation numbers 1:1 match process flowchart & production control plan

All CNC process steps (rough, finish, drill, deburr, wash, subcontract finishing) fully analyzed

PFMEA revision log updated for every CNC process/material/tooling change

Cross-functional team meeting sign-off record attached as appendix

FAQ

Can a CNC machining-only supplier skip DFMEA?

Yes, if the buyer owns all part design, geometry, material and GD&T specs. PFMEA is still 100% mandatory regardless of design ownership. If supplier does design optimization (wall thickness, tolerance stack-up reduction), DFMEA is required.

What is the minimum process capability threshold buyers enforce for CNC critical dimensions?

Pre-production PPAP submission requires Ppk ≥1.67; stable mass production ongoing SPC must maintain Cpk ≥1.33 for all CC/SC CNC features. Any feature below this value leads to PPAP rejection and production hold.

Why do auto buyers enforce AIAG-VDA 7-step PFMEA instead of old RPN tables?

Old RPN (S×O×D) prioritization ignored detection capability gaps; unified AP matrix focuses on vehicle safety severity first. Buyers reject any PFMEA documents that skip structure/function analysis steps, as they fail to systematically identify CNC machining root risks like fixture deflection, tool wear drift.

What triggers mandatory PFMEA re-submission to the buyer?

Any CNC process modification: new machine line, redesigned fixture, change of cutting tool material, adjusted spindle/feed parameters, raw material grade switch, new subcontract plating/heat treat vendor, major 8D corrective action for dimensional failure.

For EV copper/brass conductive CNC parts, what extra PPAP/FMEA requirements do buyers add?

Add low-outgassing ASTM E595 test data, electrical conductivity MTR, PFMEA analysis for surface micro-swarf (causing plasma arcing risk), ultra-cleaning process failure modes, full non-ferrous contamination control process controls in the control plan.
