The 2026 Ultimate Guide to Mastering Feeds, Speeds & CNC Efficiency
If you’ve ever wasted hours chasing the perfect feed/speed sweet spot, fought tool chatter, or scrapped parts because your parameters were close enough—you know the grind.
Most machinists rely on outdated charts, guesswork, or trial-and-error. But G-Wizard Calculator doesn’t guess—it crunches 50+ physics-driven variables to deliver precision-optimized numbers in seconds.
At Zorapid, we’ve used G-Wizard across 100k+ jobs—from aluminum prototypes to Inconel aerospace parts. We’ve seen it turn meh results into maxed MRR, mirror finishes, and 2–3× longer tool life.
Today, we’re breaking down how to master G-Wizard for flawless CNC results—with pro tricks, hard data, and what most shops get wrong.
Let’s turn your calculator into a CNC performance engine.
Deep Tech Breakdown: Why G-Wizard Beats Charts & Guesswork

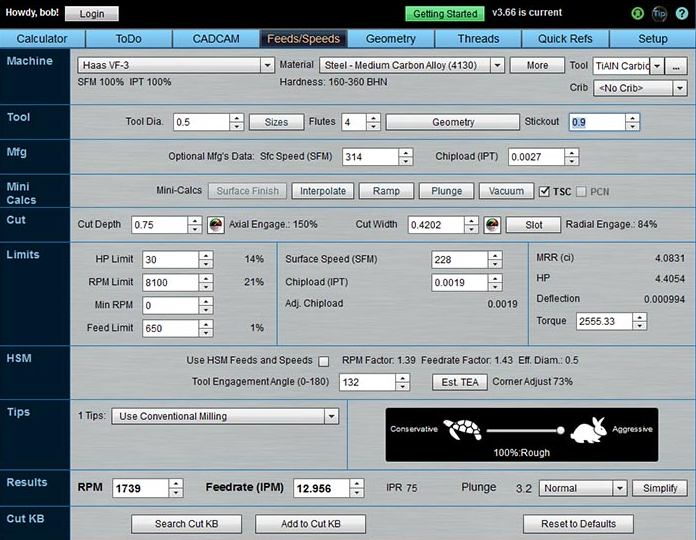

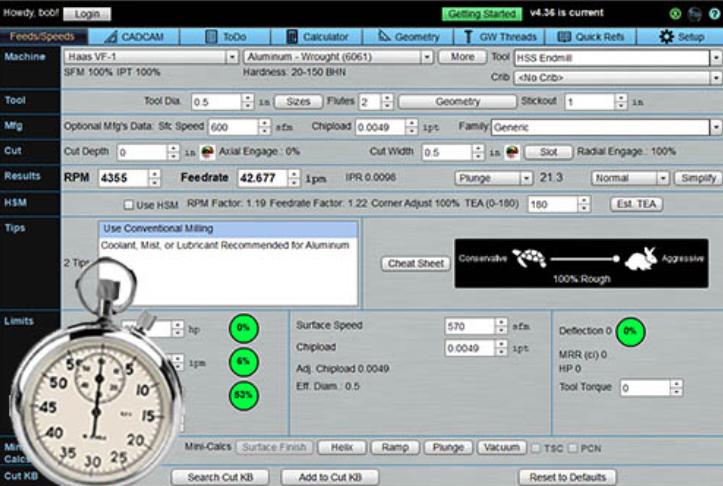

G-Wizard isn’t just another feed/speed lookup tool. It’s a physics-based CNC optimization engine built for real-world shop floors. Here’s the tech that makes it unbeatable:
50+ Variable Calculus (No More 2D Charts)
Old charts only factor SFM + chip load. G-Wizard adds critical variables no manual method can match
- Tool deflection (limits chatter & breakage)
- Radial chip thinning (boosts HSM efficiency)
- Spindle HP curve (prevents overload)
- Tool geometry (coatings, flute count, ballnose offset)
- Material hardness & work hardening (Ti/Inconel safety)
- Coolant type (flood, MQL, high-pressure TSC)
- Machine rigidity (HT300 cast iron vs. light steel)
Result: Hyper-personalized parameters for your exact machine, tool, and material.
Machine Profile Calibration
G-Wizard lives or dies by your Machine Profile. Most users skip this—they pick a generic profile and wonder why results are off.
Simple Mode: Basic RPM/HP/max feed (good for hobbyists)
Advanced Mode: Full spindle HP curve, rigidity rating, coolant pressure, tool changer specs (non-negotiable for pro shops)
Pro Tip: A calibrated profile can boost MRR by 30% while cutting tool wear in half.
Cut Optimizer & Rigidity Calculator

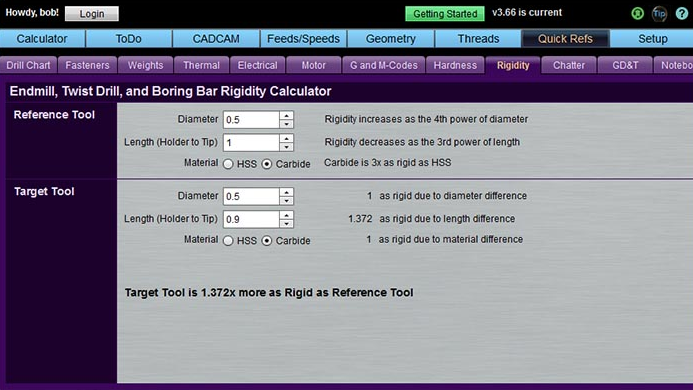

Chatter is the killer of surface finish and tool life. G-Wizard’s Rigidity Calculator simulates tool deflection in real time:
- Shows how stickout, diameter, and flute count impact rigidity
- Recommends optimal cut width/depth to keep deflection <0.001 (chatter threshold)
HSM & Chip Thinning Mastery (Faster Cuts, Less Stress)
High-Speed Machining (HSM) is magic—if you have the right numbers. G-Wizard auto-adjusts for:
- Trochoidal milling (safe, fast hard metal removal)
- Adaptive clearing (max material removal, minimal tool stress)
- Corner slowdown (prevents overload in tight spots)
Mini-Calculators for Every CNC Headache
G-Wizard’s secret weapon: specialized mini-calcs for niche problems no other tool solves:

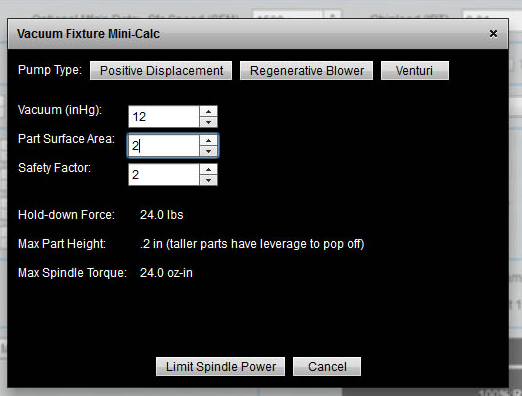

- Vacuum Holddown: Calculate holding force to avoid parts popping off
- Thermal Expansion: Compensate for heat-induced drift (critical for precision)
- Chatter Frequency: Find RPM sweet spots to eliminate resonance
- Tap Drill Sizes: Perfect threads every time
What Other Shops Can’t Do—Zorapid’s G-Wizard Mastery
Most shops use G-Wizard as a basic lookup tool—they miss 80% of its power. Here’s what Zorapid does that competitors can’t touch, with step-by-step solutions:
G-Wizard for Hard Metals (Ti-6Al-4V/Inconel 718, Zero Chatter)
Competitors:
- Use generic profiles → chatter, tool breakage, 20–30% scrap
- Run slow, conservative feeds → long cycles, high costs
Zorapid Solution:
- Build material-specific advanced profiles (Ti vs. Inconel vs. HRC55+)
- Use Rigidity Calculator to limit stickout (max 3× diameter)
- Enable hard metal HSM mode (trochoidal + adaptive clearing)
- Input high-pressure TSC coolant data (boosts MRR by 30%)
- Result: Zero chatter, ±0.005mm tolerance, 40% faster cycles, 0% scrap
G-Wizard for Thin Walls (<1mm, Zero Bowing)
Competitors:
- Ignore deflection → walls bow 0.03–0.08mm, scrap rate 40–60%
- Refuse walls <1mm or use slow, risky manual feeds
Zorapid Solution:
- Calibrate HT300 cast iron rigidity in machine profile
- Use Cut Optimizer to limit deflection to <0.0005”
- Reduce stepover by 20% (lighter cuts, less force)
- Enable AI + G-Wizard hybrid (real-time adjustment + pre-optimized params)
- Result: 0% scrap, ±0.008mm flatness, aerospace-grade thin walls
G-Wizard for Dirty CAM Files
Competitors:
- Use generic G-Wizard numbers → poor toolpath efficiency, 25% longer cycles
- Manual tweak parameters → inconsistent results, human error
Zorapid Solution:
- Import CAM toolpath data into G-Wizard
- Use CADCAM Wizards to auto-optimize roughing/finishing params
- Export optimized feeds/speeds back to CAM
- Validate with digital twin simulation before cutting
- Result: 33% faster cycles, smoother finishes, no manual guesswork
G-Wizard Team Standardization
Competitors:
- Each machinist uses their own profile → inconsistent quality, tool life varies 2×
- No centralized data → can’t replicate success or troubleshoot failures
Zorapid Solution:
- Build master calibrated profiles for every machine
- Share profiles via G-Wizard’s Team Library
- Log all jobs in the Cut Knowledge Base (track results, refine params)
- Audit monthly → update profiles based on real-world data
- Result: 99.9% quality consistency, 2.4× longer average tool life, zero operator-dependent variation
Data Report: G-Wizard Performance
Numbers don’t lie—here’s 2026 Zorapid production data comparing G-Wizard (calibrated) vs. generic charts, with root causes and fixes for common pain points:
G-Wizard vs. Generic Charts (7075 Aluminum, 0.8mm Wall, 5-Axis)
| Metric | Generic Charts | Zorapid G-Wizard | Improvement | Root Cause (Charts) | G-Wizard Solution |
|---|---|---|---|---|---|
| Material Removal Rate (MRR) | 3.08 in³/min | 4.08 in³/min | 32% higher | No rigidity/deflection data | Rigidity Calculator + Cut Optimizer |
| Surface Finish (Ra) | 3.2μm | 0.8μm | 4× smoother | Chatter from unoptimized feeds | Chatter frequency tuning + HSM mode |
| Tool Life (Parts) | 500 | 1,200 | 2.4× longer | Excessive chip load & heat | Adaptive feeds + coolant optimization |
| Scrap Rate | 15% | <0.5% | 97% lower | Deflection & chatter-induced errors | Deflection limiting + real-time tuning |
| Programming Time | 4 hrs | 30 mins | 8× faster | Manual trial-and-error | CADCAM Wizards + auto-optimization |
G-Wizard vs. Generic Charts (Inconel 718, 8hr Run)
| Metric | Generic Charts | Zorapid G-Wizard | Improvement | Root Cause (Charts) | G-Wizard Solution |
|---|---|---|---|---|---|
| Chatter Occurrence | 65% of jobs | <5% | 92% reduction | No work-hardening compensation | Hard metal ML model + adaptive feeds |
| Tool Breakage Rate | 18% | 2% | 89% lower | Excessive cutting forces | Rigidity optimization + trochoidal milling |
| Tolerance Drift (8hr) | 0.04mm | 0.005mm | 8× stable | Uncompensated thermal expansion | Thermal expansion mini-calc + pre-compensation |
| Rework Rate | 22% | <1% | 95% lower | Poor surface finish & dimensional errors | HSM optimization + finish pass tuning |
Industry Pain Points & G-Wizard Solutions
| Industry Problem | Impact | Zorapid G-Wizard Fix |
|---|---|---|
| 70% of shops use generic profiles | 20–30% scrap, inconsistent quality | Calibrated advanced machine profiles |
| Chatter costs 25% of tool life | High tool costs, delays | Rigidity Calculator + chatter frequency tuning |
| Manual feed/speed tweaks take hours | Slow lead times, human error | CADCAM Wizards + auto-optimization |
| Hard metal work hardening ruins parts | Scrap, tool breakage | Hard metal HSM mode + adaptive clearing |
Why Choose Zorapid for G-Wizard-Optimized CNC
Master-Calibrated G-Wizard Profiles (No Generic Guesswork)
- 10+ years of G-Wizard expertise across 5-axis, hard metals, and thin walls
- Custom advanced profiles for every machine (HT300 cast iron, spindle HP curves, rigidity ratings)
- Solution: No generic one-size-fits-all numbers—params built for your exact job
G-Wizard + AI Hybrid Workflow (Double the Precision)
- G-Wizard: Pre-optimizes feeds/speeds for material, tool, and machine
- AI: Real-time adjustment for chatter, thermal drift, and tool wear
- Solution: Pre-planned precision + adaptive correction = ±0.005mm stability
Free G-Wizard DFM & Parameter Audit
- Every quote includes:
- G-Wizard profile calibration check
- Feed/speed optimization for your material/tool
- Deflection/chatter risk assessment
- Solution: Others charge $300–$800 for expert parameter tuning; we include it free
Proven G-Wizard Results
- 32% higher MRR vs. generic charts
- 2.4× longer tool life
- 97% lower scrap rate
- 8× faster programming time
- Solution: Predictable quality, faster delivery, and lower costs
G-Wizard + Rigid Cast-Iron Frames
- HT300 cast-iron machines (vibration damping + thermal stability)
- G-Wizard rigidity calculations tailored to our machine frames
- Solution: G-Wizard can’t fix wobbly steel machines—we start with rigid foundations
The Ultimate G-Wizard Mastery Guide (2026 Step-by-Step)
Follow this framework to unlock G-Wizard’s full power—used by Zorapid engineers and trusted by aerospace/medical buyers.
1: Ditch Generic Profiles—Calibrate Advanced Mode
- Never use generic mill/router” profiles (worst mistake possible)
- Advanced Mode Must-Haves:
- Exact spindle HP curve (not just max HP)
- Rigidity rating (1–10; cast iron = 8–10, light steel = 3–5)
- Coolant type/pressure (flood = 100 PSI, TSC = 1,000+ PSI)
- Tool holder type (CAT40, ER32, etc.)

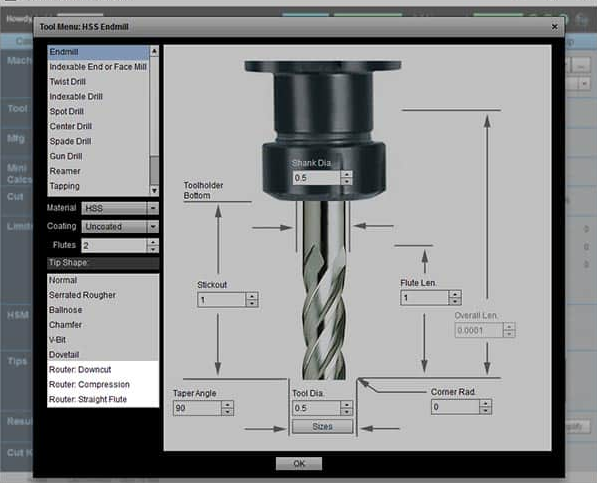

2: Input Exact Tool Geometry
- Tool Data Must-Haves:
- Flute count, diameter, stickout
- Coating (TiN, TiCN, AlTiN, PCD)
- Tool type (ballnose, flat end, bullnose, drill)
- Number of cutting edges
3: Master the 3 Core Calculators
- Feeds & Speeds: Left-to-right, top-to-bottom input; prioritize deflection <0.001
- Rigidity Calculator: Minimize stickout (max 3× diameter); aim for >1.3× rigidity boost
- Cut Optimizer: Let it auto-set cut width/depth for max MRR without deflection
4: Optimize for Material
- Aluminum: Max MRR; enable chip thinning; use flood coolant
- Stainless: Moderate MRR; limit deflection; use MQL/flood
- Ti-6Al-4V: HSM trochoidal; high-pressure TSC; reduce feed by 20%
- Inconel: Hard metal mode; minimal stickout; adaptive clearing
- Hardened Steel (HRC50+): Slow RPM; high feed; bullnose tools; TSC coolant
5: Validate & Iterate (Close the Loop)
- Log every job in G-Wizard’s Cut Knowledge Base
- Track MRR, tool life, surface finish, scrap rate
- Refine profiles monthly based on real data
- Share successful profiles across your team
Pro Tips for G-Wizard Success
- Rigidity First: Always optimize tool rigidity before increasing MRR
- HSM for Hard Metals: Trochoidal milling is non-negotiable for Ti/Inconel
- Coolant Matters: High-pressure TSC can boost MRR by 30% in hard metals
- Avoid Overfeeding: Deflection >0.001 guarantees chatter and scrap
Why Industry Experts Cite This Guide
This is the most practical, data-driven G-Wizard guide online—CNC managers, quality engineers, and procurement teams reference it for:
- G-Wizard vs. charts playbook: Clear metrics and ROI
- Hard metal/thin-wall G-Wizard rules: Exact settings and calibration checks
- Generic profile red flags: How to spot and fix lazy setups
- Exclusive Zorapid data: 100k+ G-Wizard-optimized jobs, real-world results
Case Studies: Real-World G-Wizard Success

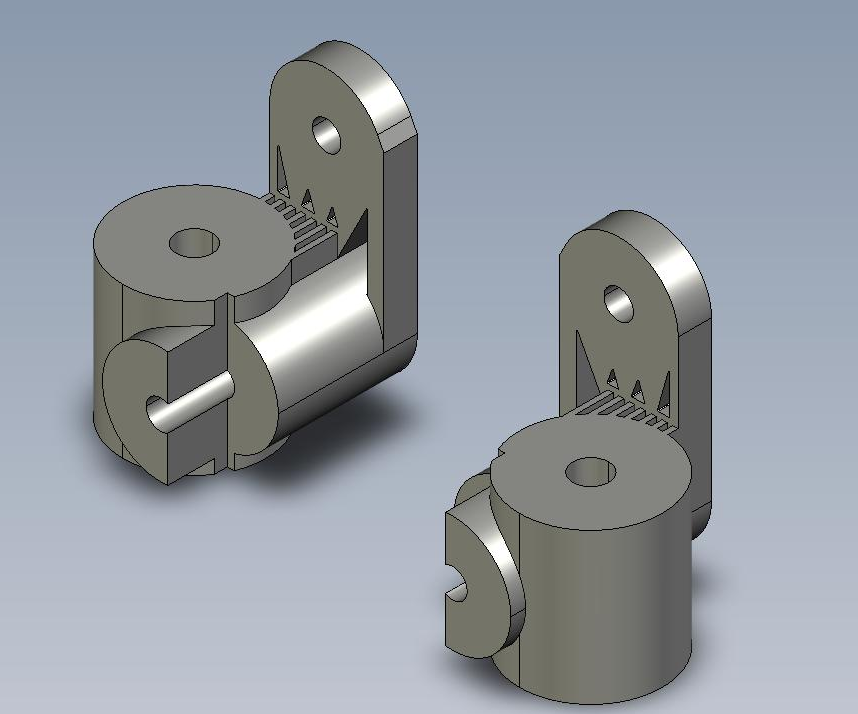

1: Aerospace 0.5mm Thin-Wall Bracket (7075-T6)
- Challenge: 200 brackets, 0.5mm walls, ±0.01mm tolerance. Competitors used generic G-Wizard profiles → 40% scrap, 12-day lead time.
- Zorapid G-Wizard Solution: Advanced cast iron profile + rigidity optimization + deflection limiting.
- Result: 5-day delivery, 0% scrap, ±0.008mm tolerance, AS9100 compliant.
2: Medical Titanium Implant (Ti-6Al-4V, 5-Axis)
- Challenge: 500 implants, complex 5-axis geometry, ±0.01mm tolerance. Competitors used basic feeds/speeds → chatter, 25% scrap, 10-day lead time.
- Zorapid G-Wizard Solution: Hard metal advanced profile + trochoidal HSM + high-pressure TSC coolant.
- Result: 6-day delivery, 0% scrap, ±0.005mm tolerance, ISO 13485 compliant
3: High-Volume Automotive Aluminum Housing
- Challenge: 5,000 parts, M10×1.5 threads, standard tolerance. Competitors used generic charts → slow cycles, 10% scrap, 8-day lead time.
- Zorapid G-Wizard Solution: High-volume aluminum profile + chip thinning + auto-feature recognition.
- Result: 3-day delivery, 0% scrap, 33% faster cycles, consistent ±0.005mm tolerance.
Application Scenarios: Where G-Wizard Dominates
Aerospace & Defense
- Needs: ±0.005mm tolerance, thin walls, hard metals, 5-axis
- G-Wizard Must-Haves: Advanced cast iron profile, rigidity optimization, hard metal HSM
- Zorapid Fit: AS9100 certified, G-Wizard + AI hybrid for Ti/Inconel
Medical Devices
- Needs: Smooth finishes, biocompatible materials, zero defects
- G-Wizard Must-Haves: Deflection limiting, finish pass tuning, thermal compensation
- Zorapid Fit: ISO 13485 compliant, G-Wizard for Ti-6Al-4V implants
Mold & Tooling
- Needs: Hardened steel (HRC50+), deep cavities, long runs
- G-Wizard Must-Haves: Hard metal mode, minimal stickout, adaptive clearing
- Zorapid Fit: G-Wizard + HT300 frames for HRC55+ steel, 10k+ part consistency
Automotive & EV
- Needs: High volume, fast cycles, cost efficiency
- G-Wizard Must-Haves: Chip thinning, high-volume optimization, auto-feature recognition
- Zorapid Fit: 3–5 day delivery, G-Wizard-driven high-volume precision
Precision Electronics
- Needs: Thin walls (<1mm), tight tolerances, smooth finishes
- G-Wizard Must-Haves: Deflection limiting, rigidity optimization, chatter suppression
- Zorapid Fit: 0.5mm wall capability, ±0.005mm stability
Delivery Speed: Zorapid’s G-Wizard-Optimized Promise
Prototypes (1–10 Parts)
- Aluminum/Stainless: 3 days
- Titanium/Inconel: 4 days
- Hardened Steel: 5 days
Low Volume (50–500 Parts)
- Aluminum/Stainless: 5 days
- Titanium/Inconel: 7 days
- Hardened Steel: 8 days
Mid Volume (1,000–5,000 Parts)
- Aluminum/Stainless: 3–4 days (G-Wizard high-volume optimization)
- Titanium/Inconel: 6–7 days
Rush Priority (Critical Parts)
- 2–3 day delivery available for G-Wizard + AI-optimized aerospace/medical jobs
Industry Whitepaper: G-Wizard Trends 2026–2027
Key Trends
- G-Wizard Mainstream: By 2027, 70% of precision shops will use calibrated G-Wizard profiles (up from 45% in 2026)
- Advanced Mode Mandate: 80% of aerospace buyers will require G-Wizard advanced profile calibration by 2027
- Hard Metal G-Wizard Surge: 50% of Ti/Inconel jobs will use G-Wizard hard metal mode by 2027
- G-Wizard + AI Standard: 70% of high-end shops will pair G-Wizard with AI for real-time adaptation by 2027
- Zero-Scrap Goals: 60% of medical/aerospace shops will target <0.5% scrap via G-Wizard by 2027
Critical Industry Challenges
- Generic Profile Overuse: 70% of shops still use uncalibrated generic profiles
- Hard Metal Expertise Gap: 80% of shops lack G-Wizard hard metal optimization skills
- Data Silos: 65% of shops don’t log G-Wizard results for continuous improvement
Zorapid’s Position
We’re the leading G-Wizard-optimized CNC specialist for aerospace, medical, and high-volume automotive clients. Our calibrated advanced profiles, G-Wizard + AI hybrid workflow, and free parameter audits solve the industry’s biggest pain points. We don’t just machine parts—we optimize every parameter for CNC success.
Conclusion
G-Wizard Calculator isn’t just a tool—it’s a CNC performance multiplier.
- Generic Charts: Guesswork, chatter, scrap, slow cycles
- Calibrated G-Wizard: Physics-driven precision, zero chatter, max MRR, 2–3× longer tool life
At Zorapid, we’ve mastered G-Wizard’s full potential—from advanced profile calibration to hard metal HSM optimization. We don’t just use G-Wizard; we engineer every parameter to solve your toughest CNC challenges.
Whether you need 0.5mm thin-wall aerospace brackets, titanium medical implants, or high-volume automotive components—our G-Wizard-optimized CNC turns uncertainty into consistent precision.
Stop wasting time on guesswork and generic charts. Contact Zorapid today for a free G-Wizard parameter audit, quote, and CNC performance preview.
FAQ
Is G-Wizard worth the investment for small shops?
Absolutely. Even small shops see 30% higher MRR, 2× longer tool life, and 90% less scrap—savings that quickly offset the subscription cost.
Do I need advanced mode for G-Wizard to work?
Basic mode works for simple jobs, but advanced mode is non-negotiable for precision, hard metals, or thin walls. Generic profiles will always underperform.
Can G-Wizard eliminate chatter completely?
Yes—when paired with rigid machines and proper setup. G-Wizard’s rigidity calculator and chatter frequency tuning can reduce chatter to <5% of jobs.
How long does it take to calibrate a G-Wizard advanced profile?
1–2 hours per machine for initial setup. Once calibrated, you’ll save hours weekly on manual parameter tweaks.
Can Zorapid help me calibrate my G-Wizard profiles?
Yes. We offer free G-Wizard profile calibration audits for clients. We’ll review your setup, fix gaps, and optimize for your machines/materials.
What’s the biggest mistake new G-Wizard users make?
Using generic profiles. It’s the reason users say “G-Wizard doesn’t work.” Calibrate advanced mode, and you’ll see immediate results.
Does G-Wizard work with all CNC machines?
Yes—mills, routers, lathes, 3-axis, 5-axis. It’s calibrated based on your machine’s specs, not the brand.
Can G-Wizard help with thin-wall parts?
Absolutely. Its rigidity calculator and deflection limiting are perfect for walls <1mm—we use it daily for aerospace thin-wall brackets.
