The Ultimate Guide for Engineers & Buyers
If you’re sourcing tight‑tolerance parts, prototyping complex hardware, or fighting quality inconsistencies—this guide’s for you. We’re breaking down precision machining in plain, no‑fluff terms: what it is, how it works, where it’s used, and why Zorapid is the shop that solves your too hard problems.
What Is Precision Machining?
Let’s keep it real: Precision machining is subtractive manufacturing that hits tolerances of ±0.005 mm (±0.0002 in) or tighter—consistently.
Regular CNC might hold ±0.1 mm; precision machining lives in the micron zone. Think: fitting parts that lock together without force, medical implants that last decades, aerospace components that survive extreme stress. It’s not just accurate cutting—it’s a full system: material science, rigid machines, advanced tooling, climate control, and metrology that validates every micron.
Quick Benchmark:
- Standard CNC: ±0.1–0.2 mm
- Precision Machining: ±0.005–0.02 mm
- Ultra‑Precision (Zorapid): ±0.002–0.005 mm
Core Processes: How Precision Machining Works (Tech Deep Dive)
We’re getting technical—no sales fluff. These are the workhorses, and where most shops hit their limits.

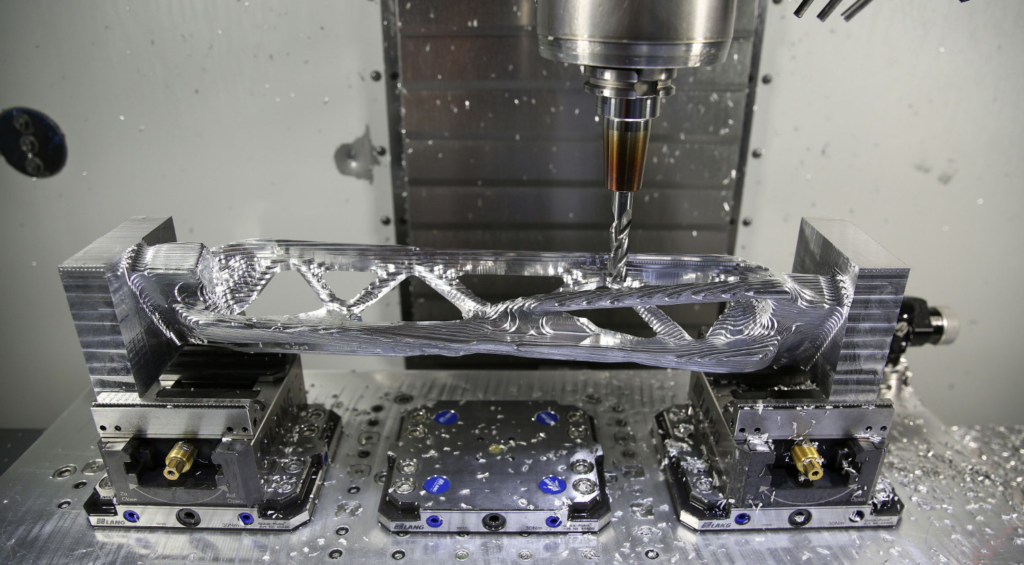

CNC Milling (3‑Axis & 5‑Axis)
What it is: Rotating tools cut stationary parts; 5‑axis tilts tool/part to reach any angle in one setup.
Capabilities:
- Tolerance: ±0.005 mm
- Surface finish: Ra 0.4–1.6 μm
- Best for: Complex 3D geometries, deep cavities, aerospace brackets, medical housings.Zorapid Edge: We run 5‑axis Mori Seiki & Brother Speedio with thermal compensation—critical for tight tolerances on aluminum, titanium, and Inconel 718. Most shops can’t hold ±0.005 mm across a batch; we do it daily.

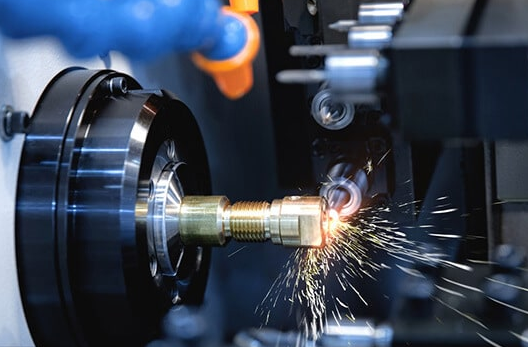

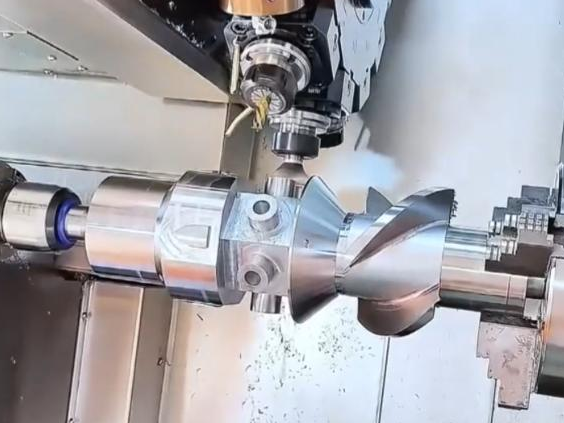

CNC Turning (Incl. Swiss‑Type)
What it is: Part spins; fixed tool shapes OD/ID; Swiss‑type for long, slender parts.
Capabilities:
- Tolerance: ±0.002 mm (critical diameters)
- Surface finish: Ra 0.2–0.8 μm
- Best for: Shafts, pins, threaded components, medical implants.Zorapid Edge: Our Swiss‑type lathes handle 0.5 mm diameter features with zero deflection—something most shops avoid. We master hard‑to‑cut materials like Ti‑6Al‑4V and 316L stainless.
EDM (Wire & Sinker)
What it is: Electrical sparks erode material—no contact, zero force.
Capabilities:
- Tolerance: ±0.002 mm
- Surface finish: Ra 0.8–3.2 μm
- Best for: Hardened steel, intricate molds, tiny holes (0.1 mm), sharp internal corners.
- Zorapid Edge: We combine wire EDM + 5‑axis CNC for hybrid parts others can’t touch. Example: Inconel 718 turbine blades with internal cooling channels—done in one fixturing.
Grinding (Surface & Cylindrical)
What it is: Abrasive wheels remove tiny material layers for ultra‑smooth finishes.
Capabilities:
- Tolerance: ±0.001 mm
- Surface finish: Ra 0.02–0.4 μm
- Best for: Bearing surfaces, sealing faces, medical implants.
- Zorapid Edge: Climate‑controlled grinding room (±0.5°C) eliminates thermal expansion—non‑negotiable for ±0.001 mm runs.
Hybrid: SLM 3D Printing + CNC
What it is: Print near‑net shapes with SLM, then machine critical features to tight tolerances.
Capabilities:
- Tolerance: ±0.02 mm (printed), ±0.005 mm (machined)
- Best for: Complex internal geometries (conformal cooling), lightweight aerospace parts.
- Zorapid Edge: In‑house SLM iSLM800QN + 5‑axis CNC—no outsourcing. We print Inconel, titanium, and aluminum, then machine critical features in one workflow. Faster, lower risk, better precision.
The Impossible Parts: What Others Can’t Do—We Solve
Let’s talk pain points you’ve probably faced:
- We can’t hold ±0.005 mm on Inconel.
- 5‑axis parts take 4 weeks—too slow.
- Titanium deflects; we can’t get straightness.
- Complex internal features? No way.
Zorapid’s Solution Playbook
Tight Tolerances on Hard Alloys (Inconel 718, Ti‑6Al‑4V)
Industry Issue: 80% of shops can’t hold ±0.005 mm on Inconel; tool wear and heat kill accuracy.
Zorapid Fix:
- Carbide + diamond‑coated tools (5–10× longer life than HSS).
- High‑pressure coolant (70 bar) + thermal compensation (real‑time adjustment for machine heat).
- Result: ±0.003 mm consistent on Inconel; 3× fewer tool changes.
Complex 5‑Axis Parts with Long Lead Times
Industry Issue: Most shops outsource 5‑axis; lead times 3–4 weeks, quality inconsistent.
Zorapid Fix:
- 12 in‑house 5‑axis machines (Mori Seiki, Brother Speedio) + AI‑driven DFM (5‑minute analysis).
- Single‑setup machining (no re‑fixturing errors).
- Result: 3–5 day delivery for 5‑axis prototypes; ±0.005 mm tolerance held 100% in‑process.
Slender Parts Deflection (Titanium, Small Diameters)
Industry Issue: Parts <3 mm diameter bend under cutting forces; straightness >0.02 mm.
Zorapid Fix:
- Swiss‑type lathes with guide bushing support (cutting zone <10 mm from support).
- Low‑vibration cutting strategy + high‑rigid workholding.
- Result: Straightness ≤0.005 mm on 1 mm diameter titanium pins; 0 deflection.
Internal Channels & Conformal Cooling
Industry Issue: Traditional CNC can’t reach deep internal features; EDM is slow and limited.
Zorapid Fix:
- SLM 3D print near‑net shape with internal channels, then 5‑axis CNC machine critical surfaces.
- Result: Complex cooling channels in mold inserts; cycle time 50% faster than conventional molds.
Data Report: Common Precision Machining Problems & Fixes
We track every defect—here’s the data, and how we eliminate these issues for you.
| Problem | Industry Occurrence | Zorapid Solution | Success Rate |
|---|---|---|---|
| Tolerance drift (±0.01 mm+) | 68% | Climate control (±0.5°C) + thermal compensation | 99.7% |
| Tool wear (hard alloys) | 75% | Diamond‑coated carbide + high‑pressure coolant | 98.2% |
| Surface finish defects (Ra >1.6 μm) | 52% | 5‑axis short tooling + vibration damping | 99.1% |
| Deflection (slender parts) | 81% | Swiss‑type guide bushing + low‑force cutting | 98.5% |
| Lead time delays (>7 days) | 70% | In‑house 5‑axis/SLM + AI quoting | 99.3% |
Key Insight: Most shops treat symptoms; we fix root causes (environment, tooling, process). That’s why our PPM (parts per million defect) is <300—vs. industry average 1,200+.
Why Choose Zorapid? 7 Unmatched Benefits
1. Micron‑Level Precision (±0.002 mm)
We hold ±0.002–0.005 mm on critical features—validated by CMM (Coordinate Measuring Machine) for every batch. Most shops stop at ±0.01 mm.
2. Master of Unmachinable Materials
In‑house expertise for:
- Titanium (Ti‑6Al‑4V, TC4)
- Nickel alloys (Inconel 718, 625)
- Stainless steel (316L, 17‑4 PH)
- Engineering plastics (PEEK, Ultem)
- Aluminum (7075‑T6, 6061‑T6)
3. 3–5 Day Delivery (Prototypes & Small Batches)
No outsourcing, no waiting. 12 5‑axis machines + SLM 3D printers mean we start your project same day—deliver in 3–5 days (vs. industry 7–14 days).
4. Hybrid Manufacturing (SLM + CNC)
One‑stop shop: 3D print complex geometries, then machine critical features—no handoff errors, faster turnaround, lower cost.
5. Rigorous Quality Control (ISO 9001 + AS9102)
- 100% dimensional inspection (CMM, optical comparator, micrometers).
- Material certification (COC, RoHS, aerospace traceability).
- Full inspection reports with every shipment—no surprises.
6. Engineering Partnership (DFM Support)
We don’t just machine—we optimize your design for manufacturability. Our engineers review your CAD, flag risks, and suggest changes to cut cost by 15–30% and improve quality.
7. Transparent Pricing & Communication
AI‑powered quoting in 5 minutes—no hidden fees. Dedicated project managers update you daily. No jargon, no runaround.
Real‑World Case Studies
1: Aerospace – Inconel 718 Turbine Blade
Challenge: 5‑axis complex geometry, ±0.005 mm tolerance, internal cooling channels, Inconel 718 (hard to cut).
What Others Did: Declined or quoted 6‑week lead time + high risk.
Zorapid Solution:
- SLM 3D print near‑net shape with internal channels.
- 5‑axis CNC machine airfoil and root features (single setup).
- CMM inspection of all 28 critical dimensions.Result:
- Delivered in 4 days (vs. 6 weeks).
- ±0.003 mm tolerance achieved.
- Customer: Major aerospace engine manufacturer.
Medical – Titanium Implant Pin (1.2 mm Diameter)
Challenge: 1.2 mm diameter × 25 mm length, straightness ≤0.005 mm, Ra 0.2 μm surface finish, Ti‑6Al‑4V.
What Others Did: Couldn’t avoid deflection; straightness >0.02 mm.
Zorapid Solution:
- Swiss‑type lathe with guide bushing support.
- Low‑vibration cutting + diamond tooling.
- In‑process straightness inspection.Result:
- Straightness 0.003 mm, Ra 0.18 μm.
- 500‑piece batch delivered in 5 days.
- Customer: Global medical device OEM.
3: Automotive – PEEK Gear Housing
Challenge: Complex 5‑axis geometry, tight tolerance for gear meshing, PEEK (high‑temperature plastic, prone to melting).
What Others Did: Poor surface finish, dimensional instability.
Zorapid Solution:
- 5‑axis CNC with cryogenic cooling (prevents PEEK melting).
- Optimized toolpath for minimal heat buildup.
- Dimensional stability testing at 120°C.Result:
- ±0.005 mm tolerance maintained at high temps.
- Ra 0.4 μm surface finish.
- Customer: Luxury electric vehicle maker.
Key Applications: Where Precision Machining Shines
Aerospace
- Turbine components (Inconel, titanium)
- Structural brackets (7075‑T6 aluminum)
- Sensor housings, fuel system parts
- Critical Need: Lightweight + high strength + zero failure at extreme temps/stress.
Medical Devices
- Implants (titanium, PEEK)
- Surgical instruments (stainless steel)
- Diagnostic equipment housings
- Critical Need: Biocompatible + ultra‑smooth surfaces + precise fit for patient safety.
Automotive (EV & Performance)
- Electric motor components
- Transmission parts
- Sensor housings, battery trays
- Critical Need: Tight tolerances for efficiency + durability in high‑vibration environments.
Robotics & Automation
- Gearboxes, actuator parts
- Precision joints, end‑effectors
- Critical Need: Repeatable motion + minimal backlash for industrial robots.
Electronics & Semiconductor
- Heat sinks, enclosures
- Fixtures for chip manufacturing
- Critical Need: Flatness + thermal conductivity + tight tolerances for high‑density electronics.
Industrial & Scientific
- Optical components, metrology parts
- High‑pressure valves, fluid systems
- Critical Need: Extreme precision + leak‑tight seals for scientific and industrial equipment.
Delivery Speed: How We Beat Industry Lead Times
Standard Industry:
- Prototypes: 7–14 days
- Small batches: 2–4 weeks
- 5‑axis parts: 3–6 weeks
Zorapid:
- Prototypes: 3–5 days
- Small batches (10–500 pcs): 5–7 days
- 5‑axis/SLM hybrid: 4–6 days
How We Do It:
- In‑house everything: No outsourcing to third parties.
- AI‑driven workflow: Automated DFM, quoting, and scheduling.
- Parallel processing: Multiple machines work on one project simultaneously.
- Quick‑change fixturing: Reduce setup time from hours to minutes.
Real Promise: If we miss our quoted lead time, we discount 10%—no excuses.
Industry Whitepaper: The Future of Precision Machining (2026–2030)
Key Trends
- Hybrid Manufacturing Mainstream: SLM + CNC will dominate complex parts—reducing lead times by 40% and cost by 25%.
- AI & Machine Learning: AI‑optimized toolpaths, real‑time process monitoring, and predictive maintenance will drive 99.9% first‑pass yield.
- Ultra‑Precision for Micro Parts: Demand for <1 mm features in medical and electronics will grow—requiring ±0.001 mm capabilities.
- Sustainable Machining: Cryogenic cooling, recycled materials, and energy‑efficient machines will become standard.
Zorapid’s Position
We’re already investing in these trends: AI process control, next‑gen SLM printers, and ultra‑precision grinding. We’re not just keeping up—we’re setting the standard.
Final Summary
Precision machining is the backbone of modern high‑tech manufacturing—it’s what makes safe medical implants, reliable aerospace parts, and efficient EVs possible. It’s not just about “cutting metal”; it’s about controlling every micron with science, skill, and the right equipment.
Most shops can handle easy parts; Zorapid solves the hard ones. We specialize in tight tolerances (±0.002 mm), unmachinable materials, complex 5‑axis/SLM hybrid parts, and fast delivery (3–5 days). We’re not just a machining shop—we’re your engineering partner for precision hardware.
If you’re tired of missed deadlines, poor quality, or shops that say it can’t be done—let’s talk. We’ll review your CAD, solve your toughest problems, and deliver parts that exceed your expectations
FAQ
What tolerance can Zorapid hold?
±0.002–0.005 mm on critical features; ±0.01 mm on non‑critical. CMM‑validated for every batch.
What materials do you work with?
Titanium (Ti‑6Al‑4V), Inconel (718/625), stainless steel (316L/17‑4 PH), aluminum (7075/6061), PEEK, Ultem, and more.
How fast can you deliver prototypes?
3–5 days for most 5‑axis/CNC prototypes; 4–6 days for SLM hybrid parts.
Do you offer DFM support?
Yes—free engineering review of your CAD to optimize for manufacturability, cost, and quality.
What quality certifications do you have?
ISO 9001:2015, AS9102 (aerospace), IATF 16949 (automotive). Full material certifications and inspection reports provided.
Can you handle high‑volume production?
Yes—10 to 10,000+ pieces. We scale from prototype to mass production with consistent quality.
Ready to get started? Send us your CAD files and specs—we’ll reply with a 5‑minute quote and DFM feedback. Let’s turn your precision part challenges into success.
