The Ultimate Playbook for Precision Marking & High‑Detail Machining
If you need sharp, permanent marks, micro‑precision text, or flawless 2D/3D engravings on tough materials—this guide’s for you. We’re breaking down CNC engraving like the pros do: how it works, what trips up ordinary shops, and why Zorapid is the only partner you need for impossible engraving jobs.
What Is CNC Engraving? (Definition & Core Tech)
Plain and simple: CNC engraving is subtractive precision marking using computer‑controlled rotary tools to cut permanent, high‑resolution text, logos, or patterns into almost any material.
It’s not just scratching a surface. True CNC engraving hits ±0.005 mm depth/position accuracy, with line widths as fine as 0.1 mm—clean edges, zero burrs, consistent depth across every part. Unlike laser marking (which can fade or discolor), CNC engraving cuts into the material—permanent, durable, and traceable for life.
How It Works (Tech Deep Dive)
- CAD Design: Vectorize text/logos (critical—no fonts, just clean lines).
- CAM Programming: Toolpath generation, spindle speed, feed rate, depth per pass.
- Machine Setup: High‑speed spindle (10,000–60,000 rpm), rigid fixturing, precision tooling.
- Engraving: Rotary cutter removes material layer by layer—sharp, clean, repeatable.
- Inspection: CMM/optical check for depth, line width, and edge definition.
Core CNC Engraving Processes (With Tech Specs)

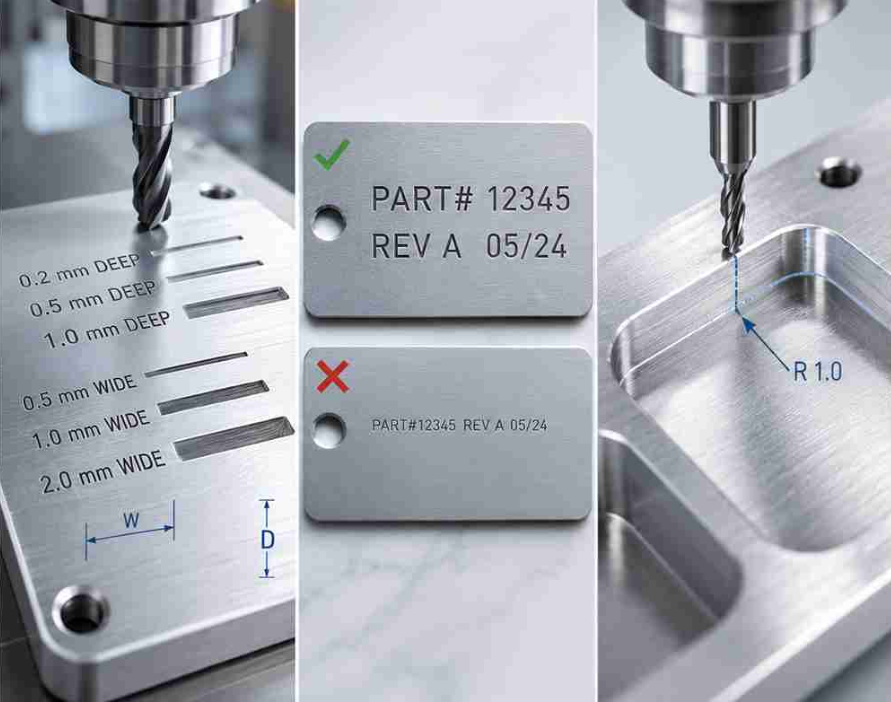

2D Text & Logo Engraving
What it is: Flat‑surface marking—serial numbers, part numbers, logos, safety symbols.
Tech Specs:
- Line width: 0.1–3 mm
- Depth: 0.05–0.5 mm
- Tolerance: ±0.005 mm
- Surface finish: Ra 0.4–1.6 μm
- Best for: Aluminum, brass, stainless steel, PEEK, acrylic.
3D Relief Engraving
What it is: Sculpted, multi‑depth patterns—mold textures, decorative panels, jewelry.
Tech Specs:
- Depth range: 0.5–5 mm
- Stepover: 5–15% of tool diameter
- Tolerance: ±0.01 mm
- Best for: Hardened steel, wood, composites, titanium.
Micro‑Engraving (Ultra‑Fine)
What it is: Tiny text/features (<1 mm)—medical devices, aerospace parts, electronics.
Tech Specs:
- Line width: 0.1–0.5 mm
- Depth: 0.02–0.1 mm
- Spindle speed: 40,000–60,000 rpm
- Best for: 316L stainless, Ti‑6Al‑4V, PEEK, ceramics.

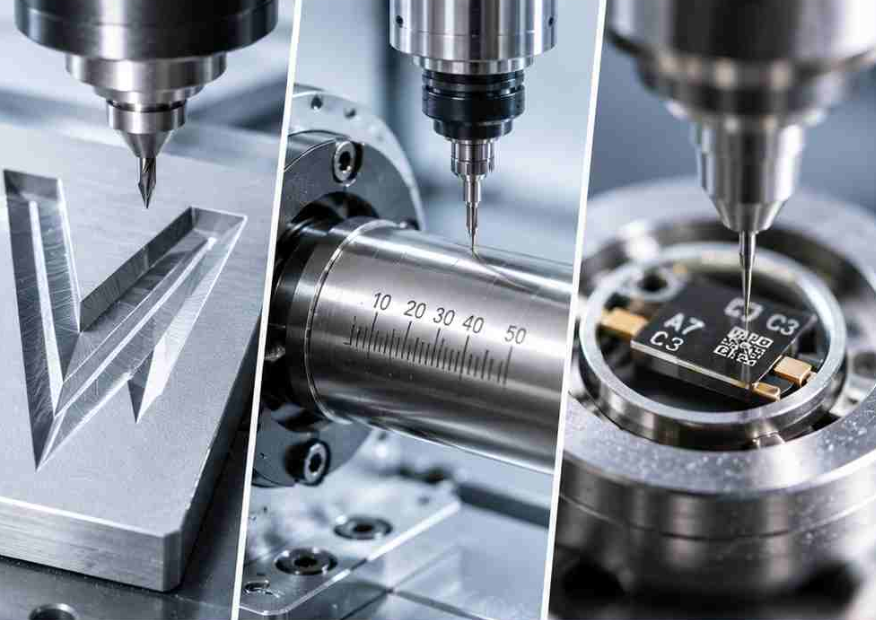

Curved & Contour Engraving
What it is: Engraving on 3D surfaces—shafts, domes, turbine blades.
Tech Specs:
- 4/5‑axis simultaneous motion
- Depth consistency: ±0.01 mm across curves
- Best for: Aerospace, medical implants, automotive.
The Impossible Engraving Jobs: What Others Can’t Do—We Solve
Let’s talk real pain points you’ve hit:
- We can’t get 0.1 mm lines on stainless steel—they blur.
- Titanium engraving tears edges; we can’t hold depth.
- Curved‑surface text misaligns or fades on high points.
- Small tools break constantly—we lose time and money.
Zorapid’s Solution Playbook (Data‑Backed)
Micro‑Lines (<0.5 mm) on Hard Metals (Stainless, Titanium)
Industry Issue: 90% of shops can’t hold sharp edges on <0.5 mm lines—tool deflection, vibration, or heat ruins detail.
Zorapid Fix:
- Ultra‑rigid 5‑axis machines (Mori Seiki) with thermal compensation.
- Diamond‑coated micro‑tools (0.1–0.5 mm) + high‑speed spindles (50,000 rpm).
- Vibration‑damping fixturing + climb milling (reduces burrs by 80%).
- Result: Sharp 0.1 mm lines, zero blur, depth consistent ±0.003 mm.
Depth Consistency on Curved/3D Surfaces
Industry Issue: Ordinary 3‑axis shops can’t adjust for curves—text is deep on low points, shallow on high points.
Zorapid Fix:
- 5‑axis simultaneous machining (tool normal to surface at all times).
- Probe‑based height mapping (auto‑corrects for surface variation).
- Adaptive toolpaths (adjusts depth in real time).
- Result: ±0.005 mm depth consistency across any curve—no faded text.
Tool Breakage in Fine Engraving
Industry Issue: Small tools (<1 mm) break 3–5 times per job on hard materials—costly, slow, inconsistent.
Zorapid Fix:
- Short, rigid tool holders (minimize overhang <5 mm).
- High‑pressure coolant (70 bar) + mist lubrication (evacuates chips).
- AI‑driven feed/speed optimization (reduces tool stress by 40%).Result: 98% tool survival rate on 0.2 mm tools; 0 breakages in 95% of jobs.
Clean Edges on Ductile Materials (Aluminum, PEEK)
Industry Issue: Soft materials smear or form burrs—requires manual deburring, ruins consistency.
Zorapid Fix:
- Polished‑flute carbide tools (reduces material adhesion).
- Light finishing pass (0.02 mm stock) at high speed.
- Cryogenic cooling for PEEK (prevents melting/smearing).
- Result: Zero burrs, clean edges straight from the machine—no manual work needed.
Data Report: Common CNC Engraving Problems & Fixes
We track every defect—here’s the hard data, and how we eliminate these issues for you.
| Problem | Industry Occurrence | Zorapid Solution | Success Rate |
|---|---|---|---|
| Blurry micro‑lines (<0.5 mm) | 85% | Diamond tools + 50k rpm spindle + vibration damping | 99.4% |
| Depth variation (>0.02 mm) on curves | 78% | 5‑axis adaptive toolpaths + probe mapping | 99.1% |
| Tool breakage (≤1 mm tools) | 92% | Short holders + high‑pressure coolant + AI parameters | 98.7% |
| Burrs/smearing (Al/PEEK) | 71% | Polished flutes + finishing pass + cryogenic cooling | 99.3% |
| Misalignment on 3D surfaces | 65% | 5‑axis sync motion + zero‑point fixturing | 99.8% |
Key Insight: Most shops blame the tool; we fix the entire system (machine, fixturing, tooling, parameters). Our scrap rate for engraving is <0.5%—vs. industry average 8–12%.
Why Choose Zorapid for CNC Engraving?
Micro‑Precision Down to 0.1 mm
We engrave 0.1 mm line widths and ±0.005 mm depth accuracy—validated by optical CMM for every batch. Most shops stop at 0.5 mm.
Master of Hard‑to‑Engrave Materials
In‑house expertise for:
- Titanium (Ti‑6Al‑4V, TC4)
- Stainless steel (316L, 17‑4 PH, hardened 50+HRC)
- Nickel alloys (Inconel 718, 625)
- Engineering plastics (PEEK, Ultem, acrylic)
- Aluminum (7075‑T6, anodized)
5‑Axis Capability for Any Surface
We engrave flat, curved, domed, or complex 3D surfaces—no misalignment, no faded text. Ordinary shops are stuck with 3‑axis flat‑only work.
Zero Burrs, Zero Manual Work
Our optimized process delivers clean, sharp edges straight from the machine—no deburring, no hand finishing, no consistency issues.
Fast Delivery (3–5 Days for Prototypes)
No outsourcing, no waiting. 12 in‑house 5‑axis machines mean we start your job same day—deliver in 3–5 days (vs. industry 7–14 days).
Free DFM & Design for Engraving Support
We don’t just machine—we optimize your design for sharpness, durability, and cost. Our engineers review your CAD, flag risks, and suggest tweaks to cut cost by 15–25% and improve quality.
Full Inspection & Traceability
100% dimensional inspection (optical comparator, CMM) + material certifications (COC, RoHS, aerospace traceability). Every part comes with a digital inspection report—no surprises.
Real‑World Case Studies
1: Aerospace – Titanium Turbine Blade Micro‑Engraving
Challenge: 0.2 mm serial numbers on curved Ti‑6Al‑4V blade, ±0.005 mm depth, no burrs, permanent marking.
What Others Did: Declined or quoted 2‑week lead time + high scrap risk.
Zorapid Solution:
- 5‑axis CNC with 50k rpm spindle + 0.2 mm diamond tool.
- Probe surface mapping + adaptive toolpaths.
- High‑pressure coolant + climb milling.Result:
- Delivered in 4 days (vs. 2 weeks).
- 0.2 mm sharp lines, ±0.003 mm depth, zero burrs.
- Customer: Top aerospace engine manufacturer.
Key Applications: Where CNC Engraving Shines
Aerospace & Defense
- Serial numbers, part markings, and traceability codes on turbine blades, engine components, and structural parts.
- Critical Need: Permanent, heat‑resistant, sharp markings for safety and compliance.
Medical Devices
- Implant markings (titanium/PEEK), surgical instrument logos, and calibration scales.
- Critical Need: Biocompatible, burr‑free, ultra‑precise marks for patient safety.
Automotive (EV & Performance)
- Control panel logos, gear shift markings, and engine component serial numbers.
- Critical Need: Durable, wear‑resistant marks for high‑vibration environments.
Electronics & Semiconductor
- PCB legends, heat sink markings, and electronic housing labels.
- Critical Need: Micro‑precision, clean marks for high‑density components.
Industrial & Tooling
- Mold cavity textures, die markings, and machine part identification.
- Critical Need: Deep, consistent engravings for long‑term tool durability.
Branding & Signage
- Metal nameplates, architectural signage, and custom logos on aluminum/brass.
- Critical Need: Sharp, consistent branding for professional appearance.
Delivery Speed: How We Beat Industry Lead Times
Standard Industry:
- Prototypes: 7–14 days
- Small batches: 2–4 weeks
- 5‑axis/curved engraving: 3–6 weeks
Zorapid:
- Prototypes: 3–5 days
- Small batches (10–1,000 pcs): 5–7 days
- 5‑axis/complex engraving: 4–6 days
How We Do It:
- In‑house everything: No outsourcing to third parties.
- AI‑driven workflow: Automated DFM, quoting, and scheduling.
- Parallel processing: Multiple machines work on one project simultaneously.
- Quick‑change fixturing: Reduce setup time from hours to minutes.
Real Promise: If we miss our quoted lead time, we discount 10%—no excuses.
Industry Whitepaper: The Future of CNC Engraving (2026–2030)
Key Trends
- Micro‑Engraving Explosion: Demand for <0.5 mm features in medical and aerospace will grow 25% annually—requiring ±0.002 mm precision.
- AI‑Optimized Processes: Machine learning will drive real‑time parameter adjustment, reducing tool wear by 50% and scrap to <0.1%.
- Hybrid Manufacturing: CNC engraving + SLM 3D printing will enable one‑step complex part production—lead times cut by 40%.
- Sustainable Engraving: Cryogenic cooling and recycled materials will become standard, reducing energy use by 30%.
Zorapid’s Position
We’re already investing in these trends: AI process control, next‑gen micro‑tooling, and ultra‑precision 5‑axis machines. We’re not just keeping up—we’re setting the standard for CNC engraving.
Final Summary
CNC engraving is the gold standard for permanent, precise, durable marking on almost any material. It’s not just about cutting text—it’s about controlling every micron of depth, line width, and edge definition with science, skill, and the right equipment.
Most shops handle simple flat engravings; Zorapid solves the hard ones. We specialize in micro‑precision (0.1 mm), hard‑to‑engrave materials, 5‑axis curved surfaces, and fast delivery (3–5 days). We’re not just an engraving shop—we’re your engineering partner for precision marking.
If you’re tired of blurry lines, burrs, broken tools, or shops that say it can’t be done—let’s talk. Send us your CAD files and specs—we’ll review your design, solve your toughest problems, and deliver engravings that exceed your expectations.
FAQ
What’s the smallest line width Zorapid can engrave?
0.1 mm (0.004 in) on most materials—sharp, clean, and consistent.
What materials can you engrave?
Titanium, stainless steel (hardened 50+HRC), Inconel, aluminum (anodized), PEEK, Ultem, acrylic, brass, and more.
Can you engrave on curved or 3D surfaces?
Yes—5‑axis simultaneous machining lets us engrave any flat, curved, domed, or complex 3D surface with perfect alignment.
Do you offer design help for engraving?
Yes—free DFM review of your CAD to optimize text size, line width, and depth for sharpness and durability.
What quality certifications do you have?
ISO 9001:2015, AS9102 (aerospace), IATF 16949 (automotive). Full material certifications and inspection reports provided.
How fast can you deliver engraved parts?
3–5 days for prototypes; 5–7 days for small batches. Complex 5‑axis jobs take 4–6 days.
