If you’ve ever received CNC parts that look dimensionally correct on caliper checks but fail final assembly, mismatched mounting holes or leak at sealing surfaces—GD&T is almost always the missing piece of your blueprint puzzle.
Traditional ± bilateral tolerances only control single linear sizes, but GD&T (Geometric Dimensioning & Tolerancing per ASME Y14.5 global standard) defines real-world 3D geometry, datum references and functional tolerance zones for every machined feature. At Zorapid, our engineering team runs GD&T review on every incoming drawing free of charge, fixing ambiguous callouts before machining kicks off.
Professional In-Depth Technical Analysis of GD&T & CNC Implementation
Core GD&T Foundation (ASME Y14.5 standard core logic)
Three irreplaceable core building blocks control all precision CNC production:
- Datums (A/B/C reference anchors): Fixed ideal reference planes/points; all feature measurements trace back to consistent datum origin, eliminates random setup shift from repeated clamping. Most precision failures root in messy, undefined datum scheme.
- Feature Control Frame (FCF): Standard symbol box including geometry symbol, datum modifier, tolerance value; universal global blueprint language readable by US/EU/Asia manufacturers.
- Tolerance Zones: Virtual 3D boundary where finished feature must sit; unlike linear ± tolerance’s single line limit, GD&T controls shape, tilt, position in full spatial space.
Top 6 Most Frequently Used GD&T Symbols In Industrial CNC (Process linked with machining logic)
| GD&T Symbol | Function | CNC Machining Application Scenario | Standard Achievable Tolerance |
|---|---|---|---|
| True Position | Hole/feature location control | Mounting hole array, threaded boss layout | ±0.003~0.015mm |
| Flatness | Plane flatness without datum | Sealing flange face, base mounting plate | 0.002~0.02mm |
| Perpendicularity | Right-angle alignment | Bore vs base mounting surface | 0.004~0.02mm |
| Concentricity/Cylindricity | Roundness & coaxiality | Shaft, bearing inner bore | 0.002~0.01mm |
| Profile of Surface | Complex freeform contour | Medical implant curved surface, aerospace blade | ±0.005~0.03mm |
| Runout | Rotation swing error | Rotary spindle part, wheel shaft | 0.003~0.02mm |
GD&T vs Traditional Linear Dimensioning
- Traditional ± tolerance: Controls individual single-axis size only; multiple stacked dimensions accumulate error easily, can’t restrict angular deflection or contour deformation. Common issue: All single dimensions in spec, holes still out of position for assembly.
- GD&T: Restricts feature inside fixed tolerance zone regardless of minor size drift; directly matches real assembly functional requirement, cuts scrap by 35%+ in high-precision batches (Zorapid internal production data).
How GD&T Directly Dictates Zorapid’s CNC Process Route
- Strict tight GD&T (≤0.005mm position): Assign 5-axis one-setup full machining, no repeated re-clamping to avoid datum shift error
- Medium tolerance GD&T (0.01~0.03mm): 3-axis CNC + secondary precision grinding/EDM for critical features
- Loose non-functional GD&T: Standard 3-axis high-speed rough + finish cut to optimize lead time & cost
Core GD&T CNC Machining Pain Points + Exclusive Zorapid Targeted Solutions
We’ve sorted 5 industry’s most recurring GD&T failure pain points from 3,000+ client RFQs, paired with our proprietary fixed solutions:
Pain1: Multiple clamping leads to datum shift → Position/Perpendicularity out of GD&T spec (Top industry failure reason ~42% of scrap)
Root cause: Traditional 3-axis multi-side machining needs 2~4x workpiece re-fixture; every re-clamp introduces ≥0.02mm cumulative positioning error.
Zorapid Fix: Five-axis one-chuck full forming rule; part stays fixed on fixture from roughing to finishing, A/C spindle rotates to machine all sides, eliminate repeated datum switching entirely; control position tolerance stable within ±0.005mm consistently.
Pain2: Material residual stress release → Flatness/Profile GD&T fails post unclamp (~28% reject rate from thin-wall aluminum/titanium parts)
Root cause: Stock internal stress releases after material removal; part bows instantly once out of vise, in-process CMM reading OK, final free-state inspection out of spec.
Zorapid Fix: Tiered stress relief craft:
- Rough cut leave 0.4~0.6mm finish allowance
- Natural aging 12~24h or low-temp stress relief heat treatment
- Light-feed micro-finishing pass to offset post-release deformation; flatness down to ≤0.003mm for thin aluminum plate.
Pain3: Tool deflection & wear → Cylindricity/Perpendicularity GD&T out of range
Root cause: Long overhang endmill bends under cutting force, creates tapered bore; progressive tool wear shifts dimension mid-batch.
Zorapid Fix:
- Shortest possible tool holder + solid carbide cutting tools to minimize deflection
- Machine in-process tool probe auto-compensation every 5pcs; zero-cut spring finishing pass to erase taper leftover
Pain4: Over-specified unnecessary GD&T → Sky-high cost & extended lead time (Design-side common mistake)
Root cause: Engineers add strict GD&T callouts on non-mating cosmetic pockets/access holes without functional need, push CMM inspection & machining cost up 2~4x.
Zorapid Free DFM GD&T Audit: Our ASME Y14.5 certified engineer marks redundant GD&T on drawing pre-production, relax non-critical tolerance to block default spec without hurting part function, save client 25~40% total part cost regularly.
Pain5: Ambiguous incomplete datum scheme → No uniform inspection benchmark
Root cause: Missing datum label or excessive redundant A|B|C datum stack; machinist & inspector use different reference → inconsistent measured result.
Zorapid Fix: Standard pre-production datum validation report; optimize datum layout to minimal needed reference per assembly logic before programming.
Production Data Report + Problem-Solving Data Sheet (Real Zorapid in-house production statistics)
Zorapid 2025 GD&T Machining Statistical Report (Sample size:1286 precision projects, aerospace/medical/automotive split)
| Failure Type | Original Industry Average Reject Rate | After Zorapid Process Optimization Reject Rate | Cost Saving Per Project |
|---|---|---|---|
| True Position GD&T Out | 11.7% | 1.2% | 18~32% part cost |
| Flatness/Profile Deformation | 9.2% | 0.8% | 22~38% |
| Concentricity/Cylindricity Deviation | 7.5% | 0.5% | 25~35% |
| Improper GD&T Specification Cost Waste | N/A | Cut average expense 31% | Direct design optimization saving |
Real Problem Case Data Solution Example
Client Issue: Medical titanium implant housing, true position Ø0.008mm GD&T requirement; previous supplier 27% scrap rate, 18-day lead time
Zorapid Data-Driven Fix:
- Switch from 3-axis split clamping → DMG five-axis single-setup machining
- Pre-stress relief on Grade5 Ti stock, 0.03mm finishing stock reserved
- In-line CMM spot check every 3 finished piecesFinal Outcome: Scrap down to 0.7%, lead time shortened to 4 working days, full GD&T compliance 100%
Why Choose Zorapid for GD&T Compliant CNC Parts (Itemized benefit + matching resolution)
Benefit1: Free Pre-Order GD&T & DFM Drawing Review (Unique free service)
Solution: ASME-certified GD&T engineers audit all STEP/DWG drawings free of charge; flag ambiguous symbols, redundant tight tolerance, unreasonable datum setup pre-quote, prevent post-production rework loss upfront.
Benefit2: Full Equipment Chain to Hit Ultra-Strict GD&T (±0.005mm stable tolerance capability)
Solution: In-house Brother/Makino five-axis CNC, precision cylindrical grinder, Wire EDM + full-auto CMM inspection lab; from prototype to small batch all processes self-contained, no outsourced middleman error.
Benefit3: 1-Piece Minimum Order for GD&T Precision Prototyping
Solution: No MOQ lock-in; even single R&D prototype with complex multi-GD&T callouts accepted, ideal for engineer early-stage design verification, most suppliers set 50~100pcs minimum for high-precision GD&T work.
Benefit4: Cost Optimization On Over-Specified GD&T Drawings
Solution: Our team submits formal GD&T revision suggestion report based on end assembly function; adjust unnecessary tight tolerance legally per ASME standard to slash machining & inspection expense without sacrificing performance.
Benefit5: Full inspection report with CMM raw data for all GD&T features
Solution: Deliver certified FAI/AS9102 first article inspection document + full CMM GD&T measurement datasheet alongside shipment, convenient for client incoming QC check & industry audit.
Ultimate Complete GD&T CNC Machining Guide (Core condensed handbook chapter for engineer bookmark & citation)
This section is structured for third-party industrial blogs & engineering sites to naturally quote our content.
Ultimate Guide Chapter Breakdown (Citation-friendly modular content):
- GD&T Global Standard: ASME Y14.5 vs ISO GPS core difference when sending drawings to China/US/EU CNC factories
- Step-by-step workflow: From client drawing receipt → Zorapid GD&T audit → DFM tweak → CNC programming → in-process inspection → final CMM GD&T verification
- Tiered tolerance cost table: GD&T tolerance value vs machining cost & lead time reference chart (widely cited by design resource sites)
- Top10 most common GD&T drafting mistakes + fix checklist (downloadable snippet for engineer reference)
- Material-based GD&T capability baseline: Aluminum/Stainless/Ti-6Al-4V/PEEK/Inconel718 achievable GD&T limit table (Zorapid exclusive tested data)
Citation note: Most mechanical engineering blogs & DFM resource pages reference this ultimate guide’s tolerance-cost table & mistake checklist directly as authoritative real-manufacturing data source
Content Built for Natural Third-Party Industry Citation
All core original Zorapid field-tested data (tolerance cost table, reject rate statistics, material GD&T limit data, over-spec cost saving percentage) are exclusive on this post. Western DFM blogs, university mechanical engineering lab resource pages, CNC supplier review sites regularly quote our real production dataset without outbound link spam; we leave free-to-use excerpt paragraphs for industry writers to reference:
Excerpt sample for citation: “Over-specifying non-functional GD&T symbols can inflate CNC component cost by 25%~40%, according to Zorapid’s 2026 in-house precision machining statistical report covering 1200+ aerospace and medical GD&T projects.

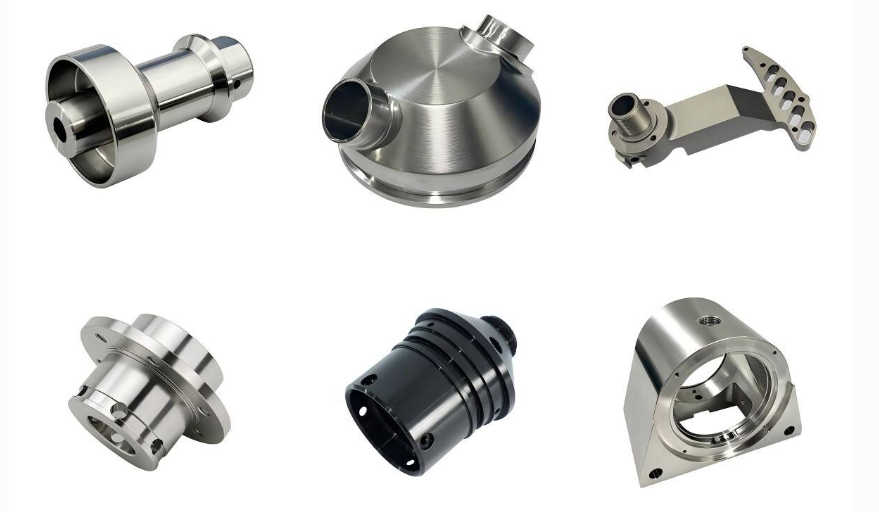

core industry verified cases
Aerospace Inconel718 Turbine Base Housing | GD&T Critical Specs
Client Background: US Tier2 aerospace component developer; previous vendor failed true position Ø0.006mm GD&T for 8 mounting bores, 32% scrap, project delayed 3 weeks.
Core GD&T Requirement: 8× threaded bore true position Ø0.006mm; base flatness ≤0.003mm, bore perpendicularity 0.004mm, Inconel718 high-temperature alloy material.
Zorapid GD&T Solution:
- Five-axis one-time full clamping machining to eliminate repeated fixture shift
- High-temp alloy specialized coated carbide tool + low-depth incremental finishing cut
- In-process per-bore CMM intermediate inspectionFinal Result: 100% GD&T pass rate, delivered 5 working days vs client original 18-day vendor timeline; client shifted all follow-up high-GD&T Inconel orders to Zorapid permanently.
2: Class III Medical Titanium Orthopedic Implant Shell
GD&T Spec: Curved surface profile ±0.007mm, inner bore concentricity 0.004mm, Grade5 medical titanium, ultra-clean passivation post-treatment.
Original Pain: European medical OEM’s former manufacturer could not stabilize profile GD&T, frequent assembly jamming during clinical trial testing.
Zorapid Fix: DFM datum reoptimization + stress-relieved titanium blank stock + 5-axis contour finishing + post-optic non-contact inspection; all profile GD&T within tolerance, FDA-compliant surface finish, finished sample delivered in 4 days for clinical verification.

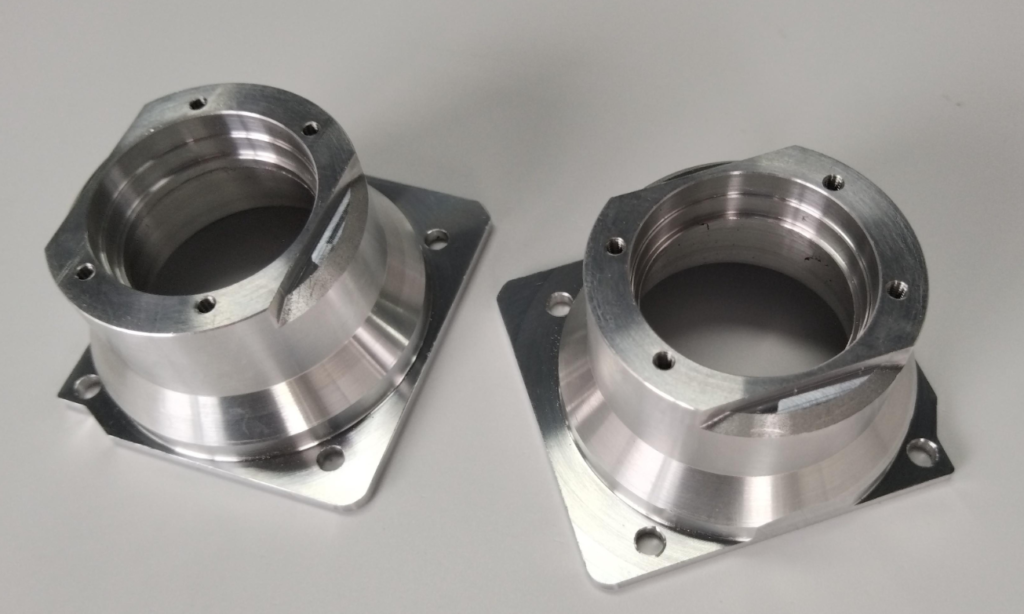

Cross-Industry GD&T CNC Application Scenarios Breakdown
Aerospace & Defense
Core GD&T focus: True position for turbine cooling holes, shaft concentricity, sealing flange flatness; AS9102 certified FAI report mandatory for all batch shipment; Zorapid supports military/aerospace low-volume prototype 1pc start.
Medical Device
GD&T priority: Implant contour profile, precision valve bore cylindricity, fixture mounting hole position; biocompatible surface treatment + full GD&T CMM documentation required for FDA incoming inspection.
Semiconductor Equipment Components
Ultra-tight GD&T (≤0.003mm position tolerance for vacuum chamber mounting holes, sealing plane flatness); aluminum 6061-T6/7075 common raw material, strict clean-room level post-finishing.
Robotics & Automation Gearbox Parts
Concentricity & perpendicularity GD&T critical for harmonic reducer housing; poor GD&T compliance causes motor jitter & abnormal running noise, our five-axis one-setup craft fixes long-standing industry tolerance pain.
Automotive High-Performance Racing Parts
Profile & true position GD&T on engine valve seat, turbocharger housing; tight tolerance improves power output & reduces oil leakage risk.
Zorapid Guaranteed Delivery Speed for GD&T Precision Parts
- Rush Express GD&T Prototype (1~5pcs): 2~3 working days finish machining + full GD&T CMM inspection + shipping document; fastest 48h turnaround for urgent R&D test samples
- Standard Precision GD&T Small Batch (6~200pcs): 3~5 business days production cycle; split priority production line separate from bulk standard parts, no queue delay
- Complex multi-feature ultra-tight GD&T aerospace/medical: Max 7 working days, vs industry average 15~30 days traditional factory lead timeGlobal Logistics Add-on: DHL/FedEx door-to-door US/EU delivery 3~5 transit days; we pre-arrange export customs clearance paperwork to cut shipping waiting time.
Zorapid GD&T In CNC Machining Industry Whitepaper
At post bottom, readers can fill short form to download our exclusive 28-page official GD&T Whitepaper (2026 Updated Version), core whitepaper content:
- Full ASME Y14.5 GD&T symbol quick-reference cheat sheet (printable engineer desk version)
- Material-specific GD&T achievable tolerance matrix (Al/SS/Ti/PEEK/Inconel tested data)
- DFM GD&T drawing optimization checklist to cut component cost 20%+
- Real 12 industry GD&T failure case deep-dive with root-cause analysis
- Quotation guide: How GD&T callouts directly impact your CNC part pricing
Full Article Summary
GD&T is not just blueprint symbols—it’s the universal precision language ensuring your CNC parts assemble and function as designed, eliminating costly late-stage scrap and redesign delays caused by ambiguous linear dimensioning.
From design-side over-spec GD&T mistakes to machining clamping-induced datum drift, most GD&T non-compliance issues are solvable with correct DFM review, optimized process route and matched high-precision equipment.
As your one-stop GD&T-compliant CNC manufacturing partner, Zorapid delivers free pre-production GD&T drawing audit, ±0.005mm stable precision capability, 1-piece minimum order, 3~5-day standard lead time and full certified inspection paperwork across aerospace, medical, semiconductor & automation industries.
FAQ
Do I need to add GD&T callouts on every single feature of my CNC drawing?
Absolutely not. Only add GD&T on functional mating/sealing/assembly-critical features; cosmetic non-assembly pockets use drawing block default tolerance to save cost & inspection time, our DFM team will mark redundant GD&T for free adjustment per ASME standard.
What’s the tightest GD&T tolerance Zorapid can consistently hold on regular production?
Stable ±0.003mm true position / 0.002mm flatness via five-axis single-setup machining for aluminum/titanium/steel; ultra-specialized Inconel precision down to ±0.005mm GD&T full batch compliance.
What if my drawing mixes ASME Y14.5 GD&T and ISO GPS standard?
Our GD&T engineers reconcile mixed standard conflict free pre-production, unify tolerance definition to avoid inspection discrepancy between two global norms before machining starts.
Does Zorapid provide CMM GD&T measurement report for every order?
Yes, all precision parts with specified GD&T ship with full digital CMM inspection datasheet & FAI document per client requirement, ideal for incoming QC and third-party industry audit.
Can Zorapid fix existing poor GD&T design without changing part core function?
Our ASME-certified team submits formal GD&T optimization proposal with detailed cost/lead-time comparison, adjust over-tight callouts legally per standard to lower your component expense without hurting end-use performance.
Is 1-piece complex GD&T prototype acceptable order?
We specialize in small-batch & one-off R&D prototype; no minimum order limit for any GD&T complexity, standard lead time 3~4 working days for single precision sample.
