The choice of cutting technology depends on the type of material, with different methods for thin sections and thick sections. Thick materials are difficult to cut and may cost more compared with cutting aluminum. Aluminum features excellent machinability, and virtually any cutting technology is suitable for aluminum tubes. In the metal cutting industry, circular saws and shearing machines are the preferred options.
Before deciding on the best aluminum cutting solution for your project, it is advisable to understand the entire process, including which cutting techniques are safe and how to cut aluminum sheets cleanly.
Is aluminum easy to cut?
Aluminum is a ductile metal and a commonly used material in global industry. It offers good machinability yet still presents certain challenges. Aluminum is generally easy to work with, but inexperienced machinists may struggle to maintain a clean cutting line. Choosing the right cutting technique is extremely important. Circular saws work well for cutting aluminum, but they are not suitable for thin aluminum sheets. Aluminum is ductile and heats up quickly. Improper cutting methods can cause the material to bend or snag. Therefore, selecting the best saw for aluminum cutting is essential to achieve smooth and perfect cutting results.

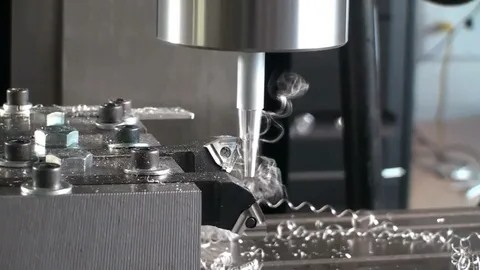

Aluminum Cutting Tools and Equipment
The best aluminum cutting saws deliver precise cuts and high work quality. They also ensure compliance with specifications for aluminum alloy cutting requirements. Professional cutting techniques help avoid material waste and prevent any loss or damage.
By selecting suitable aluminum cutting tools and equipment, you can achieve efficient and stable operation, and cut aluminum sheets cleanly and neatly. The best saws for cutting aluminum tubes.
How to Cut Aluminum: Proven Cutting Methods
Common cutting techniques for aluminum include power tool cutting.
These tools and their usage methods.
Saw Cutting Aluminum
Circular saws are the first choice in the aluminum cutting industry. To cut aluminum sheets cleanly, metal-cutting saw blades are usually selected. Non-ferrous metal cutting blades are also widely used, including woodworking blades with carbide tips.
Circular saw blades are ideal for cutting aluminum sheets to size, as well as easily cutting aluminum pipes and profiles.
Cutting Aluminum with a Jigsaw
A jigsaw fitted with heavy-duty metal cutting blades can cut aluminum sheets cleanly. These aluminum cutting blades are specially designed for this purpose.
Variable cutting speed is also applied when cutting aluminum. Adjust the speed according to cutting requirements to cut aluminum tubes or sheets down to the required size.
Cutting Aluminum with a Circular Saw
Cutting aluminum with a circular saw is not an easy task. The best cutting results with a circular saw are achieved by using aluminum-cutting blades with carbide tips. It is important to secure and position the material at the corners with clamps. Cutting aluminum with a circular saw requires practice to handle complex cutting projects.
Cutting Aluminum with a Miter Saw
To get the best results when cutting aluminum, it is crucial to choose the right saw blade for the miter saw. For non-ferrous metals, triple-ground blades are the best option. This tooth profile delivers excellent performance on aluminum and also works well on plastics.
Miter saw cutting technology is suitable for both aluminum and steel. It produces far more chips than cutting ordinary wood materials. This cutting method is ideal for small aluminum projects.
Cutting Aluminum with an Angle Grinder
An angle grinder is one of the best tools for cutting aluminum. Compared with other methods such as sawing and drilling, it is the simplest aluminum cutting technique. Operators need experience to use an angle grinder with accuracy and precision. Once you become proficient, it is also the fastest cutting method.
Proper contact between the aluminum cutting disc and the metal workpiece enables precise cutting. The selection of aluminum cutting discs depends on the thickness of the metal. Diamond discs are recommended for thin aluminum sheets, while grinding discs are suitable for thicker sections.
It is also critical to ensure the disc is compatible with the angle grinder’s speed and size, which can reduce the risk of damage and material waste.

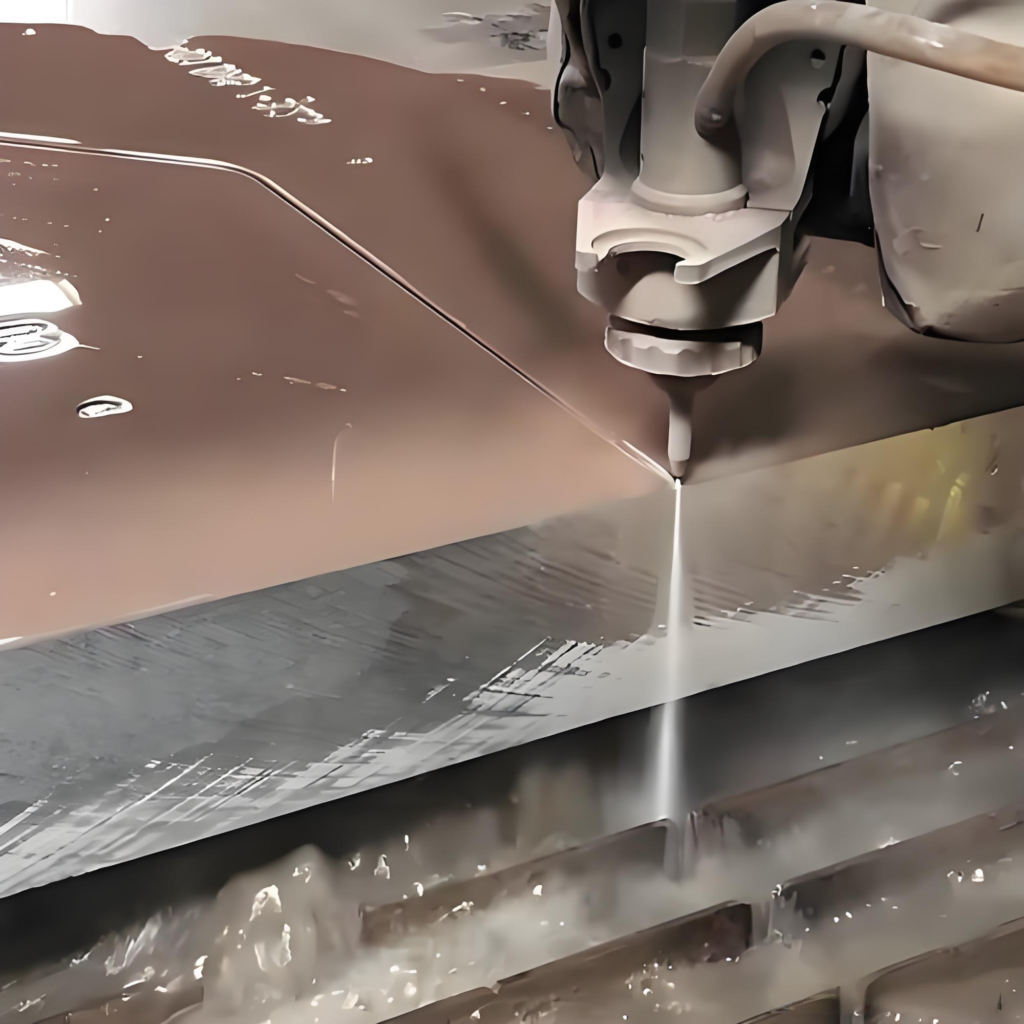

Waterjet Cutting of Aluminum Sheets
If you want to achieve high-quality results when cutting aluminum, the waterjet method is the best choice. It is equipped with a cutting head that discharges water at high pressure. The waterjet head is aimed at the metal being cut, and can cut through the full thickness of the material.
Abrasive waterjets are commonly used for aluminum cutting. Adding abrasive materials into the water jet allows aluminum to be cut quickly and easily. It outperforms laser cutting methods.
This advantageous cutting method causes no thermal deformation and produces no heat-affected zone during the cutting process. It can cut complex designs and deliver high-quality finished work.
Scoring Cutting Technology
Thin aluminum sheets can be cut to size using the scoring method. This method requires no power tools. First, lay an old tarpaulin on a flat surface, then place the metal sheet on top. Mark a straight line on the metal according to the dimensional requirements.
Next, run a sharp knife along the marked line in a back-and-forth scoring motion. To achieve a clean cut on aluminum, bend the sheet back and forth until it snaps apart. Apply gentle pressure at all times to prevent material damage or fracture defects.
Drilling Cutting Method
If all other cutting methods fail, weld cutting becomes the last option for cutting aluminum. It is a relatively simple cutting method that can cut aluminum sheets, aluminum tubes and aluminum profiles cleanly.
This cutting method does not require highly skilled workers or expensive equipment. First, mark the outline on the aluminum tube or aluminum sheet, then drill holes along the marked line, and finally finish the cut with an angle grinder or saw blade.
Cutting thicker aluminum sheets requires special drill bits. These drill bits are usually made of cobalt or tungsten carbide, which can withstand the high temperature generated during aluminum cutting.
The Best Methods for Cutting Aluminum
Cutting aluminum can be challenging, yet there are many simple ways to perform the cutting safely and more practically. Cutting techniques differ for thick sections and thin sections. Thick sections usually require more power, making power tools an excellent choice. Thin sheets can be cut easily with tin snips.
In earlier times, long chisels were also used, which was a difficult and time-consuming method. Modern cutting methods include waterjet cutting, as well as various types of grinders and saws.
Cutting Aluminum Sheet Metal to Size
Aluminum sheets with thin sections are generally easier to cut. Common cutting techniques include circular saw cutting, CNC machining, plasma cutting, metal shearing, and more.
Lubricant should be applied before cutting to avoid irregularities during the process. It is also critical to select the right aluminum cutting blade. Smaller-sized blades deliver clean cuts and higher dimensional accuracy for aluminum sheets.
Best Way to Cut 1/8 Inch Aluminum Diamond Plate
A circular saw is the best method for cutting 1/8 inch aluminum diamond plate. It is the fastest and simplest cutting technique. Blades with fine teeth provide excellent cutting results. Standard wood-cutting blades can also achieve precise cuts on thin aluminum plate.
Best Methods for Cutting Thick Aluminum
Thick aluminum sections can be cut with a spiral saw. Carbide saw blades are generally not recommended for cutting sections thicker than 3 mm. For better results, saw blades with a low tooth count and positive rake angle are recommended.
For thicker workpieces, engaging the metal with too many saw teeth at the same time poses cutting risks. Larger teeth can remove more material per cut. Applying lubricant on the metal surface helps reduce uneven cutting.
How to Cut Thin Aluminum Sheets
A jigsaw is the best tool for cutting thin aluminum sheets. Woodworking saws can also be used for this purpose.
Choosing the right blade for aluminum sheet cutting is critical; circular blades perform better than straight blades. The smaller the pitch of the saw teeth, the finer the chips produced, and it also prevents the aluminum sheet from bending during cutting.
What Are the Uses of Aluminum Cutting?
Aluminum cutting is performed to shape the metal into the form required for specific applications. Tools make contact with the workpiece and carry out various operations such as drilling, sawing, and waterjet cutting to machine the material.
It is an essential step in engineering design and manufacturing processes. This process improves workpiece processing efficiency and reduces overall production costs. It also helps avoid material waste in subsequent production stages.
Aluminum Downspouts
Aluminum cutting is also widely used in the manufacturing of downspouts.
They allow rainwater to flow down to the ground smoothly and prevent dripping or splashing from gutters.
For residential use, the common size is 5–6 inches. For industrial applications, larger sizes of about 7–8 inches are adopted. Dimensions can be customized according to the building structure.

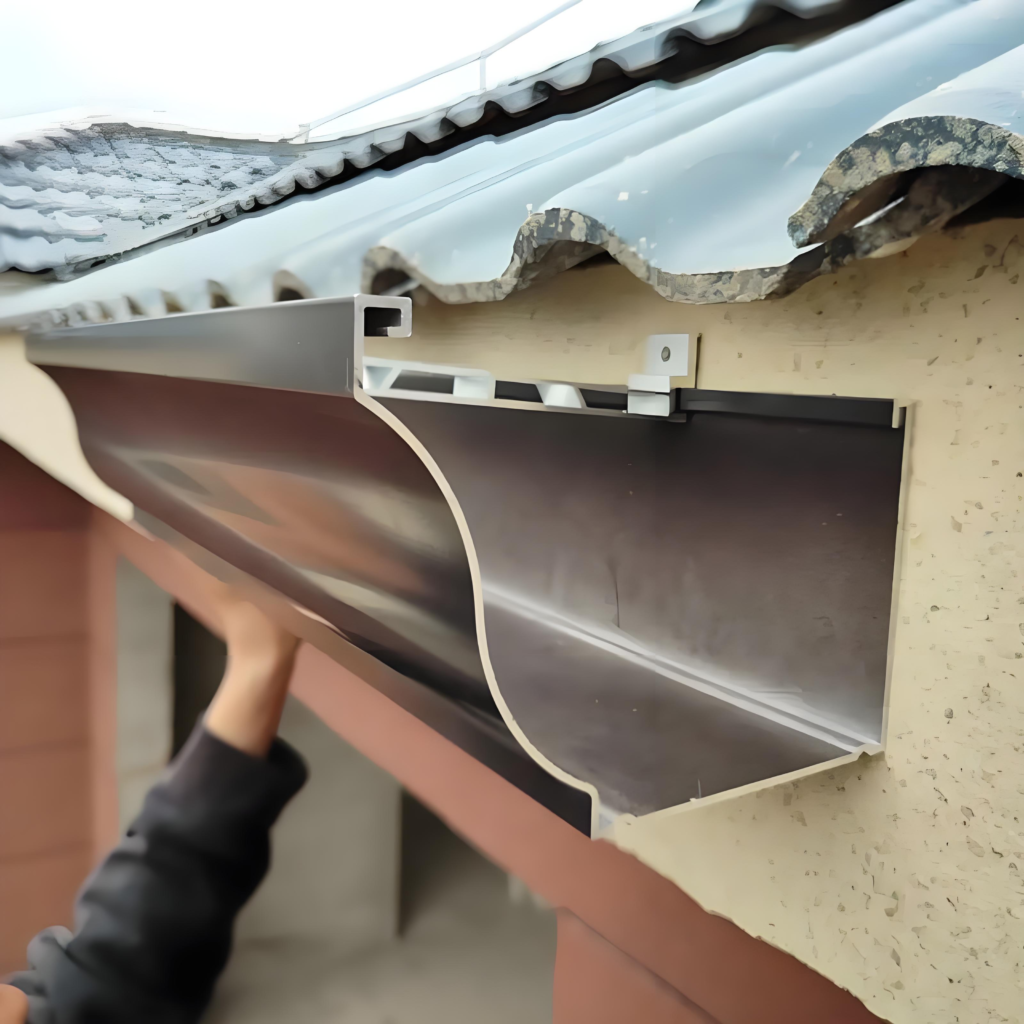

Aluminum Gutter
Aluminum features high strength and durability, enabling it to withstand harsh environments, making it ideal for gutter applications.gutters also deliver excellent corrosion resistance. They are not prone to cracking or fading over time, serving as a reliable option for long-term good appearance and high performance. Waste and debris during rainstorms can also be effectively managed with aluminum gutters.
Aluminum Soffit
The soffit is installed beneath the gutter along the roof edge. It serves to connect the roof edge with the exterior wall of the house and is generally ventilated. A soffit can also be fitted under porch roofs instead of below gutters.
Using aluminum for soffits brings many benefits. It prevents excessive leakage and offers great corrosion resistance, greatly extending service life. It is the top-choice material where durability is essential.

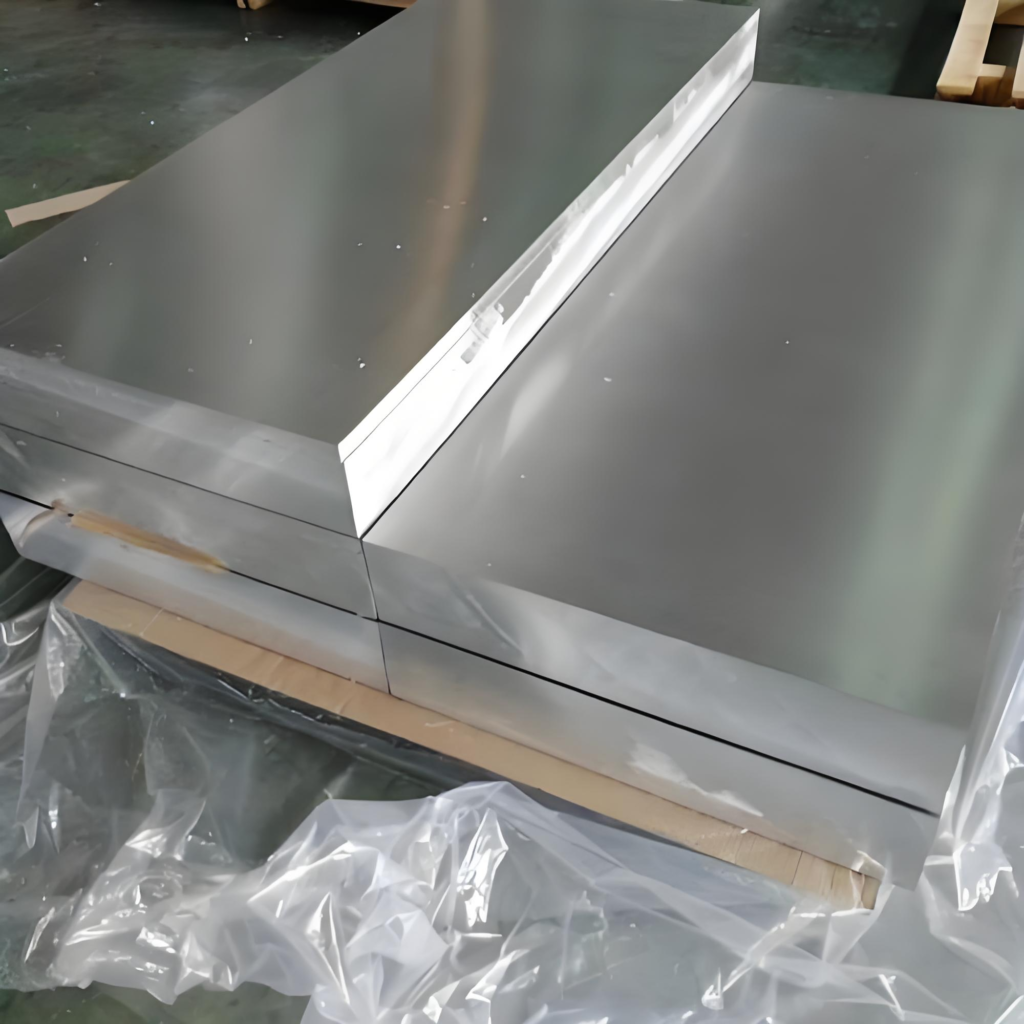

Aluminum Sheet
Aluminum sheets are commonly used in the production of cookware. They are also widely applied for packaging in the food processing industry.
Other applications of aluminum sheets include the manufacturing of vehicle frames and car bodies. Regarded as a premium building material with outstanding durability and structural strength, aluminum sheets are frequently used for drainage systems and wall paneling.
Aluminum Sheet
Aluminum sheets are widely used as panel materials for exterior wall cladding and facade construction. They are also applied in insulation and folded panel fabrication.
Aluminum sandwich panels are in high demand. They are lighter in weight yet structurally stronger than other metals and alloys such as steel.

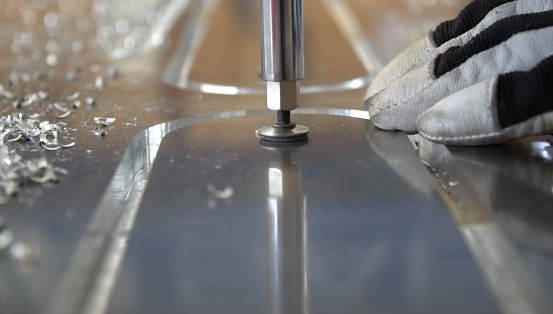

Can I cut aluminum with a CNC machine?
Any machinist who has ever broken a carbide drill bit will tell you there is a world of difference between simply cutting material and machining proper parts.
Aluminum is often regarded as an ideal material — lightweight, strong, and relatively soft. However, it is highly gummy and sticky. If your machine lacks sufficient rigidity or the feed rate is slightly off, aluminum will melt and cling to the cutting tool faster than you can hit the emergency stop button. While hobby-grade desktop milling machines can machine 6061 aluminum with ease, they frequently suffer from chatter marks and tangled chips.
Professional CNC Machining: https://zorapid.com/cnc-machining
This solution eliminates all your DIY frustrations. The key lies in controlling physical properties: using a high-rigidity spindle to eliminate vibration, and adopting precise chip removal systems to keep tools running at low temperatures.
If your project demands ultra-high precision or mirror-like surface finishes that hand saws and basic hobby equipment cannot achieve, industrial-grade CNC is the better choice.
Why Choose Zorapid for Custom Aluminum Parts?
A reliable supplier is the most critical component of any project. Custom CNC precision machining services are the optimal choice for aluminum machined parts.
Zorapid provides manufacturing services for metal stamping, bicycles, automobiles, medical devices, and aerospace mechanical parts. We also produce aluminum parts for cabinets, frames, and enclosures.
Our services include laser cutting, shearing, forming, rolling, design, installation, assembly, and more.
Learn more at: https://zorapid.com
FAQ
How to Cut Aluminum Without Power Tools?
Aluminum can be cut without power tools. A common method is the scoring technique for thin aluminum sheets. A hacksaw is used for cutting thick aluminum materials. Drilling is another method for thick aluminum as well. Drilling creates a heat-affected zone when cutting aluminum, which may alter the performance of the finished product.
How to Cut Aluminum Angle?
A miter saw is the best option for cutting aluminum angle profiles. It is commonly fitted with carbide-tipped blades designed for non-ferrous metals. For optimal results, it is essential to follow safety precautions and have professional know-how when using aluminum angle cutting tools.
How to Cut Extruded Aluminum?
Band saws deliver efficient cutting performance for extruded aluminum, especially for thick aluminum and large-size workpieces. Using the correct blade along with proper safety precautions ensures a clean cut and helps prevent heat buildup in the metal and potential damage caused by overheating.
