If you’re sourcing flight-grade titanium parts, you’ve hit two recurring roadblocks:
- Pick 5-axis CNC for solid structural hardware, or SLM 3D printing for lightweight complex geometries?
- How do you vet a reliable aerospace supplier that hits AS9100 traceability, tight GD&T tolerances, and on-time delivery?
This no-fluff supplier guide is built for aerospace design engineers, procurement managers, MRO teams, and startup space tech builders across Europe, USA, Canada, and Australia.
At Zorapid, our 3,000㎡ certified manufacturing center runs dedicated 5-axis titanium machining cells and industrial SLM metal printing lines daily. We deliver flight-qualified Ti-6Al-4V parts for airframe brackets, turbine internals, rocket manifolds, and satellite components. We’ve fixed every common sourcing headache: inconsistent material certs, missed lead times, poor surface finish, and hidden post-processing fees.
5-Axis CNC Titanium vs SLM Titanium Aero Parts
We split this into core manufacturing logic, tolerance performance, surface finish, mechanical properties, lead time, and real aerospace cost data.
Core Manufacturing Difference

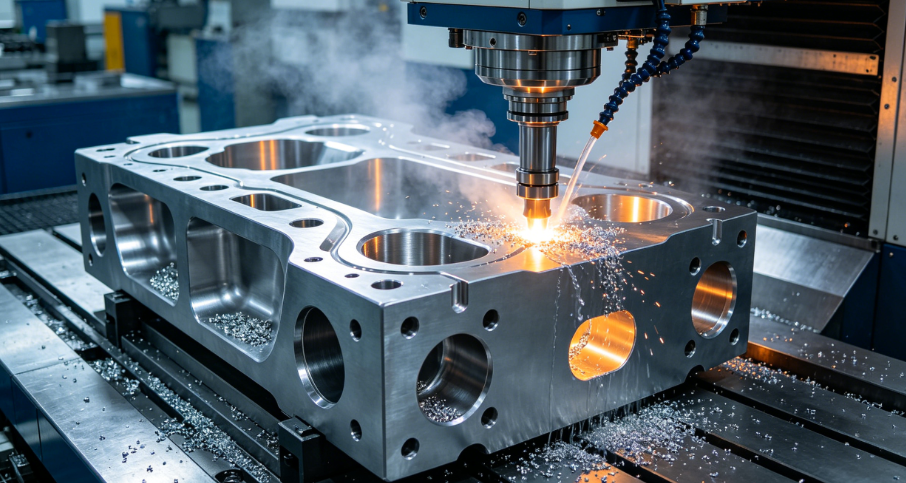

- 5-Axis CNC Machining (Subtractive) Starts with solid aerospace titanium billet. 5-axis simultaneous movement cuts material away in one single fixture setup. RTCP toolpathing accesses undercuts, complex curved surfaces, and angled drill/tap holes without repeated re-clamping (cuts alignment scrap risk by 70% vs 3-axis)Avalon. Best for: Load-bearing primary airframe parts, mating surfaces, precision bearing seats, threaded assemblies requiring isotropic full-density metal.
- SLM Selective Laser Melting (Additive) High-power laser melts layered Ti-6Al-4V powder inside inert argon chamber. Builds impossible geometries: conformal cooling channels, lightweight lattice structures, hollow manifolds, integrated support ribs with zero assembly steps. Best for: Low-volume prototype manifolds, rocket fuel injectors, satellite lightweight brackets, organic topology optimized parts that cannot be milled.
Tolerance & Surface Finish Benchmarks (Aerospace Spec)
| Metric | 5-Axis CNC Titanium | SLM Titanium (As-Printed + Post-CNC Finish) |
|---|---|---|
| Standard GD&T Tolerance | ±0.005 mm critical features | ±0.08 mm as-printed; ±0.005 mm after 5-axis secondary machining |
| Surface Roughness Baseline | Ra 0.4–0.8 μm straight off machine | Ra 7–15 μm grainy layer texture raw print |
| Sealing/Bearing Surface Capability | Mirror polish Ra <0.1 μm available | Requires secondary CNC milling/polishing for fluid-tight fits |
| Sharp Internal Corners | Perfect crisp radii, zero powder residue | Raw print leaves partial sintered powder trapped in small cavities |
Mechanical Property Comparison (Flight Safety Critical)
- 5-Axis CNC Titanium Full isotropic material performance, identical strength in all directions. Minimal residual stress after standard stress relief. Superior fatigue life for cyclic flight loads – ideal for primary structural components subjected to thousands of flight cyclesecoreprap.
- SLM Titanium Static tensile strength matches forged Ti-6Al-4V, but anisotropic (weaker along vertical print layers). Mandatory HIP hot isostatic pressing required for aerospace load parts to eliminate micro porosity. Post heat treatment removes residual print stress before deliveryecoreprap.
Real-World Lead Time Breakdown (Zorapid Standard & Rush)
1–5 Units (Prototype / NPI Validation)
- 5-Axis CNC Titanium: Standard 6–9 business days; Rush expedited 3–4 days (25% surcharge) Prep delay: CAM simulation, fixture design, high-pressure coolant titanium cutting setup
- SLM Titanium: Standard 2–4 business days; Same-day rush printing available Zero custom fixture costs, CAD upload straight to print chamber
10–100 Units (Low-Volume Aero Production)
- 5-Axis CNC: 8–12 days; one-time programming cost amortizes across batches, per-unit cycle time drops sharply
- SLM: 7–14 days; print plate capacity limits batch speed, per-unit cost barely scales down
100+ Production Runs
- 5-Axis CNC wins on speed & cost; SLM becomes uneconomical for simple solid titanium parts
Aerospace Cost Breakdown Drivers (Ti-6Al-4V Example)
Upfront Fixed Costs
- 5-Axis CNC: $120–$320 one-time CAM programming + custom fixture setup fee
- SLM Printing: $0 fixed setup cost; only powder, inert gas, and machine runtime charges
Per-Part Unit Cost Cross Over Point
- Simple solid titanium brackets: CNC cheaper above 60–80 pieces
- Complex lattice / internal channel manifolds: SLM cheaper below 100 pieces
Hidden Aero Surcharges
- 5-Axis CNC Add-Ons
- 100% CMM GD&T inspection: 15–20% cost uplift
- Passivation, bead blasting, MIL-spec surface treatments: Batch pricing
- High-pressure coolant titanium tool wear premium
- SLM Add-Ons
- HIP heat treatment for flight structural parts: Flat $95 build plate fee
- Secondary 5-axis finish machining on critical mating surfaces
- Aerospace non-destructive testing (PT/UT ultrasonic inspection)
When You Must Choose 5-Axis CNC Titanium Aero Parts
Pick Zorapid’s 5-axis titanium machining service if your project hits any of these requirements:
- Primary load-bearing airframe structural brackets, landing gear sub-components
- Critical mating surfaces, bearing seats, threaded holes, fluid sealing faces needing Ra <0.8 μm
- High-cycle fatigue applications (commercial aircraft, turbine rotating hardware)
- Batch volumes of 50+ identical solid titanium parts
- Drawings with tight ASME Y14.5 GD&T positional tolerances down to ±0.005 mm
- Hardware requiring full isotropic mechanical performance without HIP post-processing
When SLM Titanium Is The Right Aerospace Solution
SLM additive manufacturing is your top sourcing choice for these aerospace use cases:
- Topology optimized lightweight brackets, satellite structural frames (30–50% weight reduction vs solid CNC billet)
- Parts with internal conformal cooling channels, integrated fuel manifolds, complex hollow geometries impossible to mill
- Low-volume NPI prototypes, single-unit test articles for rocket & satellite development
- Consolidated multi-piece assemblies – SLM prints one unified part instead of 4–6 separate CNC components
- Cryogenic satellite hardware with custom organic lattice shock absorption structures
Zorapid Hybrid Titanium Aero Workflow
90% of our aerospace clients combine both processes to cut development timelines by 40% and eliminate expensive CNC rework. Our standard hybrid playbook:
- SLM print 2–5 prototype iterations fast (2–4 day turnaround) to validate lightweight lattice geometry, internal channel flow, and assembly fit
- Lock final CAD design after flight testing prototypes
- Run critical mating, sealing, and threaded surfaces through 5-axis CNC secondary machining to hit aerospace precision tolerances
- Scale medium/high batches fully on 5-axis CNC once geometry is fully validated
This hybrid method avoids wasting thousands on CNC fixture reprogramming for untested experimental designs. Zorapid delivers unified quotes, single batch shipping, and consistent AS9100 quality control for mixed SLM + CNC orders.
Non-Negotiable Aerospace Supplier Compliance Checklist
Before awarding any titanium aero part order, confirm your supplier checks every box below – Zorapid maintains full compliance for all aerospace customers:
- Material traceability: Full MTC mill certificates matching each titanium heat lot number
- AS9100 certified quality management system (full audit records available on request)
- In-house CMM coordinate measuring machine for 100% FAI first article inspection
- NDT testing capacity: PT penetrant, UT ultrasonic inspection per ASTM aerospace standards
- HIP heat treatment furnace for SLM structural flight components
- High-pressure coolant dedicated 5-axis titanium machining cells (reduces tool wear & thermal deformation)
- Controlled climate quality lab for dimensional validation
- Archiving of all inspection reports, process logs, and material certs for minimum 7 years
FAQ
What titanium grade does Zorapid use for aerospace 5-axis & SLM jobs?
Our primary flight-qualified material is Ti-6Al-4V Grade 5 matching AMS 4928 billet spec for CNC and aerospace spherical Ti-6Al-4V powder for SLM. We also stock Ti-5Al-2.5Sn, Ti-10V-2Fe-3Al and Ti-3Al-2.5V for specialized cryogenic and high-strength landing gear applications. All raw material comes with full traceable mill test certificates.
Can SLM titanium parts pass FAA flight safety standards?
Yes, but only with mandatory post-processing. SLM titanium for primary flight structures requires HIP hot isostatic pressing to eliminate micro porosity, followed by stress relief heat treatment, full NDT PT/UT inspection, and secondary 5-axis CNC finishing on critical load surfaces. Zorapid delivers complete compliance documentation for FAA and EASA audit requirements.
At what order quantity is 5-axis CNC cheaper than SLM titanium?
For standard solid airframe brackets, the cost crossover sits around 60–80 identical units. For complex lattice/manifold parts with internal channels, SLM remains cost-effective up to roughly 100 pieces before CNC becomes more economical at higher batches.
What tolerance can Zorapid hold on 5-axis titanium aerospace parts?
Our 5-axis simultaneous machining cells consistently hold ±0.005 mm critical feature tolerances per ASME Y14.5 GD&T specs. We can achieve Ra 0.1 μm mirror polish for fluid sealing and bearing contact surfaces required in engine and hydraulic aerospace hardware.
How long does SLM titanium post-processing (HIP + heat treat) add to lead time?
HIP furnace cycle takes 1–2 business days, plus stress relief heat treatment adds an additional 0.5–1 day. If you require secondary 5-axis finish machining on printed parts, add another 2–3 days to your total turnaround. We list all post-processing timelines upfront in every formal quote.
Does Zorapid offer full aerospace non-destructive testing (NDT)?
Yes, our in-house quality lab runs PT liquid penetrant testing and UT ultrasonic inspection per ASTM E1417 and ASTM E2375 aerospace standards. We provide full signed NDT reports packaged with every shipment for OEM audit traceability.
Can you combine SLM printing and 5-axis CNC in one single order?
Absolutely, our hybrid manufacturing service handles mixed prototype SLM and production CNC titanium parts under one unified purchase order. You receive one consolidated quote, single shipping batch, and consistent quality documentation instead of coordinating two separate suppliers.
What’s the biggest risk when sourcing uncertified SLM titanium for aerospace?
Uncontrolled micro porosity in printed layers leads to premature fatigue failure under cyclic flight loads. Vendors skipping HIP treatment will fail FAA/EASA audits, and missing material traceability MTCs will result in full part rejection and costly production delays. Zorapid never ships aerospace structural SLM parts without full HIP and NDT validation.
How much faster is 5-axis vs standard 3-axis machining for complex titanium aero parts?
5-axis single-setup machining cuts total production time by 40–60% compared to 3-axis multi-fixture milling. Eliminating repeated part flipping removes alignment errors that often scrap high-cost titanium billet stock, drastically lowering your reject rate.
Does Zorapid support rush aerospace prototype orders?
Yes. We offer expedited same-day SLM printing for single test articles and 3–4 day rush 5-axis CNC service for critical prototype hardware. Rush orders carry a 20–30% surcharge, and we prioritize all aerospace customer jobs over general industrial orders.
Quick Supplier Decision Flowchart (10 Second Reference)
- Lightweight lattice / internal channels + <80 units → SLM Titanium
- Solid load-bearing airframe hardware + >60 units + tight sealing tolerances → 5-Axis CNC Titanium
- Need prototype iteration first, then production batches → Zorapid Hybrid SLM + 5-Axis Workflow
- Primary flight critical structural parts requiring FAA compliance → 5-Axis CNC with full NDT inspection
